松下H-H014维修手册

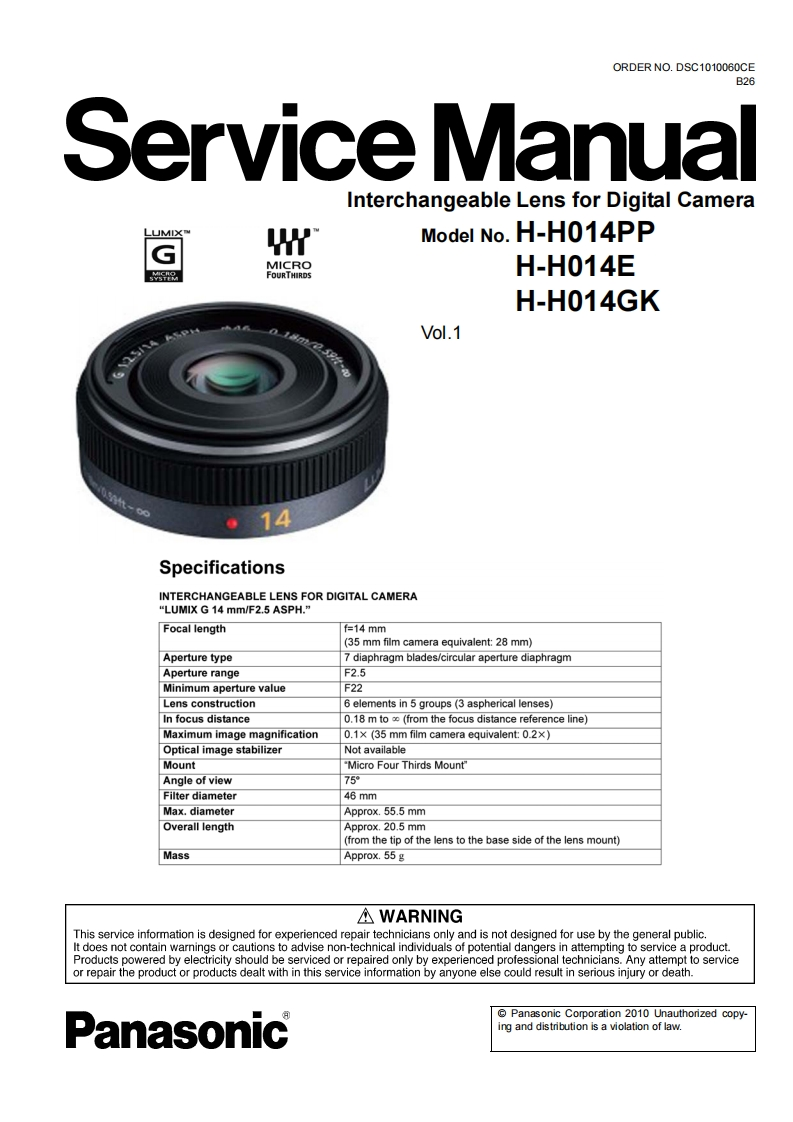

ORDER NO.DSC1010060CEB26Service ManualInterchangeable Lens for Digital CameraUMIXModel No.H-H014PPGMICROH-H014EFOURTHIRDSH-H014GKVol.114SpecificationsINTERCHANGEABLE LENS FOR DIGITAL CAMERA"LUMIX G 14 mm/F2.5 ASPH."Focal lengthf仁14mm(35 mm film camera equivalent:28 mm)Aperture type7 diaphragm blades/circular aperture diaphragmAperture rangeF2.5Minimum aperture valueF22Lens construction6 elements in 5 groups (3 aspherical lenses)In focus distance0.18 m to oo(from the focus distance reference line)Maximum image magnification0.1×(35 mm film camera equivalent:0.2×)Optical image stabilizerNot availableMount"Micro Four Thirds Mount"Angle of view759Filter diameter46 mmMax.diameterApprox.55.5 mmOverall lengthApprox.20.5 mm(from the tip of the lens to the base side of the lens mount)MassApprox.55 gAWARNINGThis service information is designed for experienced repair technicians only and is not designed for use by the general public.It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.Products powered by electricity should be serviced or repaired only by experienced professional technicians.Any attempt to serviceor repair the product or products dealt with in this service information by anyone else could result in serious injury or death.PanasonicPanasonic Corporation 2010 Unauthorized copy-ing and distribution is a violation of law.
