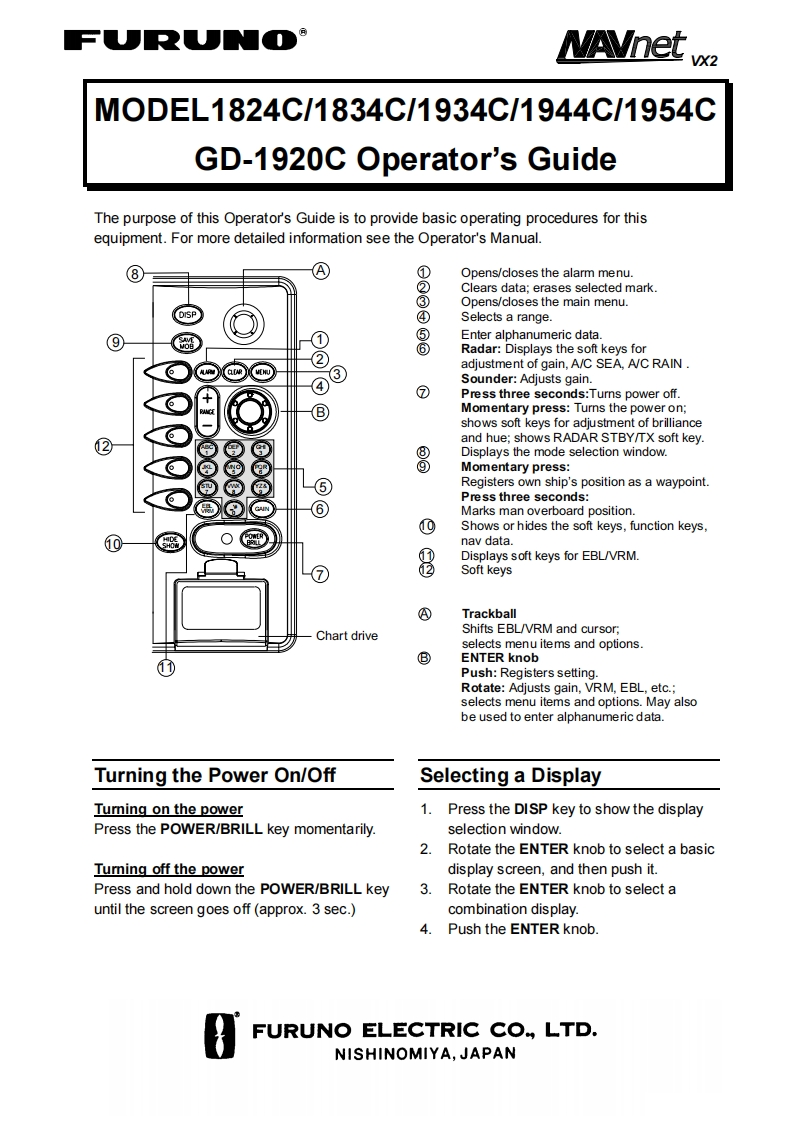

NAVnetMODEL1824C/1834C/1934C/1944C/1954CGD-1920C Operator's GuideThe purpose of this Operator's Guide is to provide basic operating procedures for thisequipment.For more detailed information see the Operator's Manual.8⑦Opens/closes the alarm menu.Clears data;erases selected mark.Opens/closes the main menu.DISP④Selects a range.⑤Enter alphanumeric data.②Radar:Displays the soft keys foradjustment of gain,A/C SEA,A/C RAIN④③Sounder:Adjusts gain.⑦Press three seconds:Turns power off.Momentary press:Turns the power on;shows soft keys for adjustment of brillianceand hue;shows RADAR STBY/TX soft key.⑧Displays the mode selection window.Momentary press:⑤Registers own ship's position as a waypoint.Press three seconds:GMarks man overboard position.Shows or hides the soft keys,function keys,nav data.Displays soft keys for EBL/VRM.⑦3Soft keysTrackballShifts EBL/VRM and cursor:Chart driveselects menu items and options.③ENTER knobPush:Registers setting.Rotate:Adjusts gain,VRM,EBL,etc.;selects menu items and options.May alsobe used to enter alphanumeric data.Turning the Power On/OffSelecting a DisplayTuming on the power1.Press the DISP key to show the displayPress the POWER/BRILL key momentarily.selection window.2Rotate the ENTER knob to select a basicTuming off the powerdisplay screen,and then push it.Press and hold down the POWER/BRILL key3.Rotate the ENTER knob to select auntil the screen goes off(approx.3 sec.)combination display.4.Push the ENTER knob.FURUNO ELECTRIC CO.,LTD.NISHINOMIYA,JAPAN
