日本古野FURUNO-225tss904_安装说明书

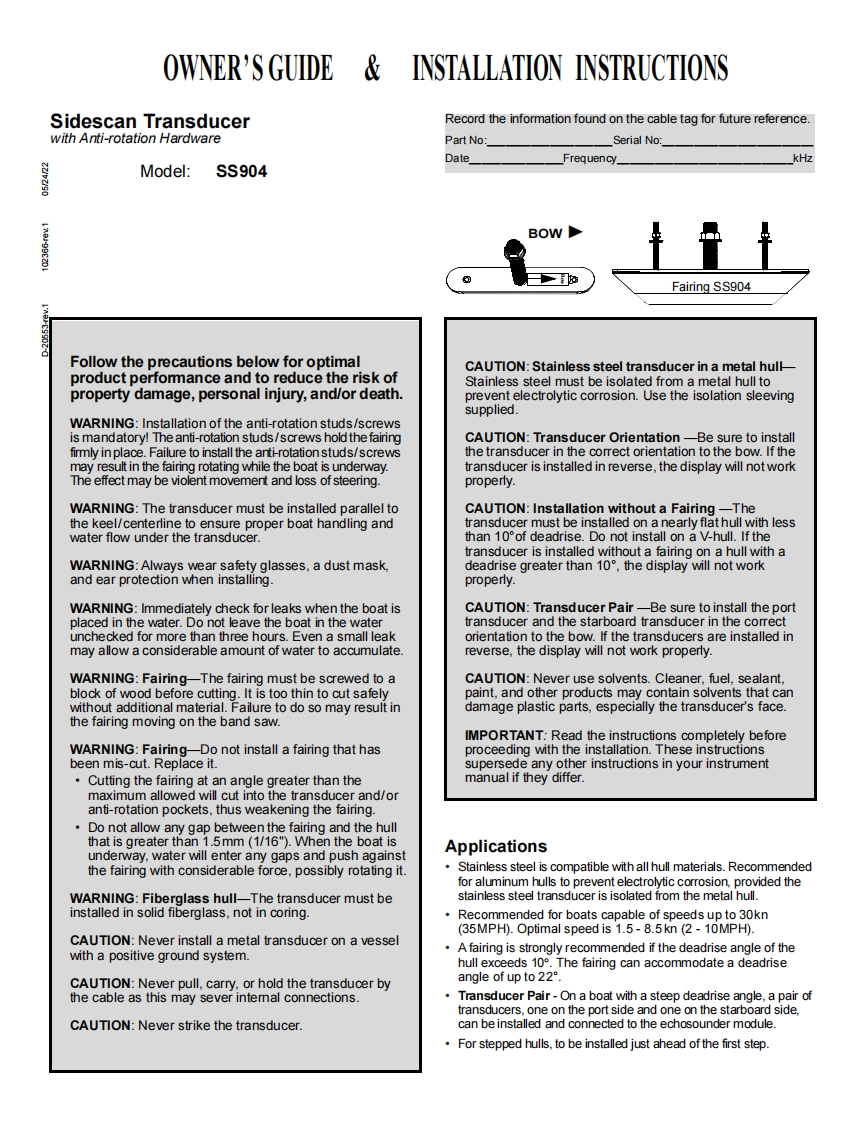

OWNER'S GUIDE installation InstructiOnsSidescan TransducerRecord the information found on the cable tag for future reference.with Anti-rotation HardwarePart No:Serial No:DateFrequency.kHzModel:SS904BOWFairing SS904Y5902dFollow the precautions below for optimalCAUTION:Stainless steel transducer in a metal hullproduct perfommance and to reduce the risk ofStainless steel must be isolated from a metal hull toproperty damage,personal injury,and/or death.prevent electrolytic corrosion.Use the isolation sleevingsupplied.WARNING:Installation of the anti-rotation studs/screwsis mandatory!The anti-rotation studs/screws hold the fairingCAUTION:Transducer Orientation-Be sure to installfirmly inplace.Failure to install the anti-rotation studs/screwsthe transducer in the correct orientation to the bow.If themay result in the fairing rotating while the boat is underway.transducer is installed in reverse,the display will not workThe effect may be violent movement and loss of steering.properly.WARNING:The transducer must be installed parallel toCAUTION:Installation without a Fairing-Thethe keel/centerline to ensure proper boat handling andtransducer must be installed on a nearly flat hull with lesswater flow under the transducer.than 10of deadrise.Do not install on a V-hull.If thetransducer is installed without a fairing on a hull with aWARNING:Always wear safety glasses,a dust mask,deadrise greater than 10,the display will not workand ear protection when installing.properly.WARNING:Immediately check for leaks when the boat isCAUTION:Transducer Pair-Be sure to install the portplaced in the water.Do not leave the boat in the watertransducer and the starboard transducer in the correctunchecked for more than three hours.Even a small leakorientation to the bow.If the transducers are installed inmay allow a considerable amount of water to accumulate.reverse,the display will not work properly.WARNING:Fairing-The fairing must be screwed to aCAUTION:Never use solvents.Cleaner,fuel,sealant,block of wood before cutting.It is too thin to cut safelypaint,and other products may contain solvents that canwithout additional material.Failure to do so may result indamage plastic parts,especially the transducer's face.the fairing moving on the band saw.IMPORTANT:Read the instructions completely beforeWARNING:Fairing-Do not install a fairing that hasproceeding with the installation.These instructionsbeen mis-cut.Replace it.supersede any other instructions in your instrumentCutting the fairing at an angle greater than themanual if they differ.maximum allowed will cut into the transducer and/oranti-rotation pockets,thus weakening the fairing.Do not allow any gap between the fairing and the hullthat is greater than 1.5mm(1/16").When the boat isApplicationsunderway,water will enter any gaps and push againstthe fairing with considerable force,possibly rotating it.Stainless steel is compatible with all hull materials.Recommendedfor aluminum hulls to prevent electrolytic corrosion,provided
