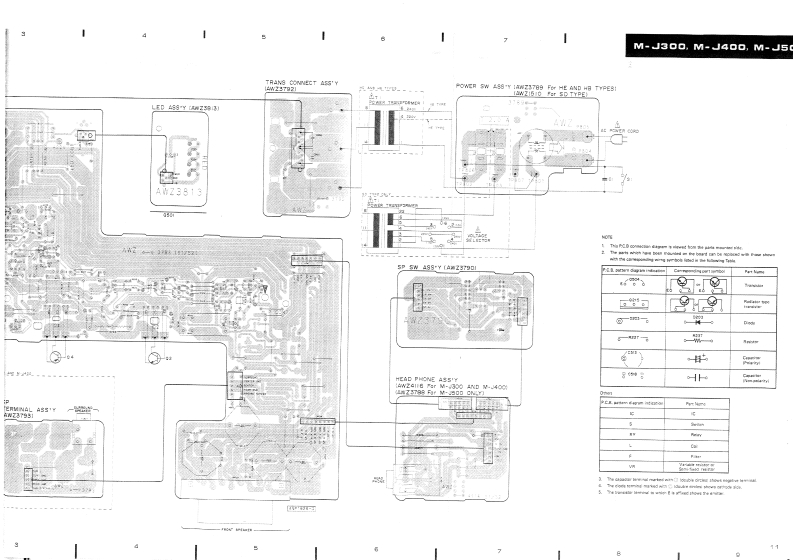

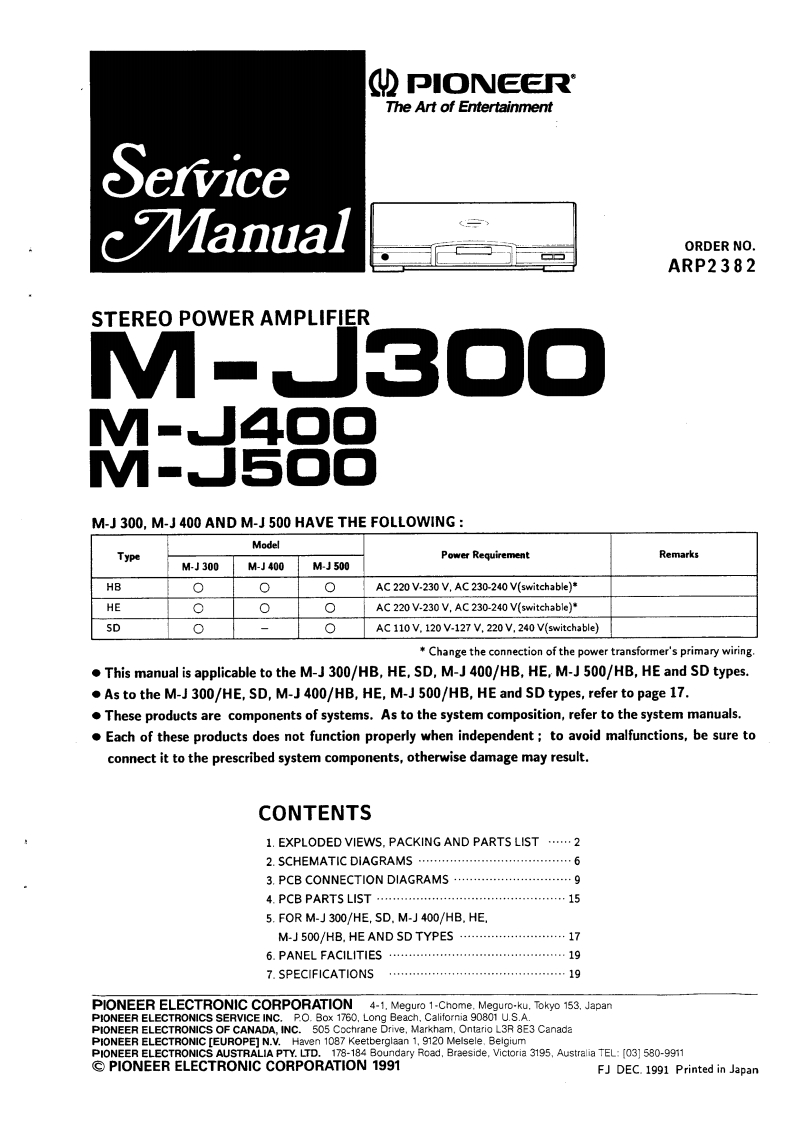

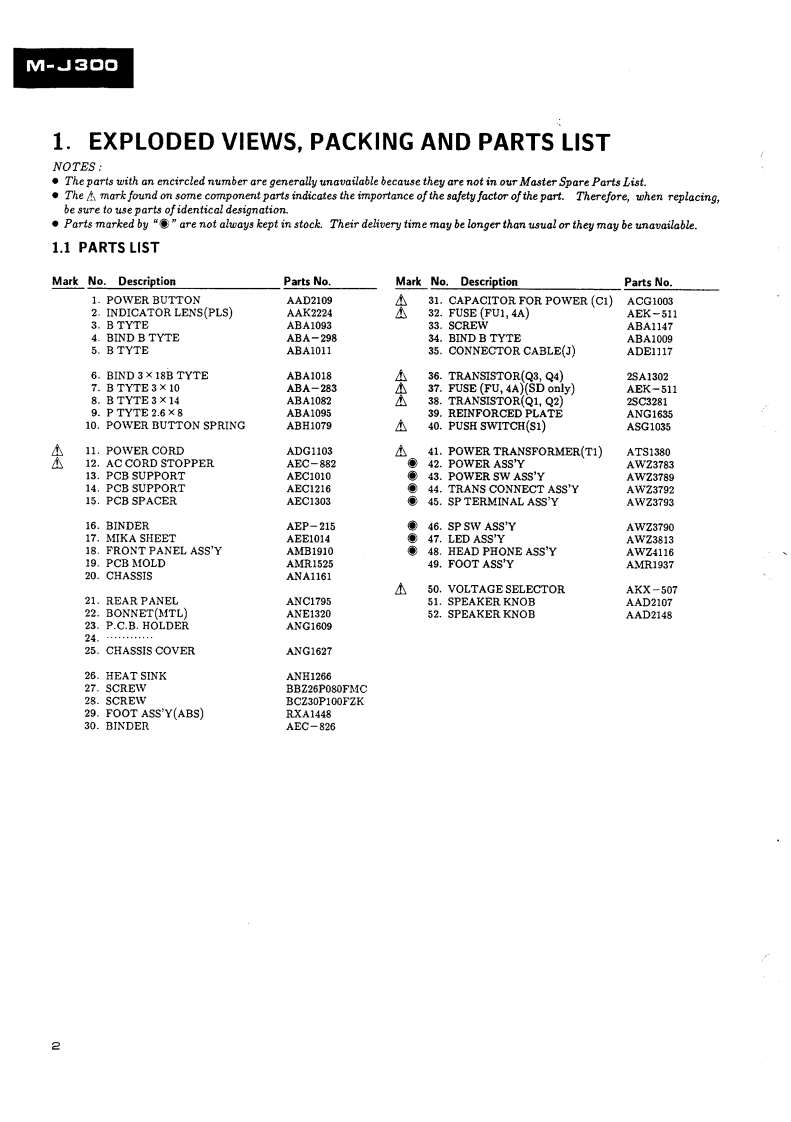

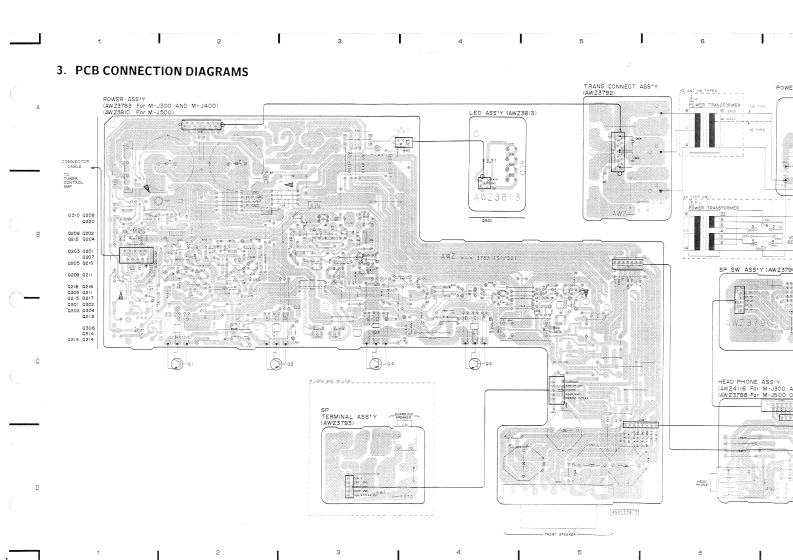

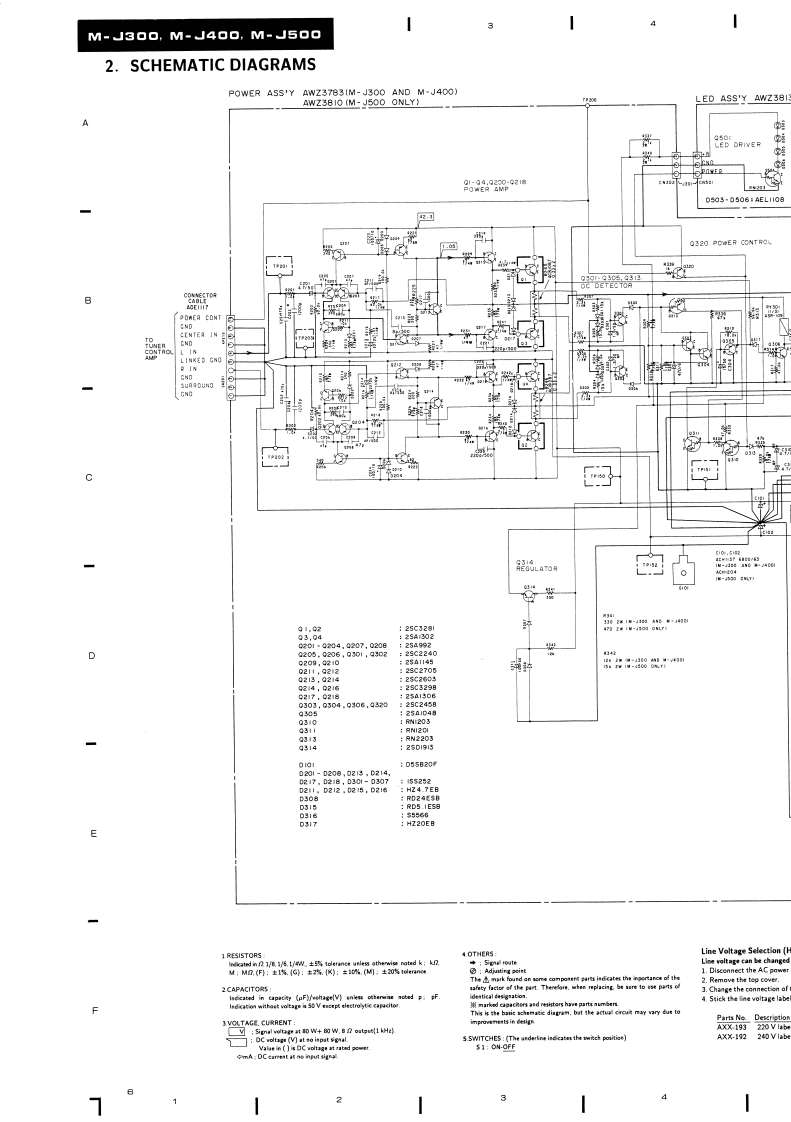

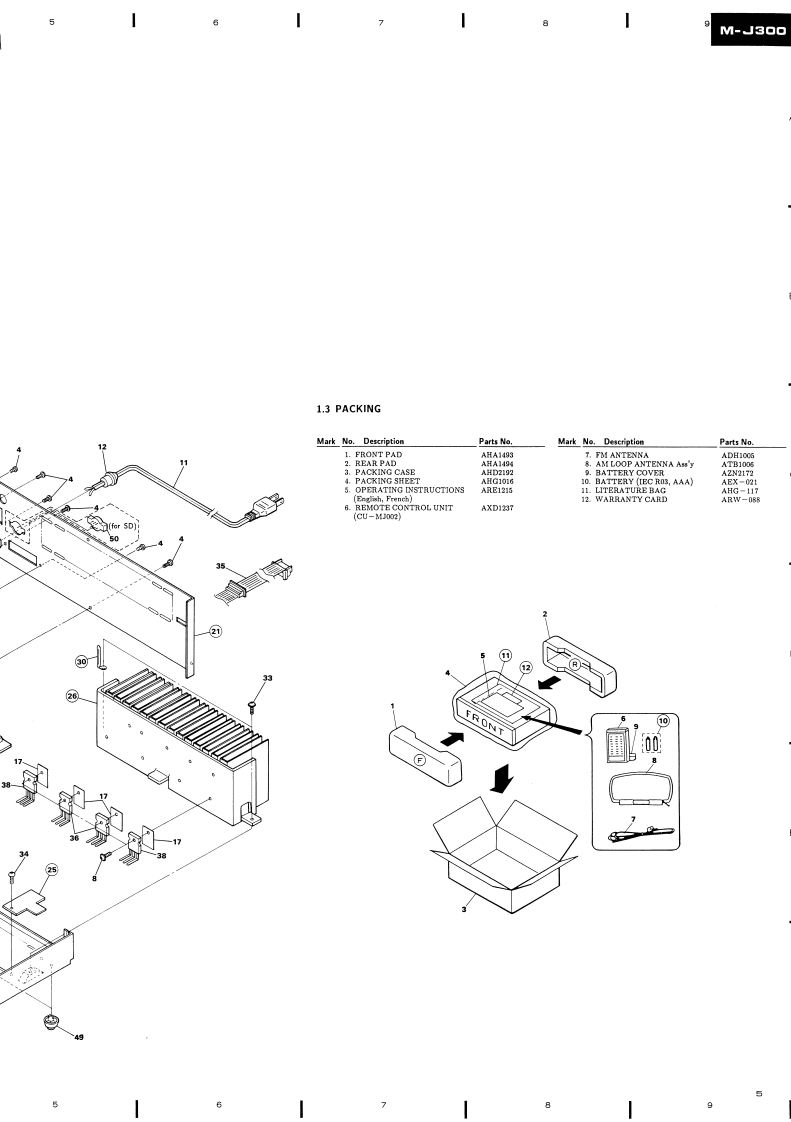

PIONEERThe Art of EntertainmentServicecManualORDER NO.ARP2382STEREO POWER AMPLIFIERM-J300MJ8品M-J 300,M-J 400 AND M-J 500 HAVE THE FOLLOWINGModelTypePower RequirementRemarksM-J300M-J400M-J500HBO00AC 220 V-230 V.AC 230-240 V(switchable)*HE00OAC 220 V-230 V,AC 230-240 V(switchable)*SD00AC 110 V.120 V-127 V,220 V,240 V(switchable)Change the connection of the power transformer's primary wiring.This manual is applicable to the M-J 300/HB,HE,SD,M-J 400/HB.HE,M-J 500/HB,HE and SD types.As to the M-J 300/HE,SD,M-J 400/HB,HE,M-J 500/HB,HE and SD types,refer to page 17..These products are components of systems.As to the system composition,refer to the system manuals.Each of these products does not function properly when independent;to avoid malfunctions,be sure toconnect it to the prescribed system components,otherwise damage may result.CONTENTS1.EXPLODED VIEWS,PACKING AND PARTS LIST ......22.SCHEMATIC DIAGRAMS..63.PCB CONNECTION DIAGRAMS94.PCB PARTS LIST…155.FOR M-J 300/HE,SD.M-J 400/HB.HE,M-J 500/HB.HE AND SD TYPES...-----.........-176.PANEL FACILITIES......197.SPECIFICATIONS11…19PIONEER ELECTRONIC CORPORATION 4-1.Meguro 1-Cnome.Meguro-ku.Tokyo 153.JapanPIONEER ELECTRONICS SERVICE INC.P.O.Box 1760,Long Beach,California 90801 U.S.APIONEER ELECTRONICS OF CANADA,INC.505 Cochrane Drive,Markham,Ontario L3R 8E3 CanadaPIONEER ELECTRONIC [EUROPE]N.V.Haven 1087 Keetberglaan 1,9120 Melsele.BelgiumPIONEER ELECTRONICS AUSTRALIA PTY.LTD.178-184 Boundary Road,Braeside,Victoria 3195,Australia TEL:[03]580-9911PIONEER ELECTRONIC CORPORATION 1991FJ DEC.1991 Printed in Japan
