Pioneer-m-j200-SM维修电器原理图手册

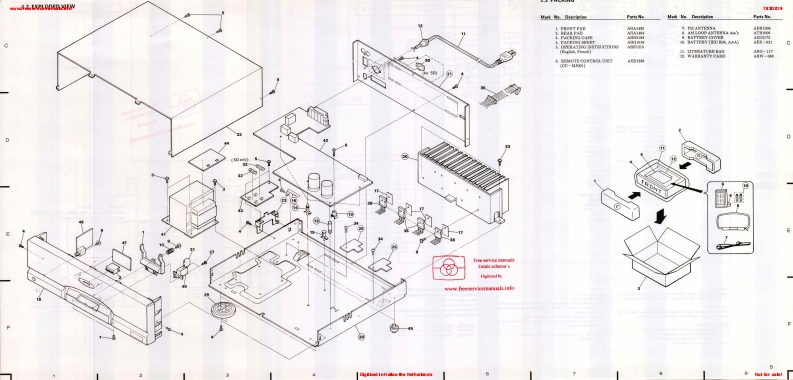

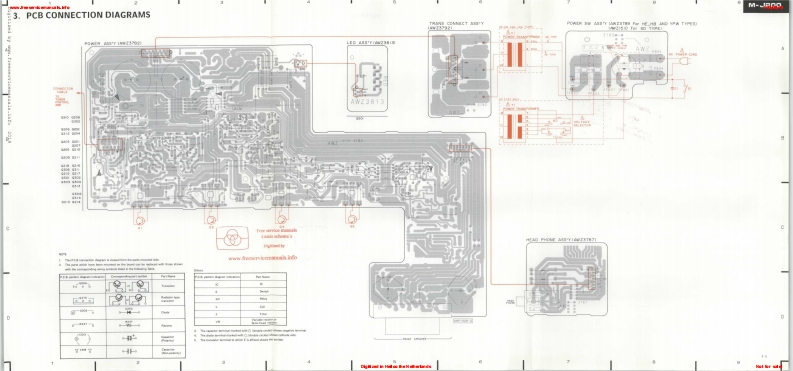

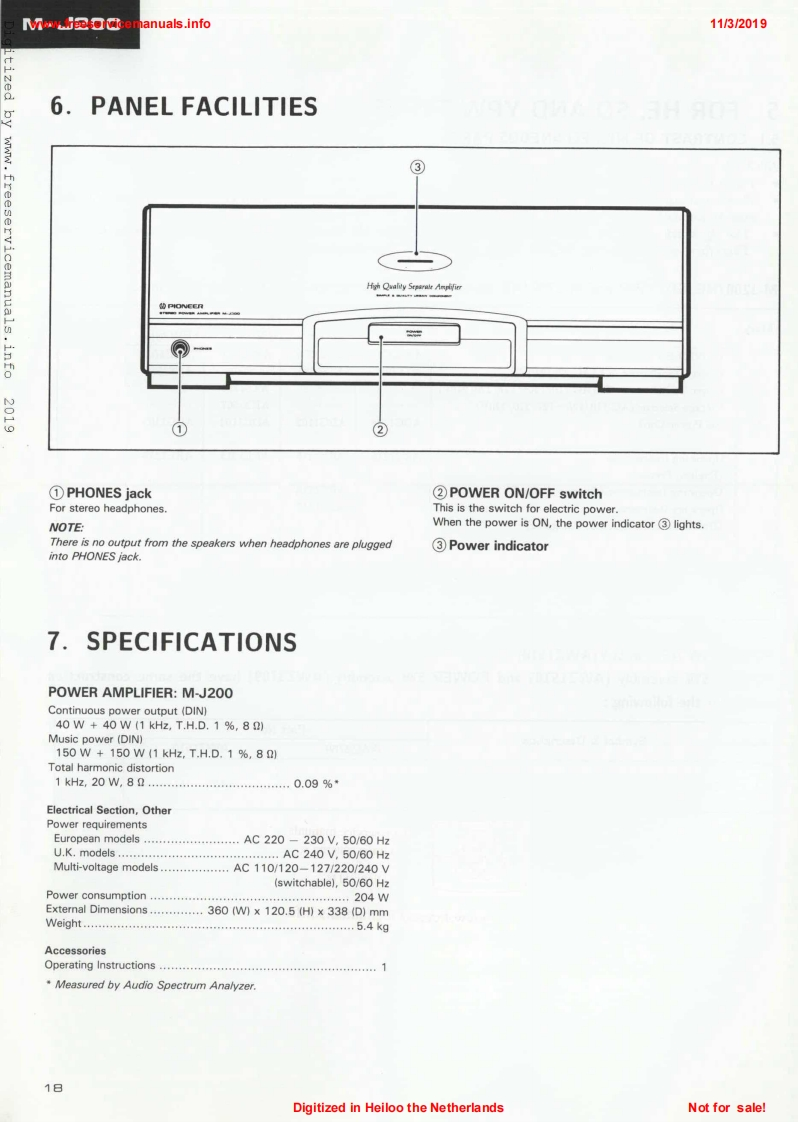

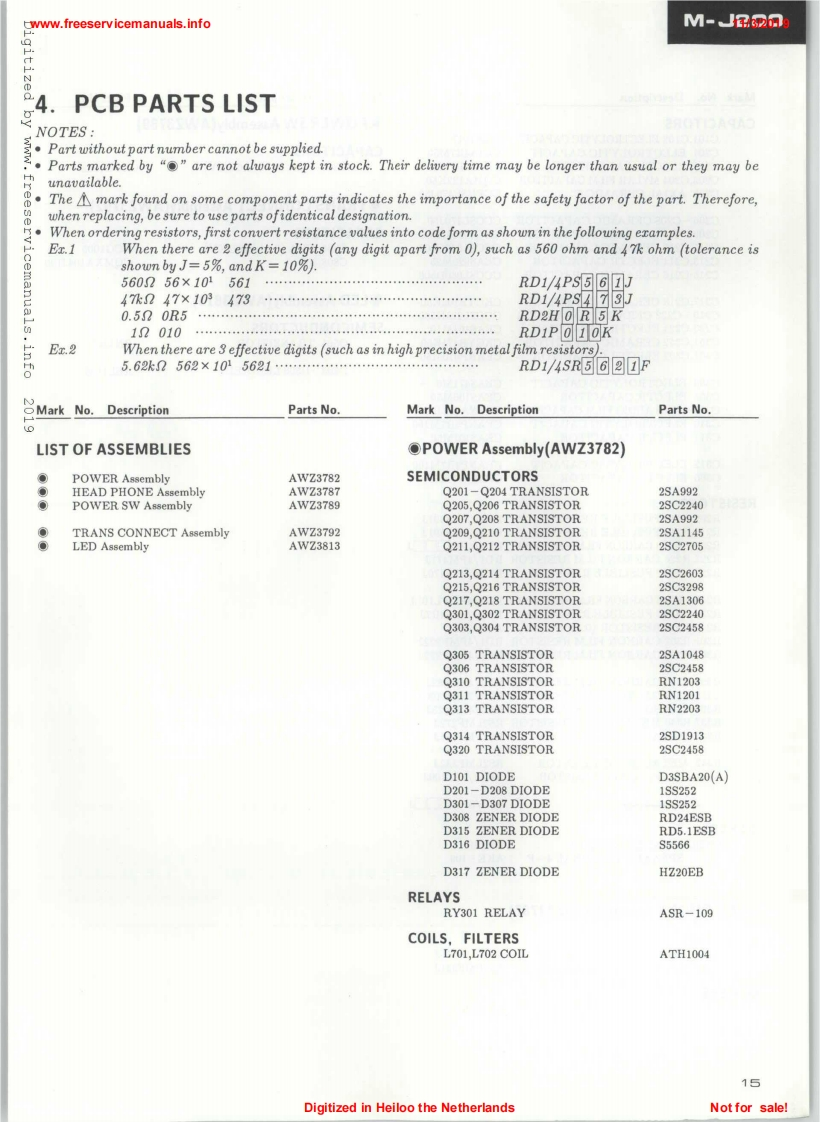

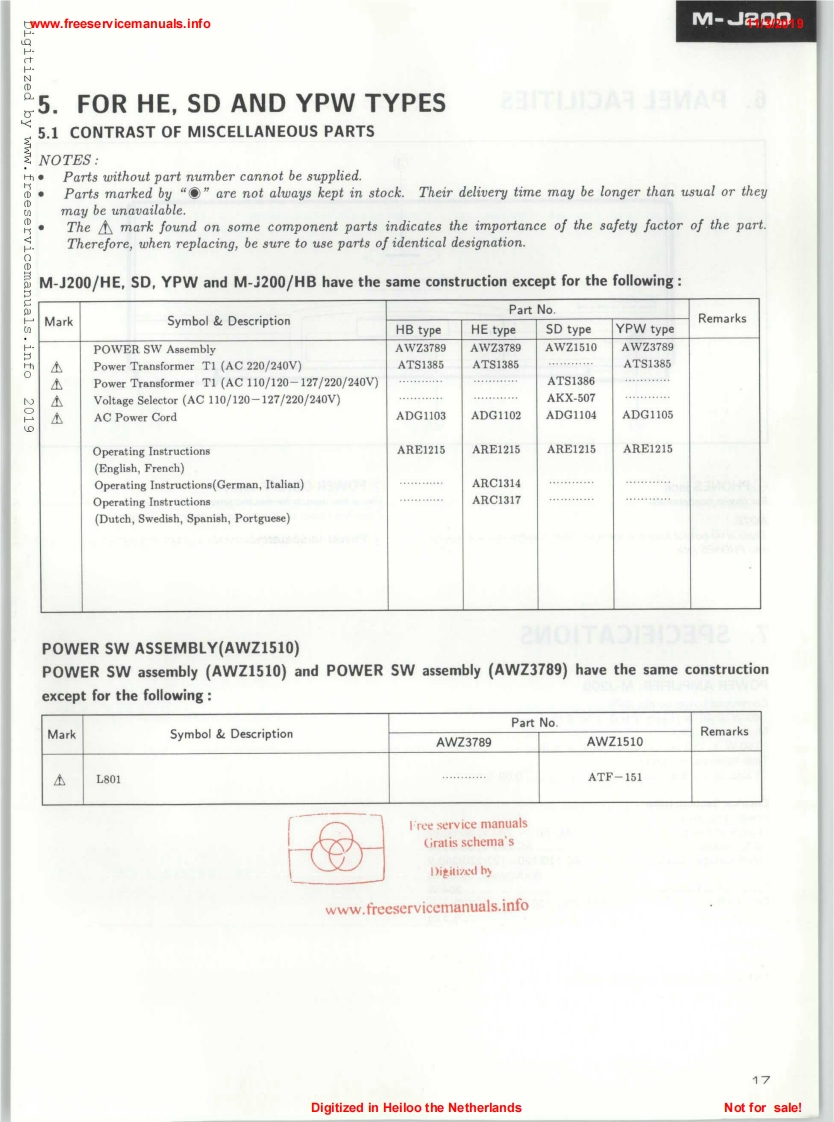

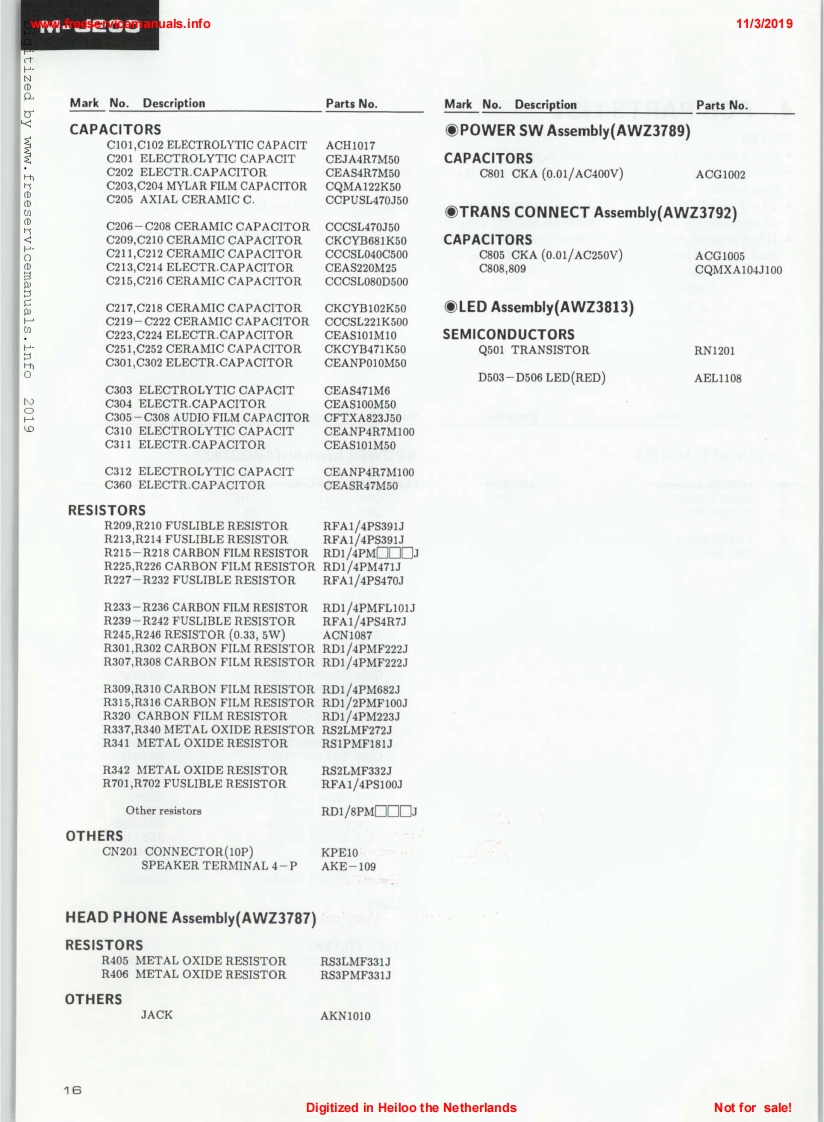

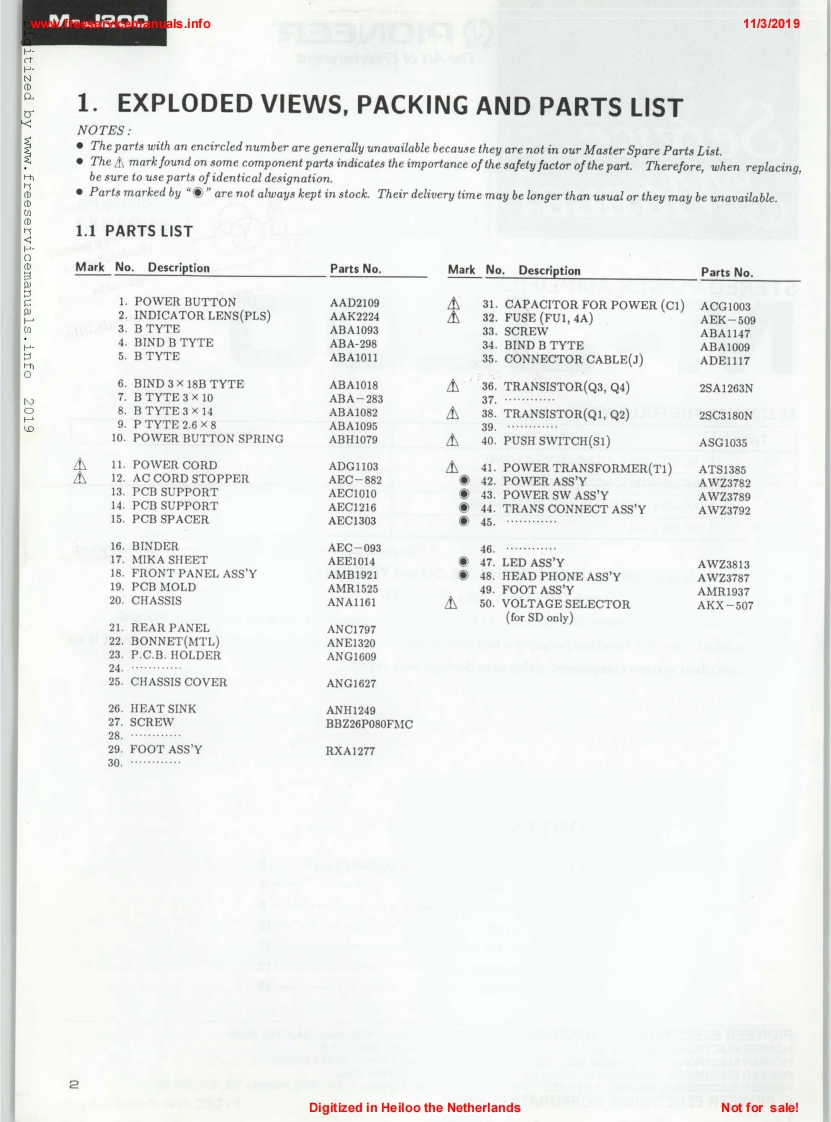

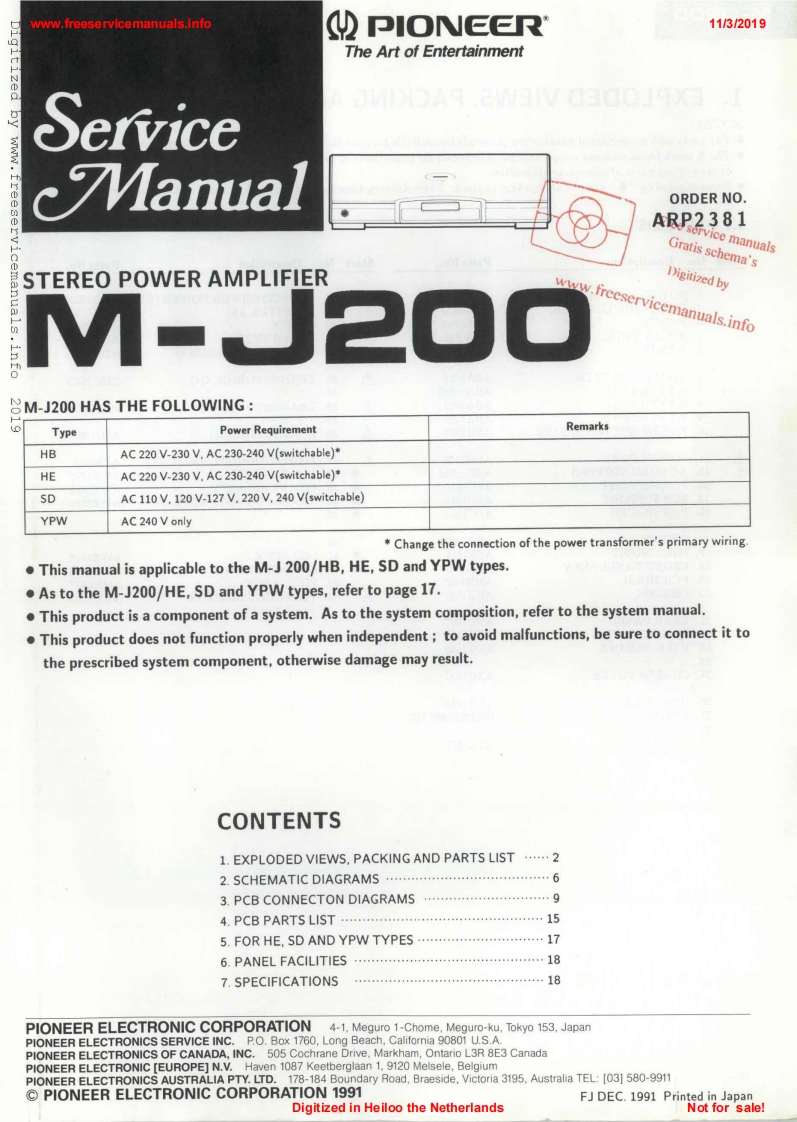

www.freeservicemanuals.infoPIONEER11/3/2019The Art of EntertainmentitizedbyServicewww.freeser7ManualApORDER NO.cemaGratis schema'sSTEREO POWER AMPLIFIERDigitized byM-J200w.freeservicemanuals.info0M-J200 HAS THE FOLLOWING:oTypePower RequirementRemarksHBAC 220 V-230 V.AC 230-240 V(switchable)*HEAC 220 V-230 V.AC 230-240 V(switchable)*SDAC 110 V,120 V-127 V.220 V,240 V(switchable)YPWAC 240 V onlyChange the connection of the power transformer's primary wiring.This manual is applicable to the M-J 200/HB,HE,SD and YPW types..As to the M-J200/HE,SD and YPW types,refer to page 17.This product is a component of a system.As to the system composition,refer to the system manual.This product does not function properly when independent;to avoid malfunctions,be sure to connect it tothe prescribed system component,otherwise damage may result.CONTENTS1.EXPLODED VIEWS,PACKING AND PARTS LIST ......22.SCHEMATIC DIAGRAMS.............63.PCB CONNECTON DIAGRAMS4444…94.PCB PARTS LIST…155.FOR HE,SD AND YPW TYPES......176.PANEL FACILITIES.187.SPECIFICATIONS…18PIONEER ELECTRONIC CORPORATION 4-1.Meguro 1-Chome,Meguro-ku,Tokyo 153.JapanPIONEER ELECTRONICS SERVICE INC.P.O.Box 1760,Long Beach,California 90801 U.S.A.PIONEER ELECTRONICS OF CANADA,INC.505 Cochrane Drive,Markham,Ontario L3R 8E3 CanadaPIONEER ELECTRONIC [EUROPE]N.V.Haven 1087 Keetberglaan 1,9120 Melsele,BelgiumPIONEER ELECTRONICS AUSTRALIA PTY.LTD.178-184 Boundary Road,Braeside,Victoria 3195.Australia TEL:[03]580-9911PIONEER ELECTRONIC CORPORATION 1991FJ DEC.1991 Printed in JapanDigitized in Heiloo the NetherlandsNot for sale!
