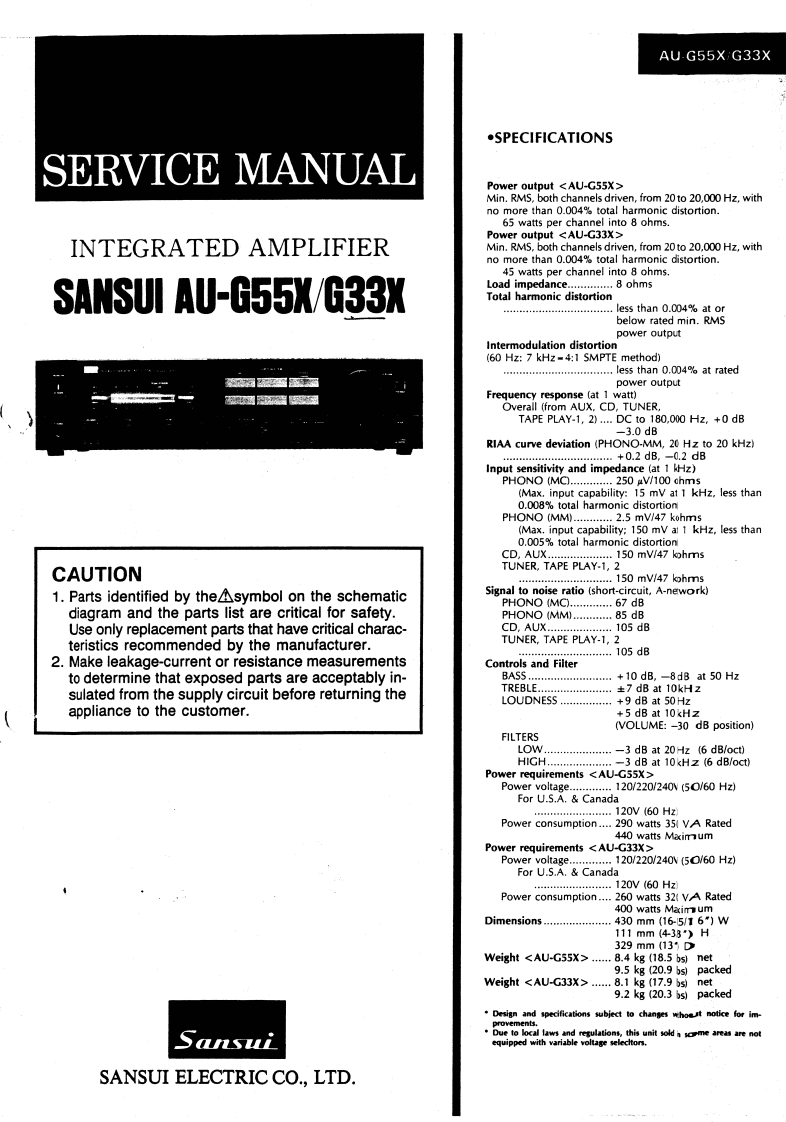

AU-G55X/G33X●SPECIFICATIONSSERVICE MANUALPower output Min.RMS,both channels driven,from 20 to 20,000 Hz.withno more than 0.004%total harmonic distortion.65 watts per channel into 8 ohms.Power output INTEGRATED AMPLIFIERMin.RMS,both channels driven,from 20 to 20,000 Hz,withno more than 0.004%total harmonic distortion.45 watts per channel into 8 ohms.SANSUI AU-G55X/G33XLoad impedance..............8 ohmsTotal harmonic distortion.......less than 0.004%at orbelow rated min.RMSpower outputIntermodulation distortion(60 Hz:7 kHz-4:1 SMPTE method)......less than 0.004%at rated网盈网power output☒网Frequency response (at 1 watt)Overall (from AUX.CD,TUNER,TAPE PLAY-1,2)....DC to 180,000 Hz,+0 dB-3.0dBRIAA curve deviation (PHONO-MM,20 Hz to 20 kHz)44444…+0.2dB,-0.2dBInput sensitivity and impedance (at 1 kHz)PHONO (MC).............250 aV/100 ahms(Max.input capability:15 mV at 1 kHz,less than0.008%total harmonic distortionPHONO (MM)............2.5 mV/47 kohms(Max.input capability:150 mV a 1 kHz,less than0.005%total harmonic distortionCD,AUX....TUNER,TAPE PLAY-1,2150 mV/47 kohmsCAUTION150 mV/47 kohms1.Parts identified by thesymbol on the schematicSignal to noise ratio (short-circuit,A-nework)PHONO (MC).............67 dBdiagram and the parts list are critical for safety.PHONO (MM).85 dBUse only replacement parts that have critical charac-CD,AUX...105dBteristics recommended by the manufacturer.TUNER,TAPE PLAY-1,22.Make leakage-current or resistance measurements…105dBControls and Filterto determine that exposed parts are acceptably in-TREBLE+.0dB8dg at 50 HzBASS.sulated from the supply circuit before returning the±7dBat10kHzLOUDNESS........+9 dB at 50 Hzappliance to the customer.+5 dB at 10kHZ(VOLUME:-30 dB position)FILTERSLOW..-3 dB at 20Hz (6 dB/oct)HIGH......-3 dB at 10kHz (6 dB/oct)Power requirements Power voltage.....120/220/240(50/60HzFor U.S.A.Canada…120W(60HzPower consumption....290 watts 35VA Rated440 watts MaimumPower requirements Power voltage.............120/220/240V (50/60 Hz)For U.S.A.Canada…120V(60HzPower consumption....260 watts 32(VA Rated400 watts Maim umDimen5ions.......430mm(16-5/16)W111mm(433)H329mm(13DWeight ......8.4 kg (18.5 bs)net9.5 kg (20.9 bs)packedWeight ......8.1 kg (17.9 bs)net9.2 kg (20.3 bs)packed.Design and specifications subject to changes whoet notice for im-Sansuiutioni unit soldre notequipped with variable voltage selecltors.SANSUI ELECTRIC CO.,LTD.
