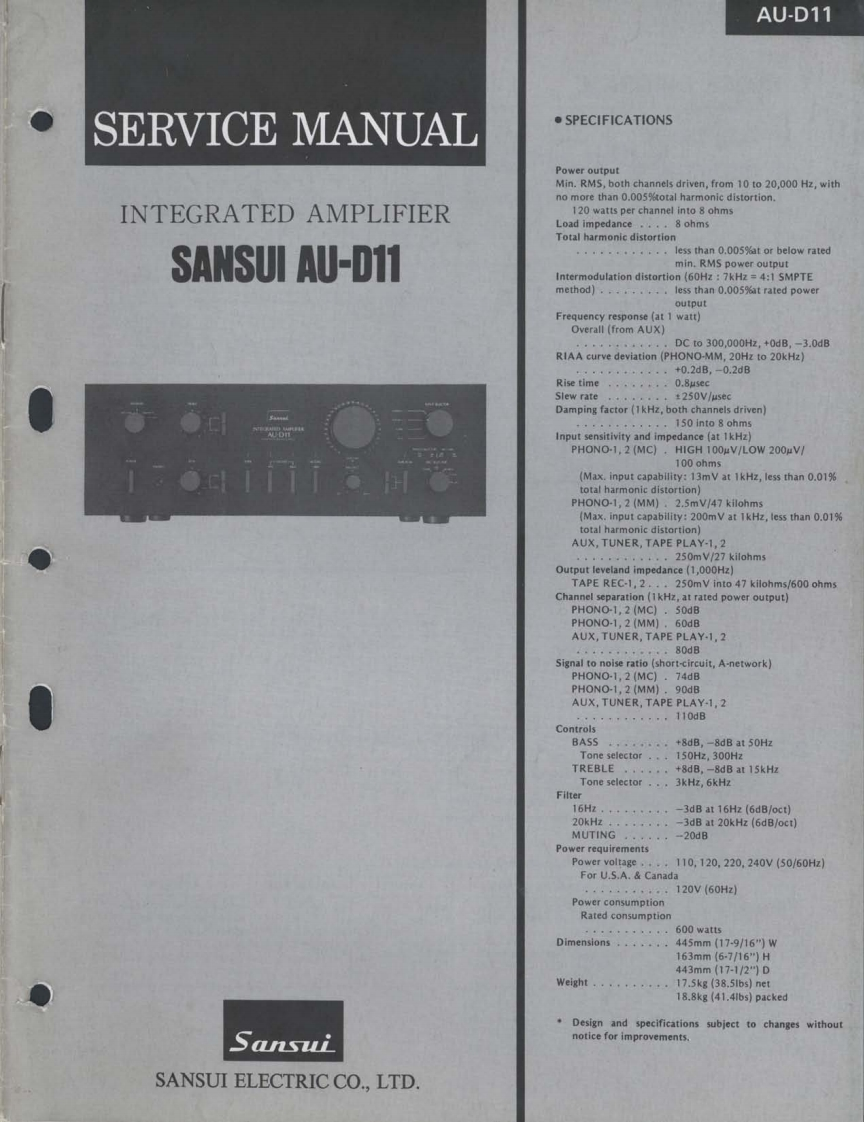

AU-D11SERVICE MANUAL●SPECIFICATIONSPower outputMin.RMS,both channels driven,from 10 to 20,000 Hz,withno more than 0.005%total harmonic distortion.INTEGRATED AMPLIFIER120 watts per channel into 8 ohmsLoad impedance....8 ohmsTotal harmonic distortionSANSUI AU-D11...........less than 0.005%at or below ratedmin.RMS power outputIntermodulation distortion(60Hz 7kHz =4:1 SMPTEmethod)......less than 0.005%at rated poweroutputFrequency response (at 1 watt)Overall (from AUX),···.,,·DCto300,000H2,+0dB,-3.0dBRIAA curve deviation (PHONO-MM,20Hz to 20kHz).,+0.2dB,-0.2dBRise time0.8usecSlew rate.....4250V/usecDamping factor (1kHz,both channels driven)··,,.150into8ohmsInput sensitivity and impedance (at IkHz)PHONO-1,2(MC).HIGH 100uV/LOW 200uV/i0i0i。可2100 ohms(Max.input capability:13mV at 1kHz,less than 0.01%total harmonic distortion)PHONO-1,2 (MM).2.5mV/47 kilohms(Max.input capability:200mV at IkHz,less than 0.01%total harmonic distortion)AUX,TUNER,TAPE PLAY-1,2...250mV/27 kilohmsOutput leveland impedance(1,000Hz)TAPE REC-1,2...250mV into 47 kilohms/600 ohmsChannel separation(1kHz,at rated power output)PHONO-1,2 (MC).50dBPHONO-1,2(MM).60dBAUX,TUNER,TAPE PLAY-1,2..80dBSignal to noise ratio (short-circuit,A-network)PHONO-1,2(MC).74dBPHONO-1,2(MM).90dBAUX.TUNER,TAPE PLAY-1.2·,·,110dBControlsBASS,,.,..。+8dB,-8dBat50H2Tone selector150Hz,300HzTREBLE+8dB,-8dB at 15kHzTone selector。·,3kHz,6kHzFilter16Hz,-3dB at 16Hz(6dB/oct)20kHz-3dB at 20kHz (6dB/oct)MUTING-20d8Power requirementsPower voltage,..,110,120,220,240V(50/60H)For U.S.A.Canada··:,120V(60H2Power consumptionRated consumption600 wattsDimensions445mm(17-9/16)W163mm(6-716)H443mm(17-1/2)DWeight..17.5kg(38.51bs)net18.8kg (41.4Ibs)packedDesign and specifications subject to changes withoutSansuinotice for improvements.SANSUI ELECTRIC CO.,LTD.
