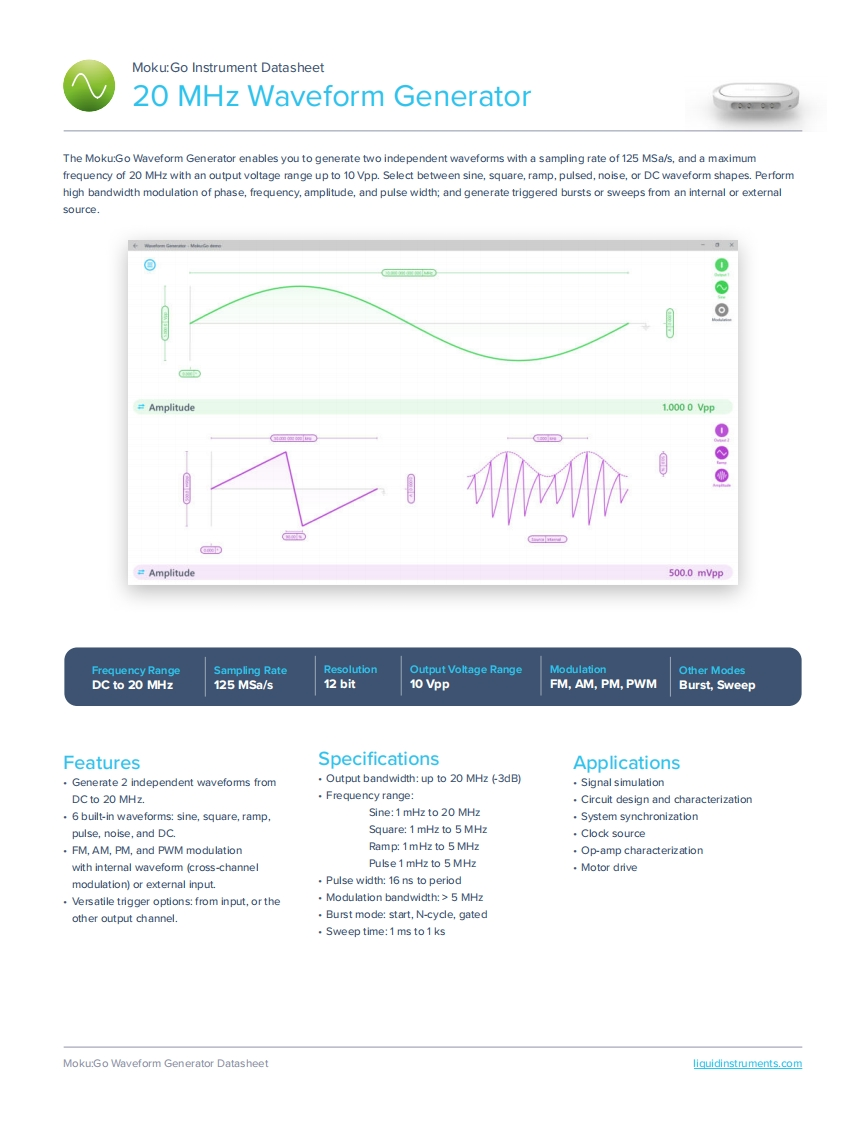

Moku:Go Instrument Datasheet20 MHz Waveform GeneratorThe Moku:Go Waveform Generator enables you to generate two independent waveforms with a sampling rate of 125 MSa/s,and a maximumfrequency of 20 MHz with an output voltage range up to 10 Vpp.Select between sine,square,ramp,pulsed,noise,or DC waveform shapes.Performhigh bandwidth modulation of phase,frequency,amplitude,and pulse width;and generate triggered bursts or sweeps from an internal or externalsource.⊙=Amplitude1.0000Vpp0=Amplitude500.0 mVppFrequency RangeSampling RateResolutionOutput Voltage RangeModulationOther ModesDC to 20 MHz125 MSa/s12 bit10 VppFM.AM.PM.PWMBurst,SweepFeaturesSpecificationsApplicationsGenerate 2 independent waveforms fromOutput bandwidth:up to 20 MHz (3dB)Signal simulationDC to 20 MHz.·Frequency range:Circuit design and characterization6 built-in waveforms:sine,square,ramp,Sine:1 mHz to 20 MHzSystem synchronizationpulse,noise,and DC.Square:1 mHz to 5 MHzClock sourceFM,AM,PM,and PWM modulationRamp:1mHz to 5 MHzOp-amp characterizationwith internal waveform (cross-channelPulse 1 mHz to 5 MHzMotor drivemodulation)or external input.Pulse width:16 ns to periodVersatile trigger options:from input,or theModulation bandwidth:5 MHzother output channel.Burst mode:start,N-cycle,gatedSweep time:1 ms to 1 ksMoku:Go Waveform Generator Datasheetliquidinstruments.com
