雅马哈Yamaha_RBX774-_RBX775_Bass_Service_Manual维修手册含电器原理图

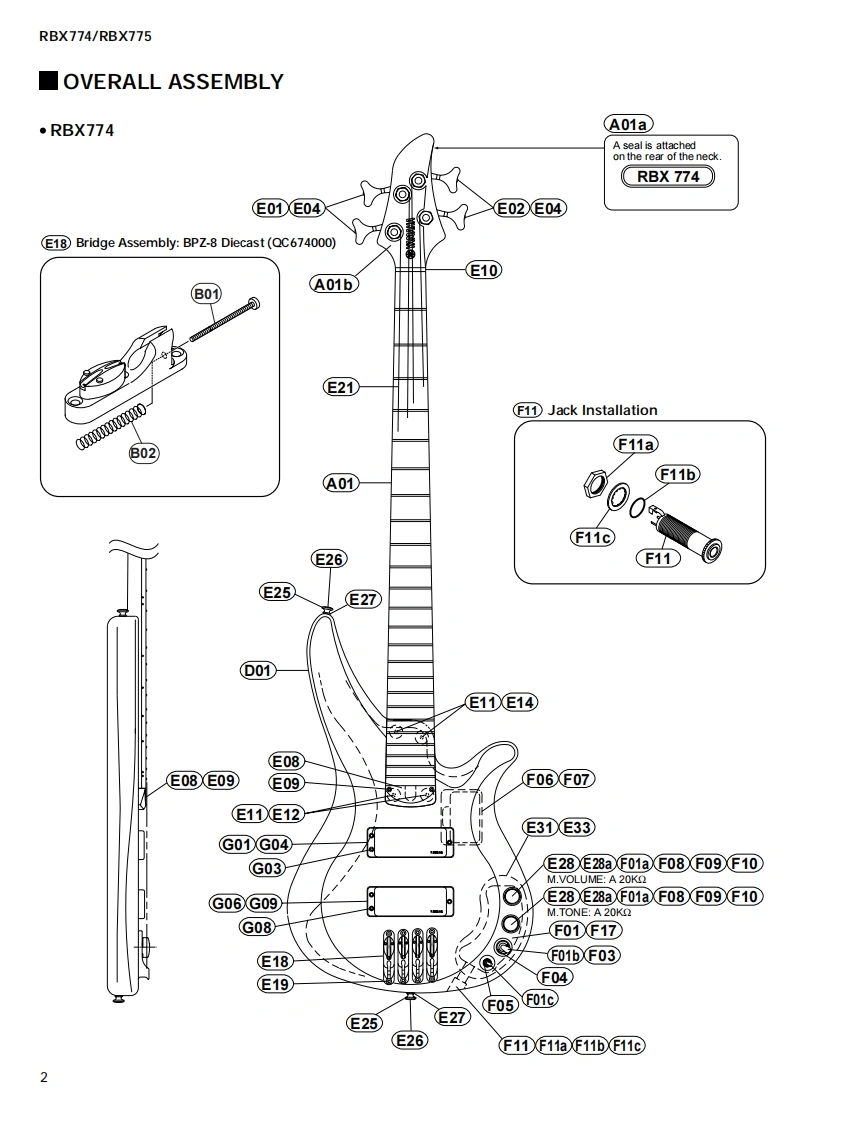

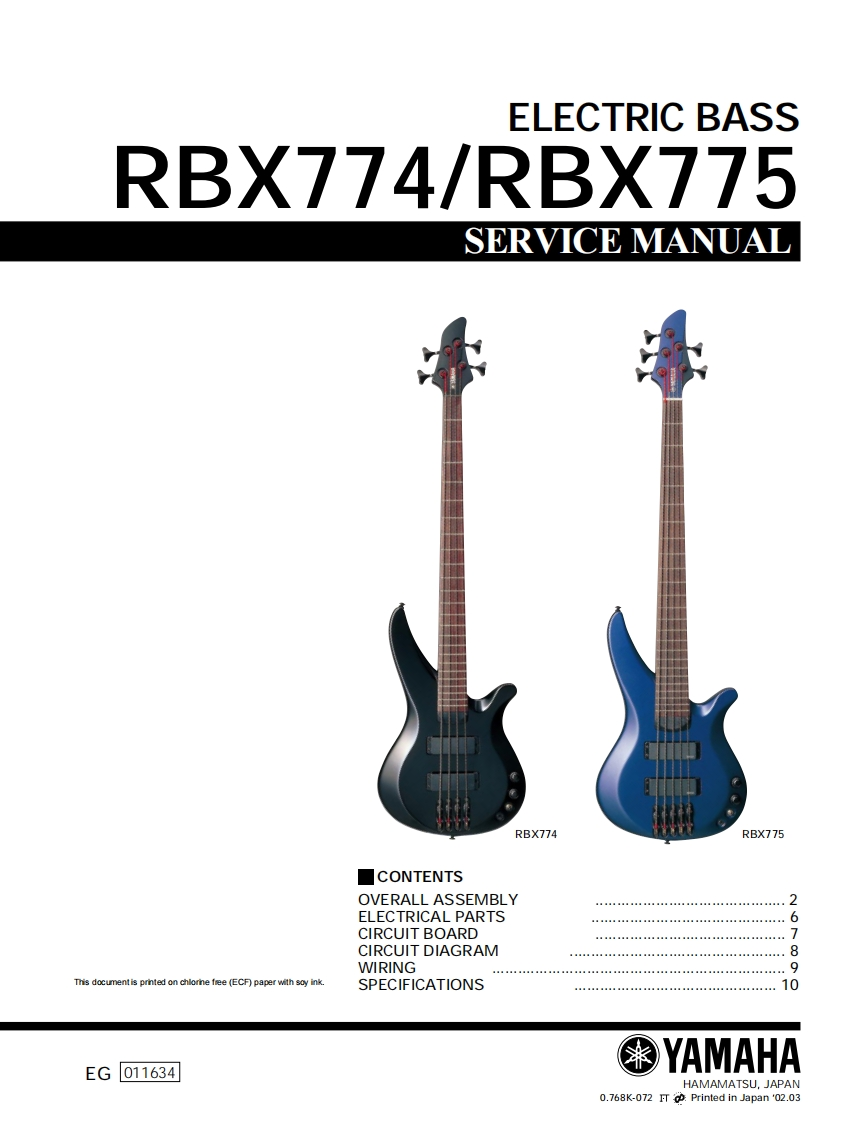

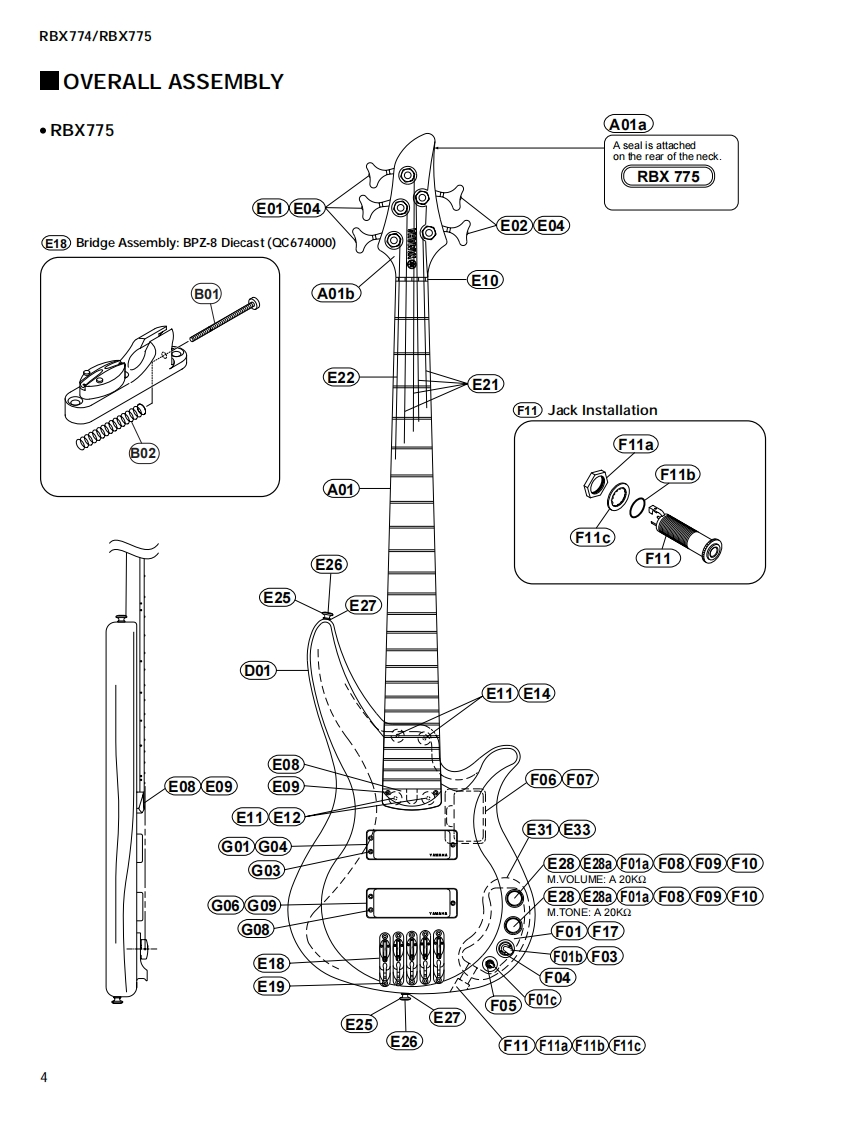

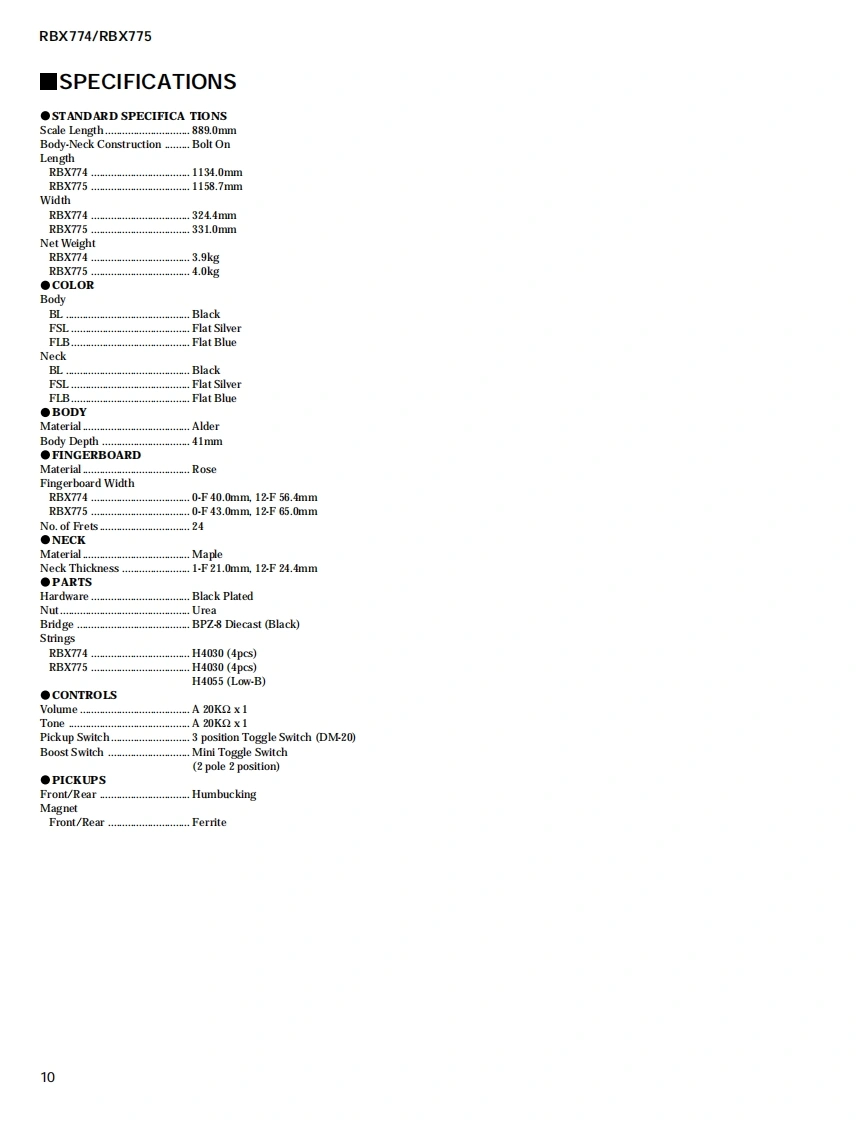

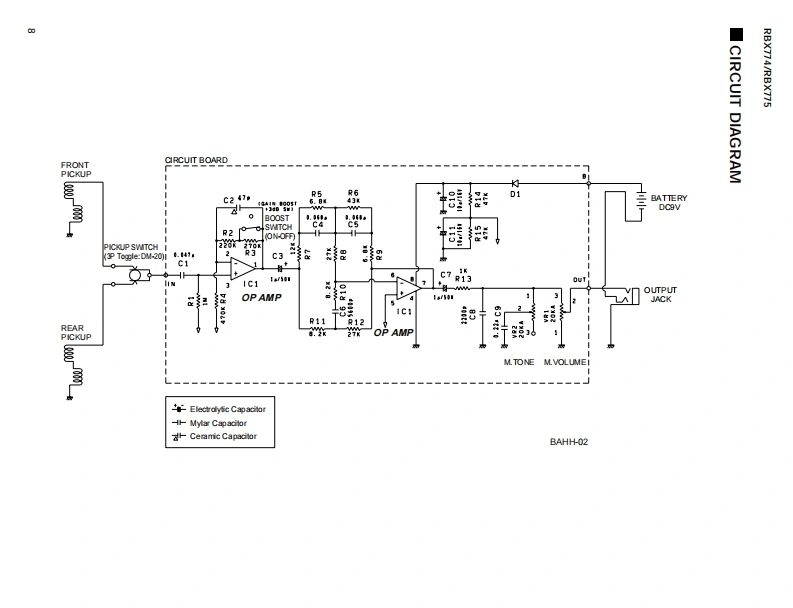

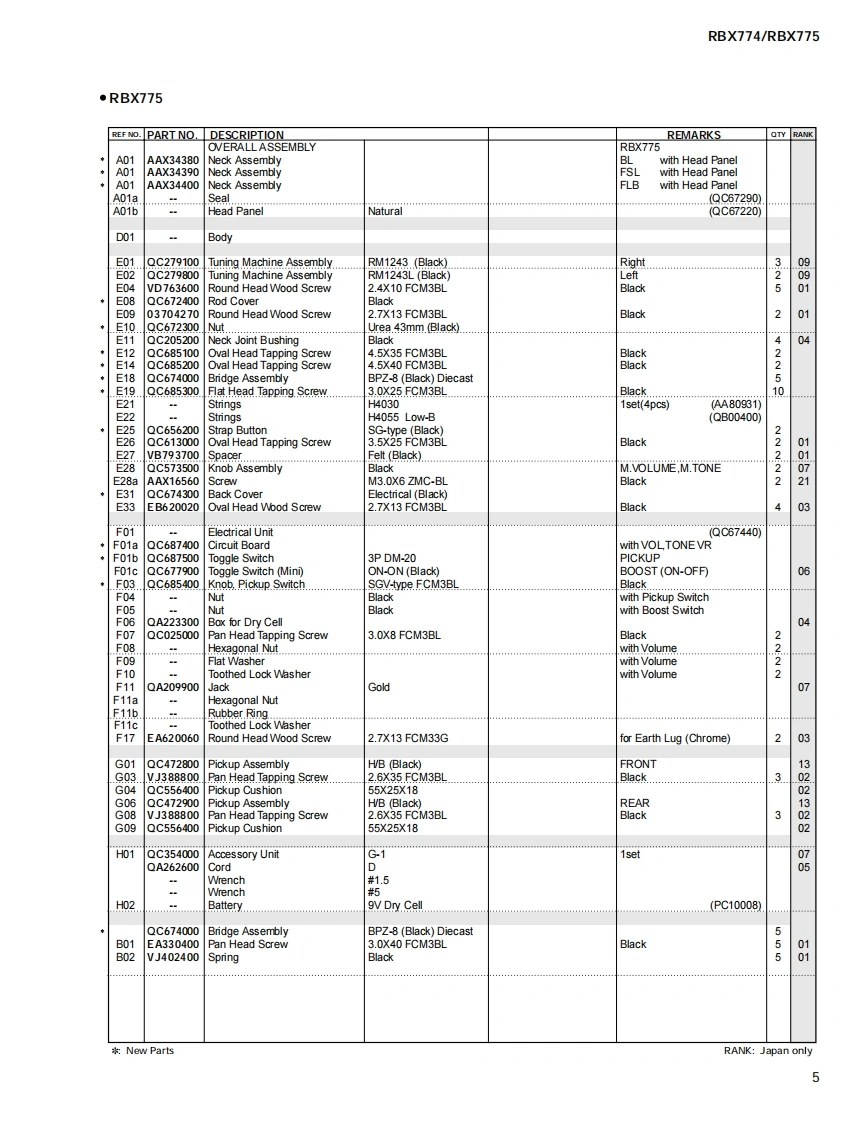

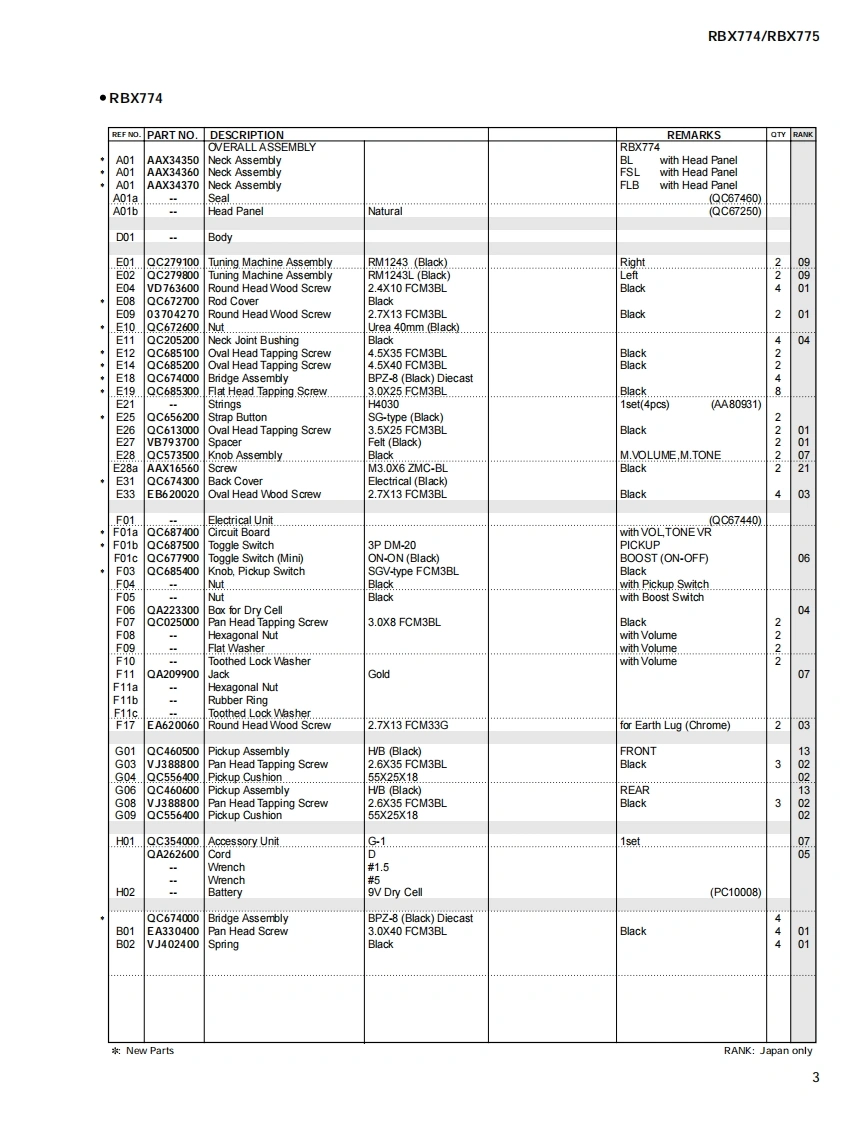

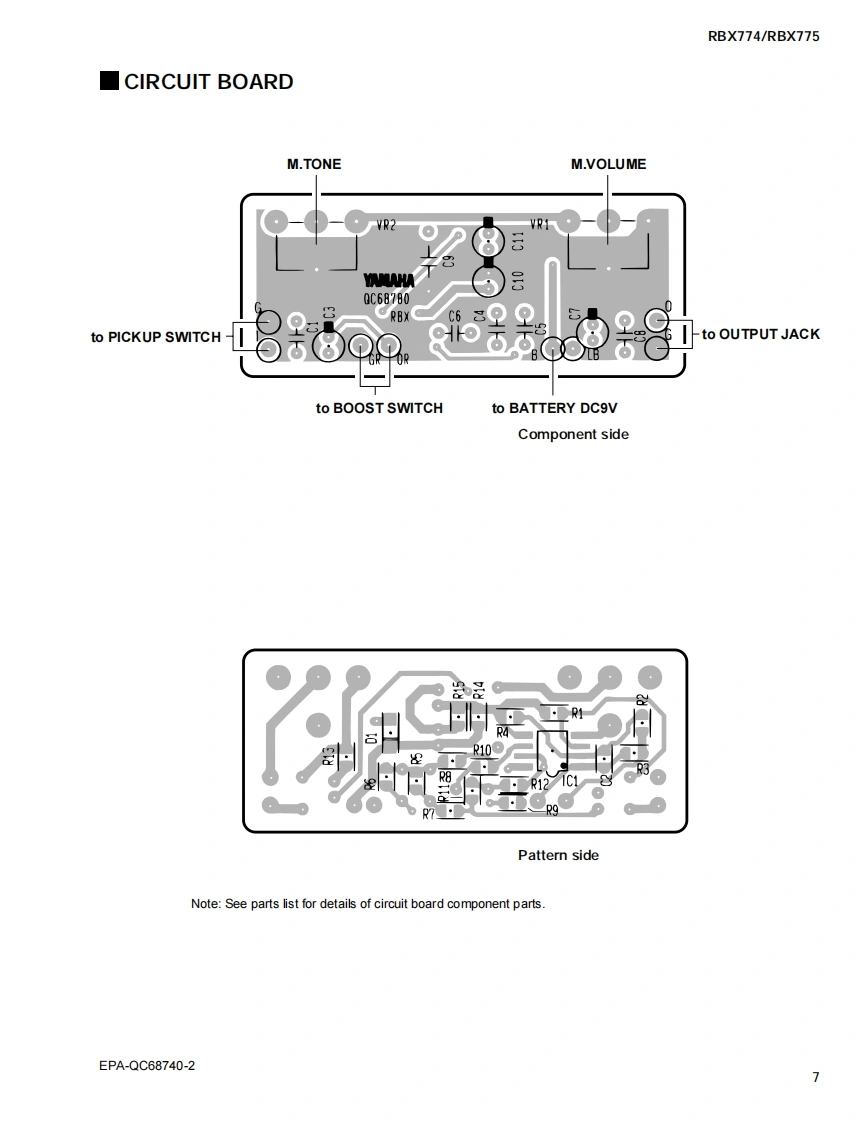

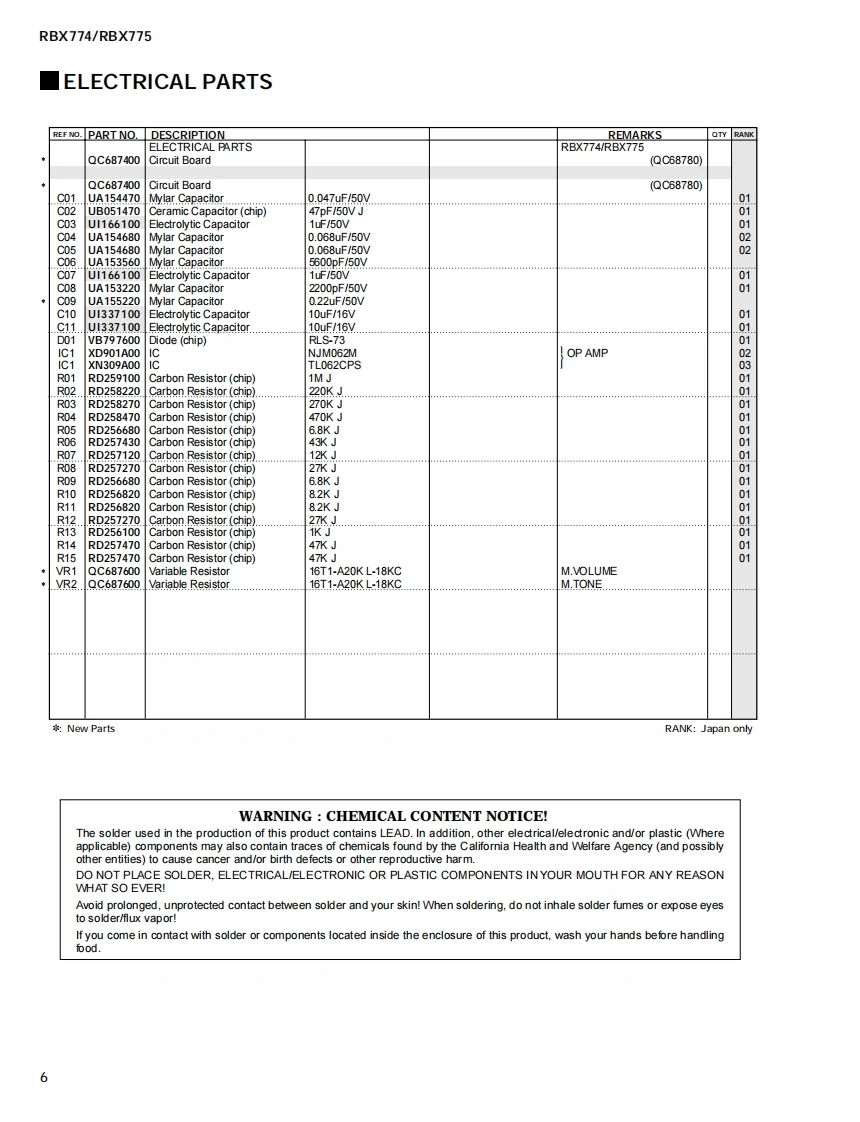

ELECTRIC BASSRBX774/RBX775SERVICE MANUALRBX774RBX775■CONTENTSOVERALL ASSEMBLY2ELECTRICAL PARTS6CIRCUIT BOARD7CIRCUIT DIAGRAM8WIRINGThis document is prnted on chlorhe fee (ECF)paper with soy ink.SPECIFICATIONS10EG011634米YAMAHAHAMAMATSU,JAPAN0.768K-072 FT:Printed in Japan '02.03
