索尼Sony-TC-199SD-维修手册

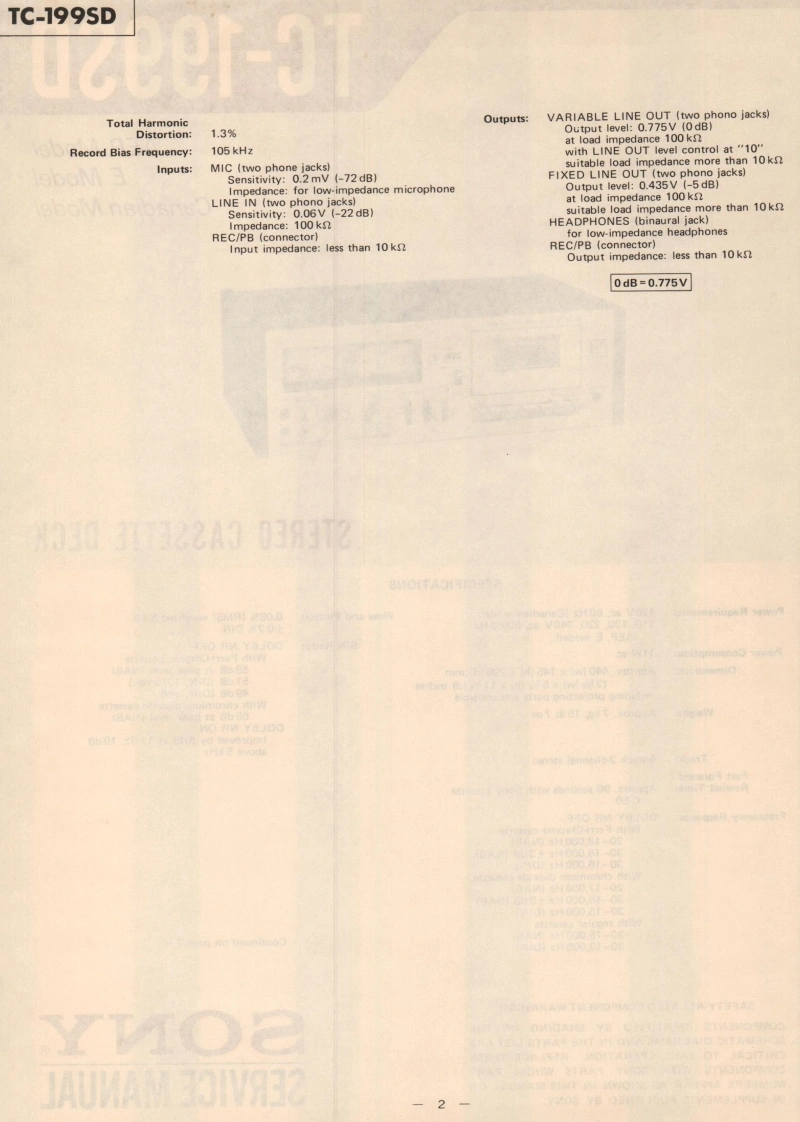

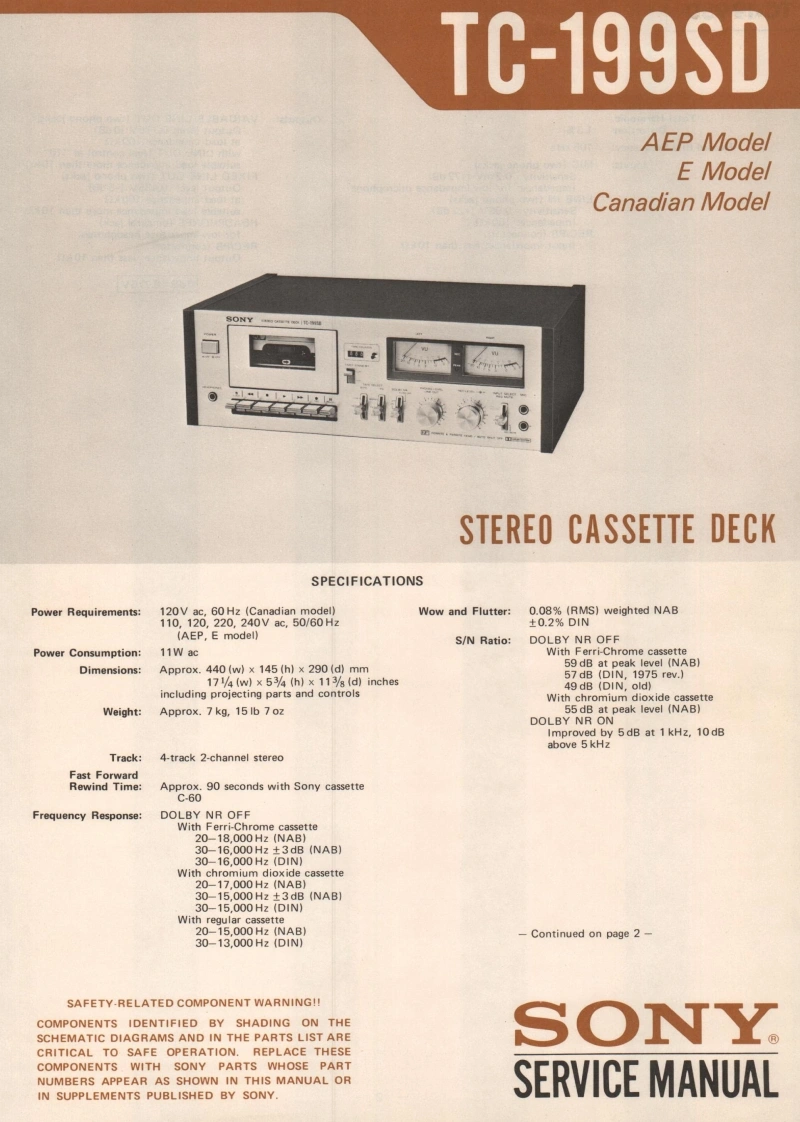

TC-199SDAEP ModelE ModelCanadian ModelSONYSTEREO CASSETTE DECKSPECIFICATIONSPower Requirements:120V ac,60 Hz (Canadian model)Wow and Flutter:0.08%(RMS)weighted NAB110,120,220.240Vac,50/60Hz±0.2%DIN(AEP,E model)S/N Ratio:DOLBY NR OFFPower Consumption:11W acWith Ferri-Chrome cassetteDimensions:Approx.440(w)x 145 (h)x 290 (d)mm59 dB at peak level (NAB]57 dB (DIN,1975 rev.)17/4(w)x534(h)x113/8(d)inches49 dB (DIN,old)including projecting parts and controlsWith chromium dioxide cassetteWeight:Approx.7 kg,15 Ib 7 oz55dB at peak level (NAB)DOLBY NR ONImproved by 5 dB at 1 kHz,10dBabove 5 kHzTrack:4-track 2-channel stereoFast ForwardRewind Time:Approx.90 seconds with Sony cassetteC-60Frequency Response:DOLBY NR OFFWith Ferri-Chrome cassette20-18,000Hz(NAB)30-16.000Hz±3dB(NAB】30-16.000Hz(D1N)With chromium dioxide cassette20-17.000Hz(NAB)30-15,000Hz±3dB(NAB】30-15.000Hz(D1N)With regular cassette20-15.,000Hz(NAB)30-13.000Hz(D1N)-Continued on page 2-SAFETY-RELATED COMPONENT WARNING!!COMPONENTS IDENTIFIED BY SHADING ON THESCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARESONYCRITICAL TO SAFE OPERATION.REPLACE THESECOMPONENTS WITH SONY PARTS WHOSE PARTNUMBERS APPEAR AS SHOWN IN THIS MANUAL ORSERVICE MANUALIN SUPPLEMENTS PUBLISHED BY SONY.
