索尼sony-tc-399-维修手册

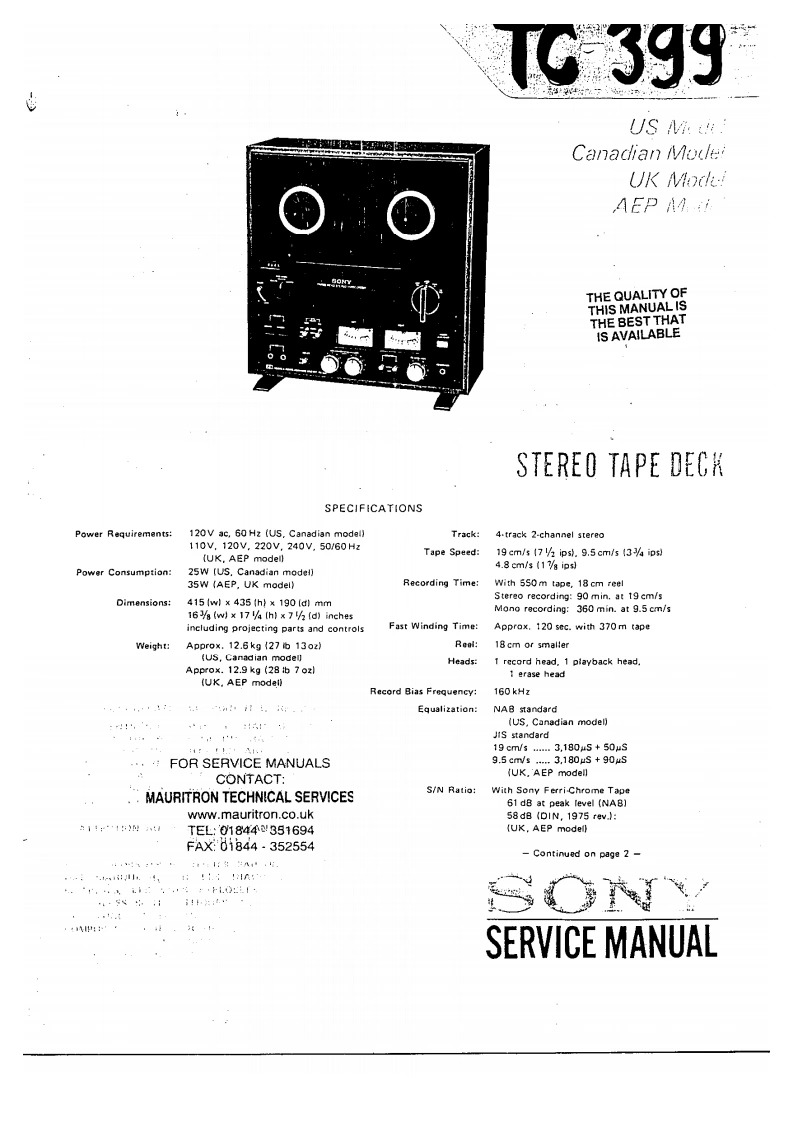

TG399US MiCanadian MotleUK MadeiAEP MTHE QUALITY OFTHIS MANUAL ISTHE BEST THATIS AVAILABLESTEREO TAPE DECKSPECIFICATIONSPower Requirements:120V ac,60 Hz (US,Canadian model)Track:4.track 2-channel stereo110V.120V.220V,240V,50/60HzTape Speed:(UK.AEP modell19 cm/s (7 ips).9.5 cm/s (33 ips!4.8 cm/s (17/8 ips)Power Consumption:25W [US.Canadian model)35W (AEP,UK model)Recording Time:With 550m tape,18 cm reelDimensions:415lwl×435h}×190Id1mrmStereo recording:90 min.at 19 cm/s1638(w)x 171/4 [h)x 7!(d)inchesMono recording:360 min.at 9.5 cm/sincluding projecting parts and controlsFast Winding Time:Approx.120 sec.with 370m tapeWeight:Approx.12.6kg (27 13oz)Rooi:18 cm or smaller(US,Canadian modellHeads:1 record head.1 playback head.Approx.12.9 kg (28 ib 7 ozlt erase head(UK.AEP model)Record Bias Frequency:160 kHzEqualization:NAB standard(US,Canadian model)JiS standard19cm/s.3,180u5+50μSFOR SERVICE MANUALS9.5cmWs,3,180μS+90uSCONTACT:(UK,AEP modellMAURITRON TECHNICAL SERVICESS/N Ratio:With Sony Ferri-Chrome Tape61 d8 at peak level (NAB]www.mauritron.co.uk58d8(D1N,1975rew.:51t:1251TEL:01844351694(UK.AEP model)FAX:01844·352554Continued on page 2SERVICE MANUAL
