索尼Sony_ta-f550es_维修手册

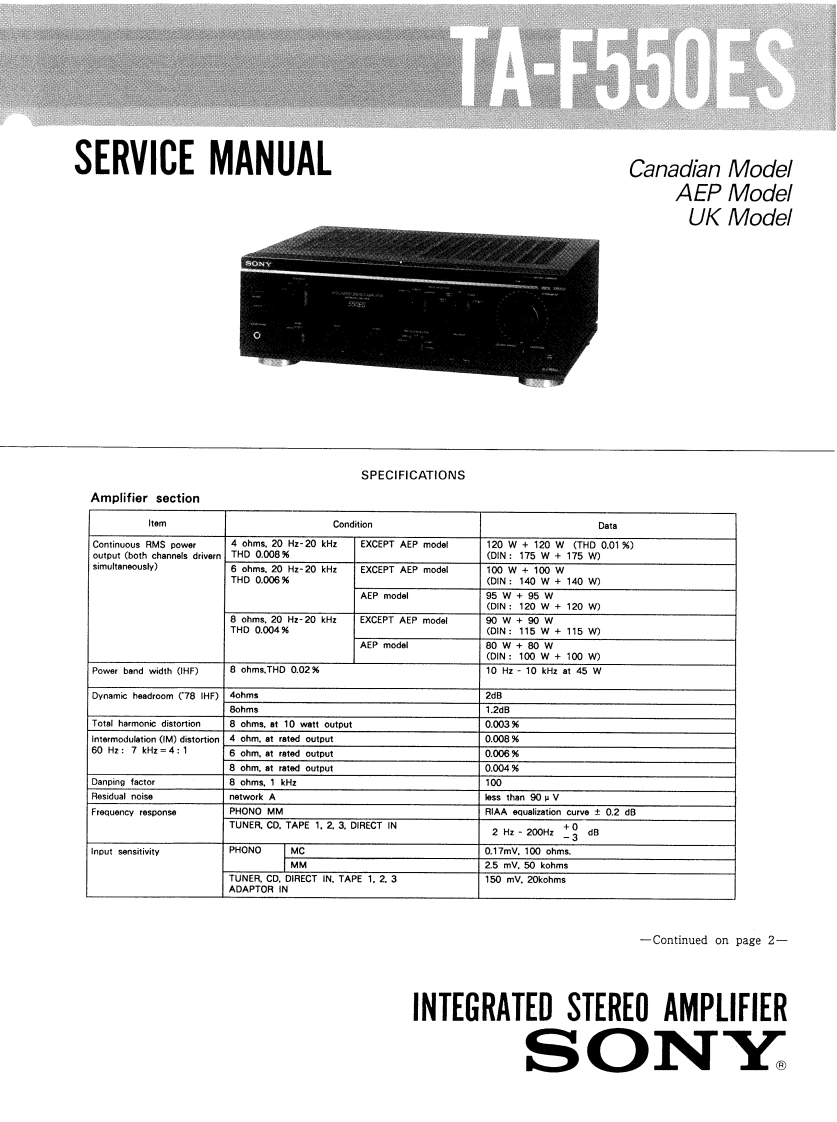

TAF550正SSERVICE MANUALCanadian ModelAEP ModelUK ModelSPECIFICATIONSAmplifier sectionItemConditionDataContinuous RMS power4 ohms.20 Hz-20 kHzEXCEPT AEP model120W+120W(THD0.01%)output (both channels drivernTHD0.008%(DN:175W+175W0simultaneously)6 ohms.20 Hz-20 kHzEXCEPT AEP model100W+100WTHD0.006%(DN:140w+140W0AEP model95W+95W(OIN:120W+120W08 ohms,20 Hz-20 kHzEXCEPT AEP modelTHD0.004%88N士+1i5wAEP model80W+80w(DIN:100w+100W0Power band width (IHF)8 ohms.THD 0.02%10 Hz 10 kHz at 45 WDynamic headroom ('78 IHF)4ohms2dB8ohms1.2d8Total harmonic distortion8 ohms,at 10 watt output0.003%intermodulation (IM)distortion 4 ohm.at rated output0.008%60Hz:7kHz=4:16 ohm.at rated output0.006%8 ohm.at rated output0.004%Danping factor8 ohms,1 kHz100Residual noisenetwork Aless than 90 u VFrequency responsePHONO MMRIAA equalization curve 0.2 dBTUNER.CD.TAPE 1.2.3.DIRECT IN2Hz·200HzInput sensitivityPHONOMC0.17mV.100 ohms.MM2.5 mV.50 kohmsTUNER.CD.DIRECT IN.TAPE 1.2.3150 mV.20kohmsADAPTOR IN-Continued on page 2-INTEGRATED STEREO AMPLIFIERSONY
