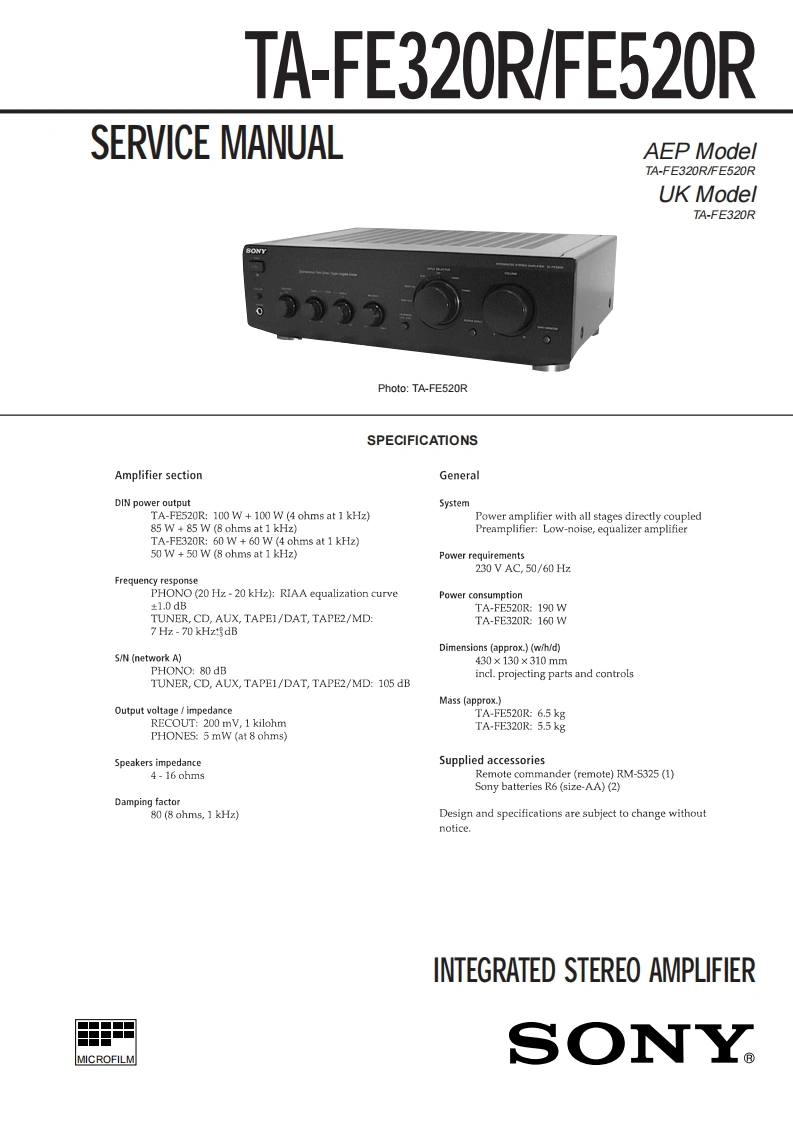

TA-FE320R/FE520RSERVICE MANUALAEP ModelTA-FE320R/FE520RUK ModelTA-FE320RPhoto:TA-FE520RSPECIFICATIONSAmplifier sectionGeneralDIN power outputSystemTA-FE520R:100 W 100 W (4 ohms at 1 kHz)Power amplifier with all stages directly coupled85 W+85 W(8 ohms at 1 kHz)Preamplifier:Low-noise,equalizer amplifierTA-FE320R:60 W+60 W (4 ohms at 1 kHz)50 W+50 W (8 ohms at 1 kHz)Power requirements230VAC.50/60HzFrequency responsePHONO (20 Hz-20 kHz):RIAA equalization curvePower consumption±1.0dBTA-FE520R:190 WTUNER,CD,AUX,TAPE1/DAT,TAPE2/MD:TA-FE320R:160 W7 Hz-70 kHzdBDimensions (approx.)(w/h/d)S/N (network A)430×130×310mmPHONO:80 dBincl.projecting parts and controlsTUNER,CD,AUX,TAPE1/DAT,TAPE2/MD:105 dBMass (approx.)Output voltage impedanceTA-FE520R:6.5 kgRECOUT:200 mV,1 kilohmTA-FE320R:5.5 kgPHONES:5 mW (at 8 ohms)Speakers impedanceSupplied accessories4-16 ohmsRemote commander (remote)RM-5325 (1)Sony batteries R6 (size-AA)(2)Damping factor80 (8 ohms,kHz)Design and specifications are subject to change withoutnotice.INTEGRATED STEREO AMPLIFIER田MICROFILMSONY
