索尼Sony_TC-510-2-维修手册

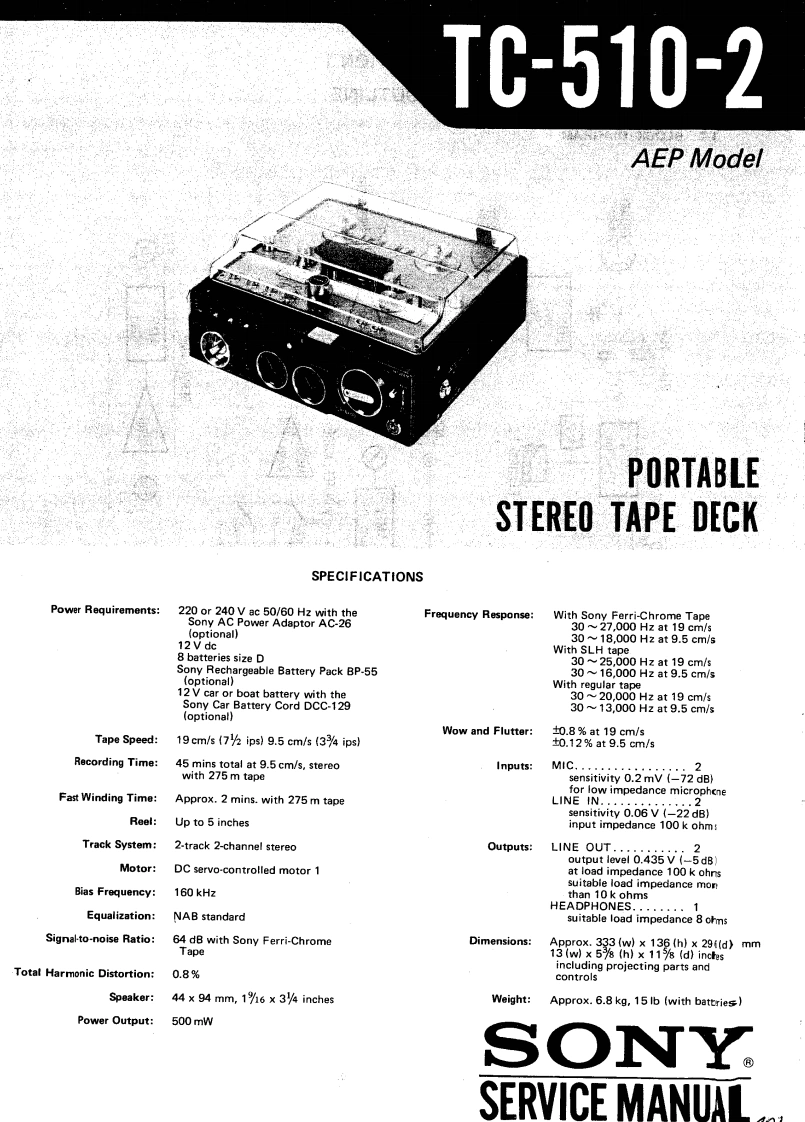

TC-510-2AEP ModelPORTABLESTEREO TAPE DECKSPECIFICATIONSPower Requirements:220 or 240 V ac 50/60 Hz with theFrequency Response:Sony AC Power Adaptor AC-26With Sony Ferri-Chrome Tape30≈27,000Hzat19cm/5(optional)12Vdc30~18,000Hzat9.5cm/sWith SLH tape8 batteries size DSony Rechargeable Battery Pack BP-5530~25,000Hzat19cm/soptional)30~16,000Hzat9.5cm/s12V car or boat battery with theWith regular tape30~20,000Hzat19cm/sSony Car Battery Cord DCC-1293013,000Hzat9.5cm/s(optional)Wow and Flutter:Tape Speed:19 cm/s (7 ips)9.5 cm/s (3%4 ips)t0.8%at 19 cm/st0.12%at9.5cm/sRecording Time:45 mins total at 9.5 cm/s,stereoInputs:MIC....with 275 m tapesensitivity 0.2mV(-72 dB}Fast Winding Time:for low impedance microphcneApprox.2 mins.with 275 m tapeLINE IN.94sensitivity 0.06V(-22dB)Reel:Up to 5 inchesinput impedance 100 k ohmsTrack System:2-track 2-channel stereoOutputs:LINE OUT.·2output levei 0.435(-5dB)Motor:DC servo-controlled motor 1at load impedance 100 k ohnssuitable load impedance monBias Frequency:160 kHzthan 10k ohmsHEADPHONES..Equalization:NAB standardsuitable load impedance 8 ohmsSignalto-noise Ratio:64 dB with Sony Ferri-ChromeDimensions:Tape智R93深1豫a》mmTotal Harmonic Distortion:0.8%including projecting parts andcontrolsSpeaker:44 x 94 mm,1916 x 314 inchesWeight:Approx.6.8 kg,15 lb (with battries)Power Output:500mWSONYSERVICE MANUAL
