索尼Sony_Tuner_ST-S390_SM

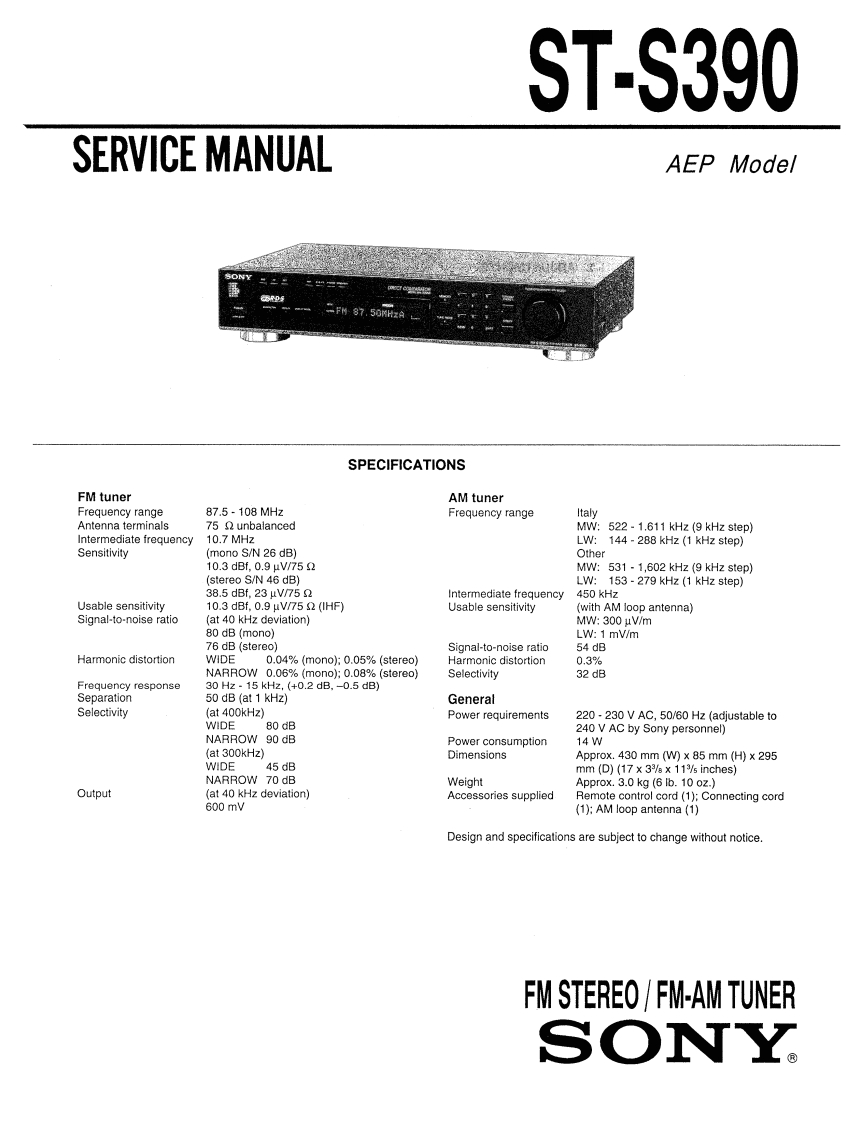

ST-S390SERVICE MANUALAEP ModelSPECIFICATIONSFM tunerAM tunerFrequency range87.5-108MHzFrequency rangeItalyAntenna terminals75 unbalancedMW:522-1.611 kHz (9 kHz step)Intermediate frequency10.7 MHzLW:144-288 kHz (1 kHz step)Sensitivity(mono S/N 26 dB)Other10.3dBf.0.9uV/752MW:531 1,602 kHz (9 kHz step)(stereo S/N 46 dB)LW:153-279 kHz (1 kHz step)38.5dBf.23uV/752Intermediate frequency450KZUsable sensitivity10.3dBf.0.9μV/752(0HF)Usable sensitivity(with AM loop antenna)Signal-to-noise ratio(at 40 kHz deviation)MW:300 uV/m80 dB (mono)LW:1 mV/m76 dB (stereo)Signal-to-noise ratio54 dBHarmonic distortionWIDE0.04%(mono):0.05%(stereo)Harmonic distortion0.3%NARROW 0.06%(mono):0.08%(stereo)Selectivity32 dBFrequency response30Hz-15kHz,(+0.2dB.-0.5dBSeparation50 dB (at 1 kHz)GeneralSelectivity(at 400kHz)Power requirements220-230 V AC,50/60 Hz (adjustable toWIDE80 dB240 V AC by Sony personnel)NARROW 90 dBPower consumption14W(at 300kHz)DimensionsApprox.430 mm (W)x 85 mm (H)x 295WIDE45 dBmm (D)(17 x 3/8 x 113/s inches)NARROW 70 dBWeightApprox.3.0 kg (6 Ib.10 oz.)Output(at 40 kHz deviation)Accessories suppliedRemote control cord(1);Connecting cord600mV(1):AM loop antenna (1)Design and specifications are subject to change without notice.FM STEREO/FM-AM TUNERSONY
