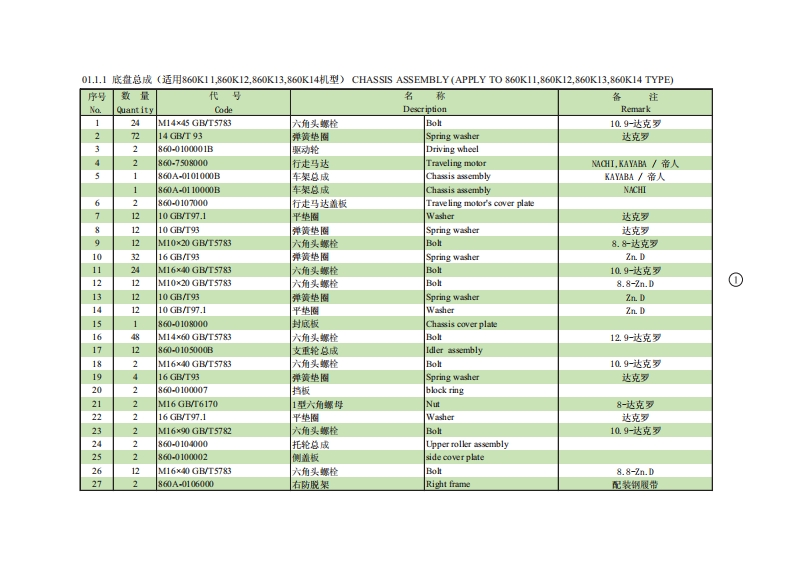

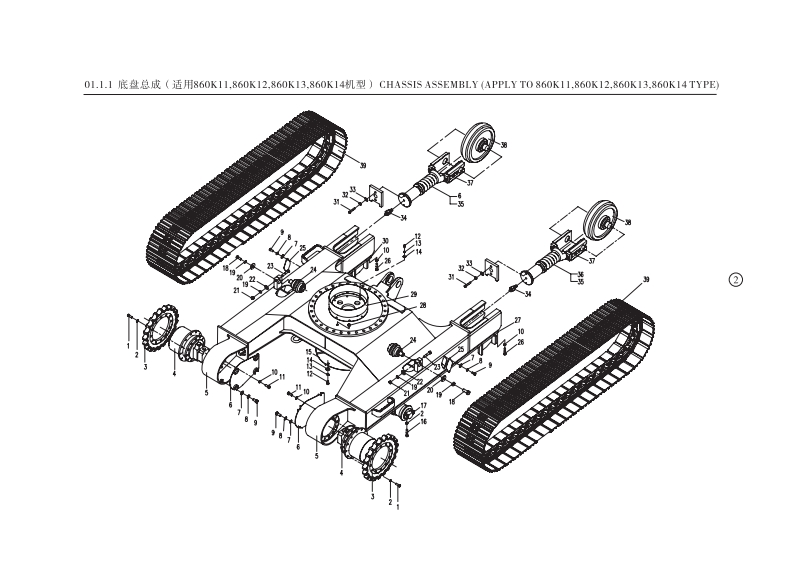

01.L.1底t总成（适用860K11,860K12,860K13,860K14机型）CHASSIS ASSEMBLY(APPLY TO0860K11,860K12,860K13,860K14TYPE序号数量代号名称备注No.Quant ityCodeDescriptionRemark124M14K45GB/T5783六角头螺栓Bolt10.9-达克罗27214 GB/T 93弹簧垫圈Spring washer达克罗32860-0100001B驱动轮Driving wheel860-.7508000行走马达Traveling molorMHI,KAYABA/帝人5860A-0101000B车架总成Chassis assemblyKAYABA/帝人860A-0110000B车架总成Chassis assemblyNACHI62860-0107000行走马达盖板Trave ling molor's cover plate7210GBT97.1平垫圈Washer达克罗81210 GB/T93弹簧垫圈Spring washer达克罗912M1020GB/T5783六角头螺栓Bolt8.8-达克罗103216GBT9第弹簧垫圈Spring washer2n.D1124M16×40GB/T5783六角头螺栓Bolt10.9-达克罗1212M10×20GB/T5783六角头螺栓Bolt8.8-Zn.D10 GB/T93弹簧垫圈Spring washer2n.D14正10GB/T97.1平垫圈Washer2n.D1860-0108000封底板Chassis cover pla能648M14x60GBT5783六角头螺栓Bolt129-达克罗17860-010S000B支重轮总成Idler assembly18M16x40GBT5783六角头螺栓Bolt10.9-达克罗1916GBT9第弹簧垫圈Spri血g washer达克罗202860-0100007挡板block ring212M16GB/T61701型六角螺母Nut8-达克罗22316GBT97.1平垫圈Washer达克罗23M16x90GB/T5782六角头螺栓Bolt10.9-达克罗2860-0104000托轮总成Upper roller assembly2860-0100002侧盖板side cover plte2612M16x40GB/T5783六角头螺栓Bolt8.8-2n.D272860A-0106000右防脱架Right frame配装钢限带
