罗兰Roland—CUBE-30_serv维修手册含电器原理图ice_notes

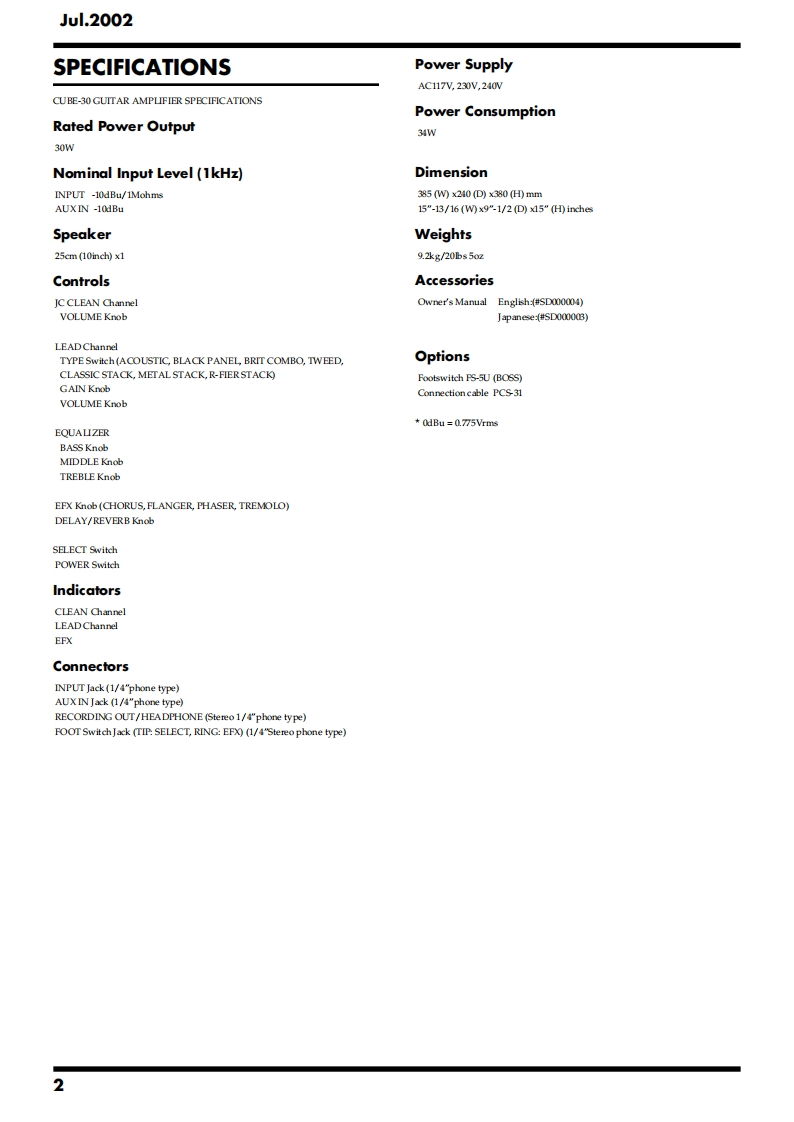

Jul.2002CUBE-30CBE30SERVICE NOTESIssued by RJATABLE OF CONTENTSSPECIFICATIONS.......2EXPLODED VIEW PARTS LIST(CHASSIS)........LOCATION OF ONTROLS..3PARTS LIST..8LOCATION OF CONTROLS PARTS LIST.............3CHECKING THE VERSION NUMBER.................10EXPLODED VIEW(CABNET).4TESTMODE....10EXPLODED VIEW PARTS LIST(CABINET)...........5CAUTIONS FOR THE REPLACEMENT OFEXPLODED VIEW(CHASSIS).........6DAMAGED POWER SUPPLY CORD....12Copyright 2002 ROLAND CORPORATIONAll rights reserved.No part of this publication may be reproduced in any form without the written permissionof ROLAND CORPORATION.Roland17058088E0Printed in Japan(0800)(NB)
