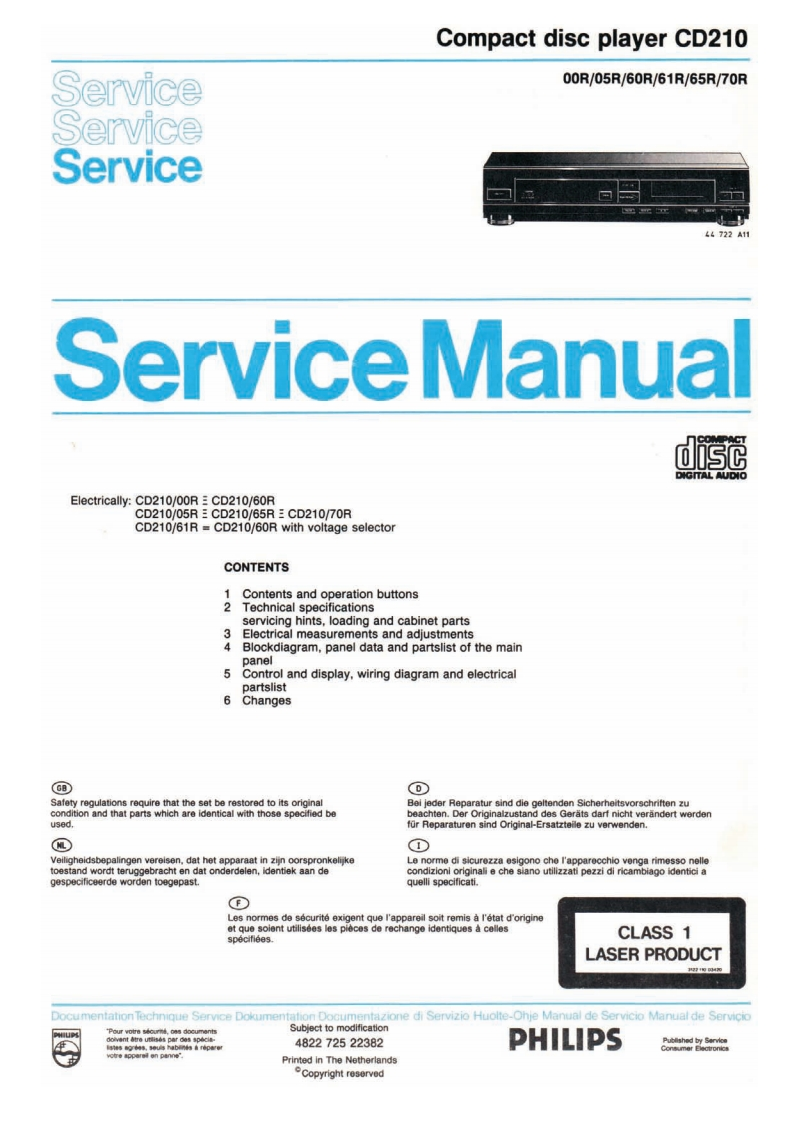

Compact disc player CD210Service00R/05R/60R/61R/65R/70RServiceService44722A11Service Manuald56Electrically:CD210/00R CD210/60RCD210/05R三CD210/65R三CD210/70RCD210/61R=CD210/60R with voltage selectorCONTENTS1Contents and operation buttons2Technical specificationsservicing hints,loading and cabinet parts3Electrical measurements and adjustments4Blockdiagram,panel data and partslist of the mainpanel5Control and display,wiring diagram and electricalpartslist6ChangesGo⊙Safety regulations require that the set be restored to its originalBei jeder Reparatur sind die geltenden Sicherheitsvorschritten zucondition and that parts which are identical with those specified bebeachten.Der Originalzustand des Gerats darf nicht verandert werdenused.for Reparaturen sind Original-Ersatzteile zu verwenden.0①Veiligheidsbepalingen vereisen,dat het apparaat in zijn oorspronkelijkeLe norme di sicurezza esigono che I'apparecchio venga rimesso nelletoestand wordt teruggebracht en dat onderdelen,identiek aan decondizionl originali e che siano utilizzati pezzi di ricambiago identici agespecificeerdeworden toegepast.quelli specificati.FLes normes de securite exigent que I'appareil soit remis a I'etat d'origineet que soient utilisdes les piecesderechange identiques a cellesCLASS 1specifiees.LASER PRODUCTDocumentation Technique Service Dokumentation Documentazione di Servizio Huolte-Ohje Manual de Servicio Manual de ServicioSubject to modification482272522382PHILIPShegogPrinted in The NetherlandsCopyright reserved
