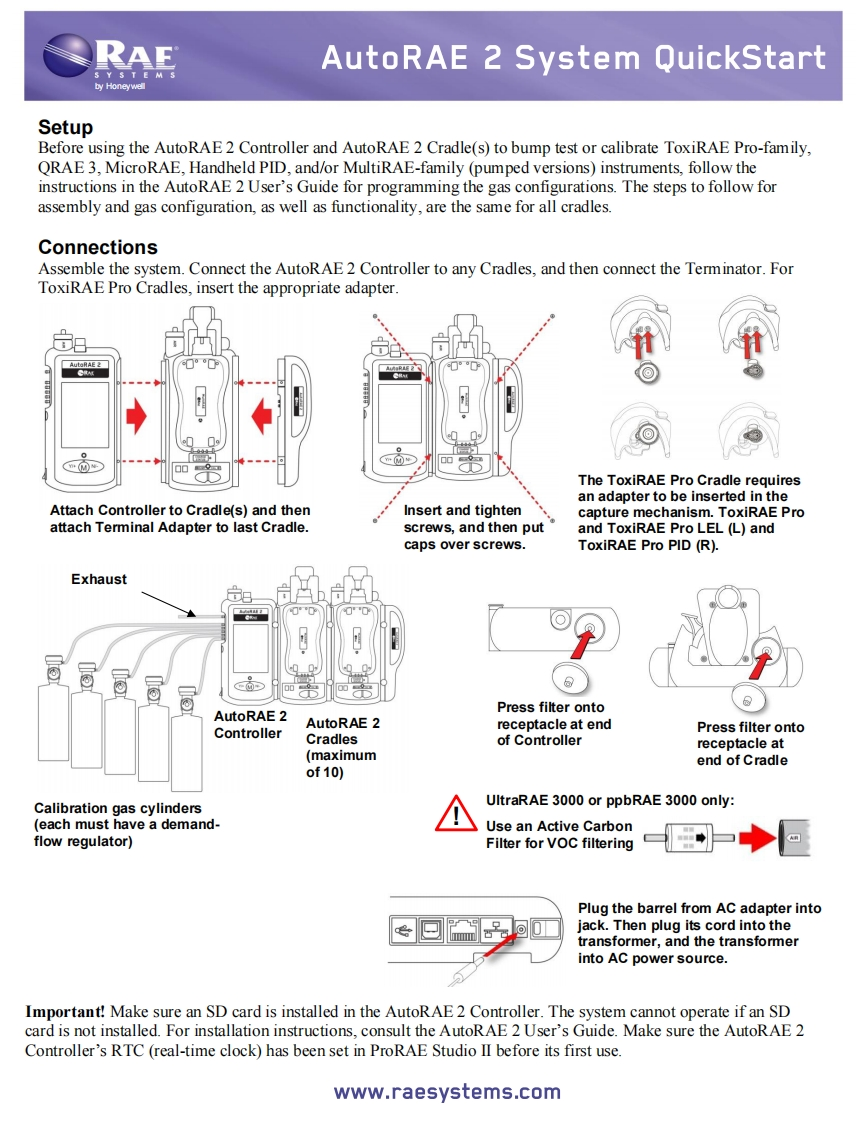

RAEAutoRAE 2 System QuickStartS Y S T E M Sby HoneywellSetupBefore using the AutoRAE 2 Controller and AutoRAE 2 Cradle(s)to bump test or calibrate ToxiRAE Pro-family,QRAE 3,MicroRAE,Handheld PID,and/or MultiRAE-family (pumped versions)instruments,follow theinstructions in the AutoRAE 2 User's Guide for programming the gas configurations.The steps to follow forassembly and gas configuration,as well as functionality,are the same for all cradles.ConnectionsAssemble the system.Connect the AutoRAE 2 Controller to any Cradles,and then connect the Terminator.ForToxiRAE Pro Cradles,insert the appropriate adapter.AutaRAE 2The ToxiRAE Pro Cradle requiresan adapter to be inserted in theAttach Controller to Cradle(s)and thenInsert and tightencapture mechanism.ToxiRAE Proattach Terminal Adapter to last Cradle.screws,and then putand ToxiRAE Pro LEL (L)andcaps over screws.ToxiRAE Pro PID(R).ExhaustAutoRAE 2Press filter ontoAutoRAE 2Controllerreceptacle at endPress filter ontoCradlesof Controllerreceptacle at(maximumend of Cradleof10)Calibration gas cylindersUltraRAE 3000 or ppbRAE 3000 only:(each must have a demand-Use an Active Carbonflow regulator)Filter for VOC filteringPlug the barrel from AC adapter intojack.Then plug its cord into thetransformer,and the transformerinto AC power source.Important!Make sure an SD card is installed in the AutoRAE 2 Controller.The system cannot operate if an SDcard is not installed.For installation instructions,consult the AutoRAE 2 User's Guide.Make sure the AutoRAE 2Controller's RTC (real-time clock)has been set in ProRAE Studio II before its first use.www.raesystems.com
