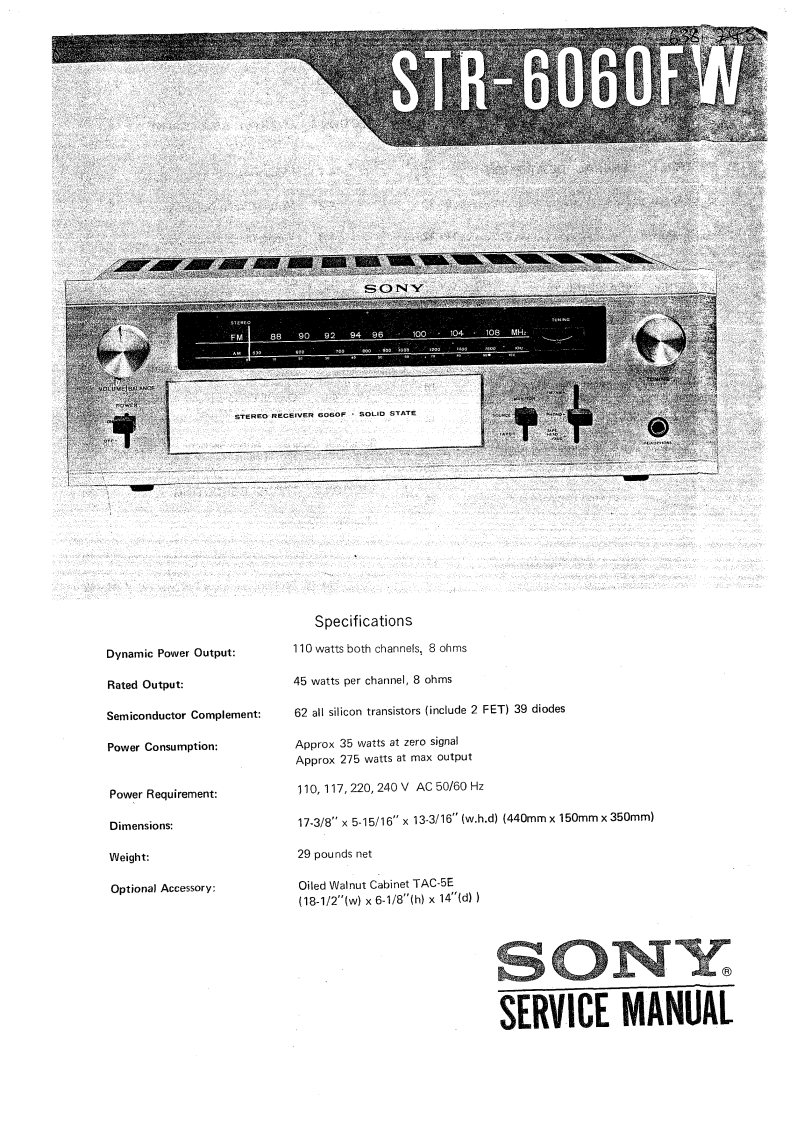

STR-6060FWSONY8890929496STEREO RECEIVER GOBOF.SOLID STATESpecificationsDynamic Power Output:110 watts both channels,8 ohmsRated Output:45 watts per channel,8 ohmsSemiconductor Complement:62 all silicon transistors (include 2 FET)39 diodesPower Consumption:Approx 35 watts at zero signalApprox 275 watts at max outputPower Requirement:110,117,220,240VAC50/60HzDimensions:17-.3/8x5-15/16”"×13-3/16"(w.h.d)(440mm×150mmx350mm)Weight:29 pounds netOptional Accessory:Oiled Walnut Cabinet TAC-5E(18-1/2"w)×6-1/8"(h)×14"d)SONYSERVICE MANUAL
