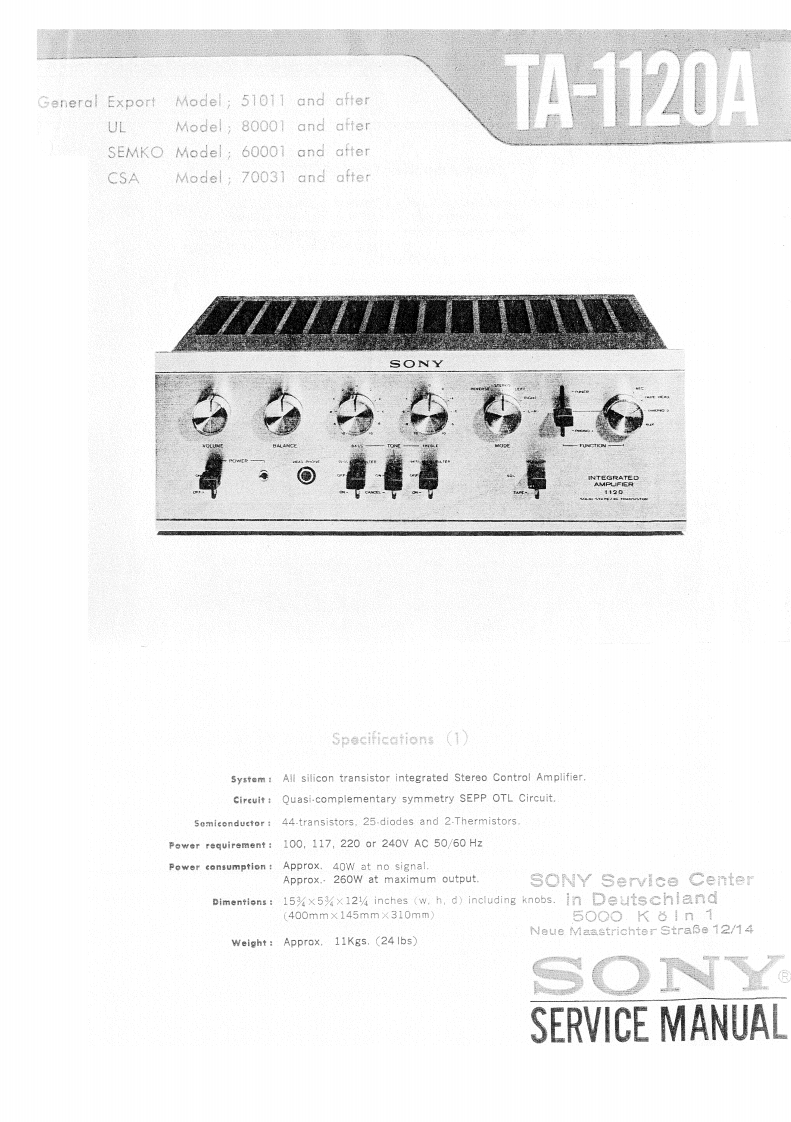

General ExportModel;51011 and afterTA11201ULModel;80001and afterSEMKO Model;60001 and afterCSAModel;70031 and afterSONY，。事章系1120Specifications (1)System:All silicon transistor integrated Stereo Control Amplifier.Cireuit:Quasi-complementary symmetry SEPP OTL Circuit.semiconduetor:44-transistors.25-diodes and 2-ThermistorsPewer requirement:100,117,220 or 240V AC 50/60 HzPower censumption:Approx.40W at no signal.Approx..260W at maximum outputSONY Service CenterDimentions 15%x5%x12%inches (w.h,d)including knobs.in Deutschland400mm×145mm×310mm5000.K61n1Neue Maastrichter StraBe 12/14Weight:Approx.11Kgs.(24 Ibs)S○NSERVICE MANUAL
