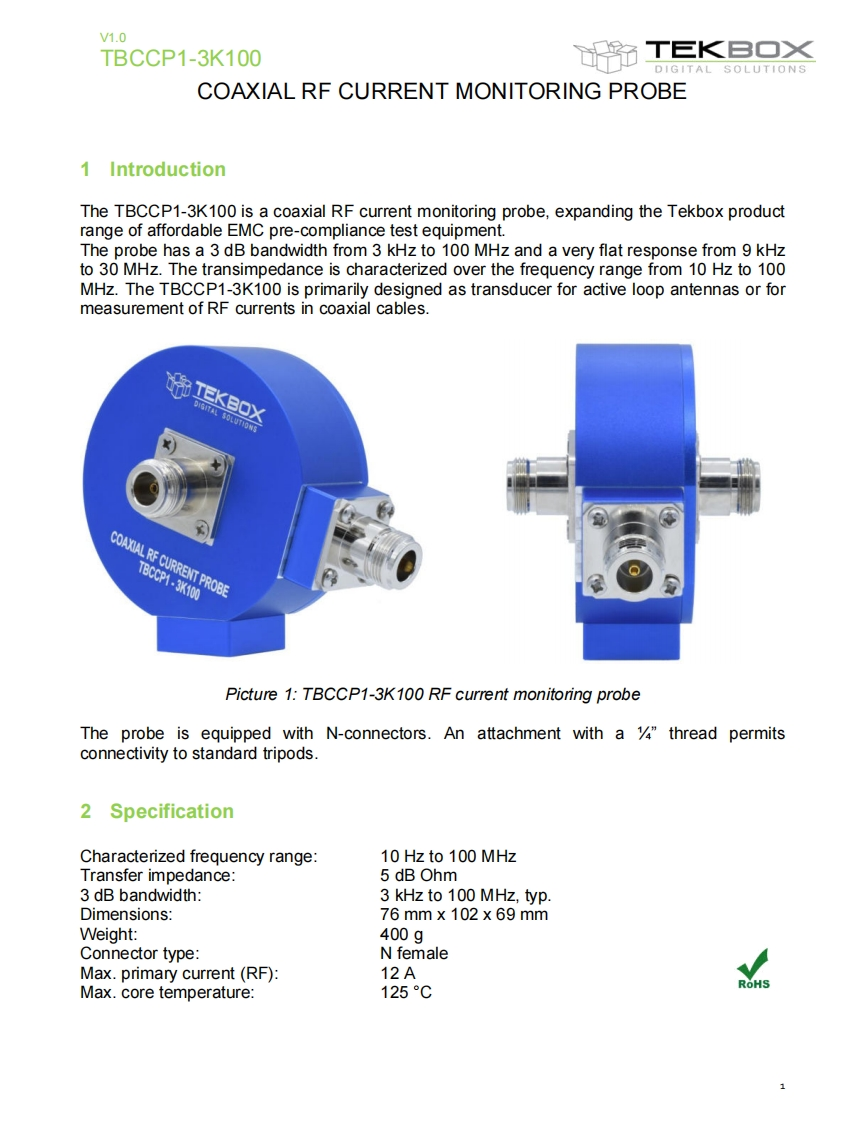

V1.0TBCCP1-3K100豹T巨Ko×DIGITAL SOLUTIONSCOAXIAL RF CURRENT MONITORING PROBE1 IntroductionThe TBCCP1-3K100 is a coaxial RF current monitoring probe,expanding the Tekbox productrange of affordable EMC pre-compliance test equipment.The probe has a 3 dB bandwidth from 3 kHz to 100 MHz and a very flat response from 9 kHzto 30 MHz.The transimpedance is characterized over the frequency range from 10 Hz to 100MHz.The TBCCP1-3K100 is primarily designed as transducer for active loop antennas or formeasurement of RF currents in coaxial cables.TEKBOXDIGITAL SOLUTIONSCOAXIAL RF CURRENT PROBETBCCP1-3K100Picture 1:TBCCP1-3K100 RF current monitoring probeThe probe is equipped with N-connectors.An attachment with a thread permitsconnectivity to standard tripods2 SpecificationCharacterized frequency range:10 Hz to 100 MHzTransfer impedance:5 dB Ohm3 dB bandwidth:3 kHz to 100 MHz,typ.Dimensions:76 mm x 102 x 69 mmWeight:400gConnector type:N femaleMax.primary current (RF):12ARoHSMax.core temperature:125°C1
