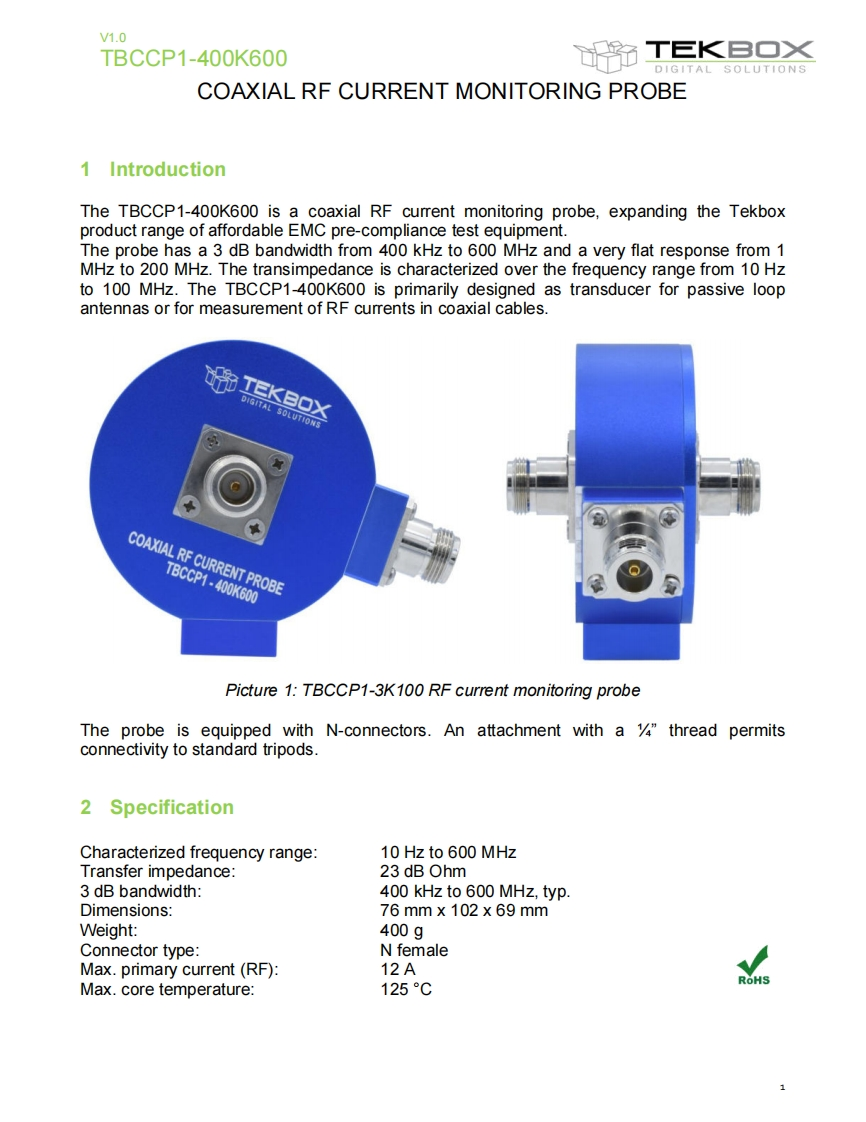

V1.0TBCCP1-400K600豹T巨Ko×DIGITAL SOLUTIONSCOAXIAL RF CURRENT MONITORING PROBE1 IntroductionThe TBCCP1-400K600 is a coaxial RF current monitoring probe,expanding the Tekboxproduct range of affordable EMC pre-compliance test equipment.The probe has a 3 dB bandwidth from 400 kHz to 600 MHz and a very flat response from 1MHz to 200 MHz.The transimpedance is characterized over the frequency range from 10 Hzto 100 MHz.The TBCCP1-400K600 is primarily designed as transducer for passive loopantennas or for measurement of RF currents in coaxial cables.都TEKBOXDIGITAL SOLUTIONSCOAXIAL RF CURRENT PROBETBCCP1-400K600Picture 1:TBCCP1-3K100 RF current monitoring probeThe probe is equipped with N-connectors.An attachment with a thread permitsconnectivity to standard tripods2 SpecificationCharacterized frequency range:10 Hz to 600 MHzTransfer impedance:23 dB Ohm3 dB bandwidth:400 kHz to 600 MHz,typ.Dimensions:76 mm x 102x 69 mmWeight:400gConnector type:N femaleMax.primary current(RF):12AMax.core temperature:125CRoHS1
