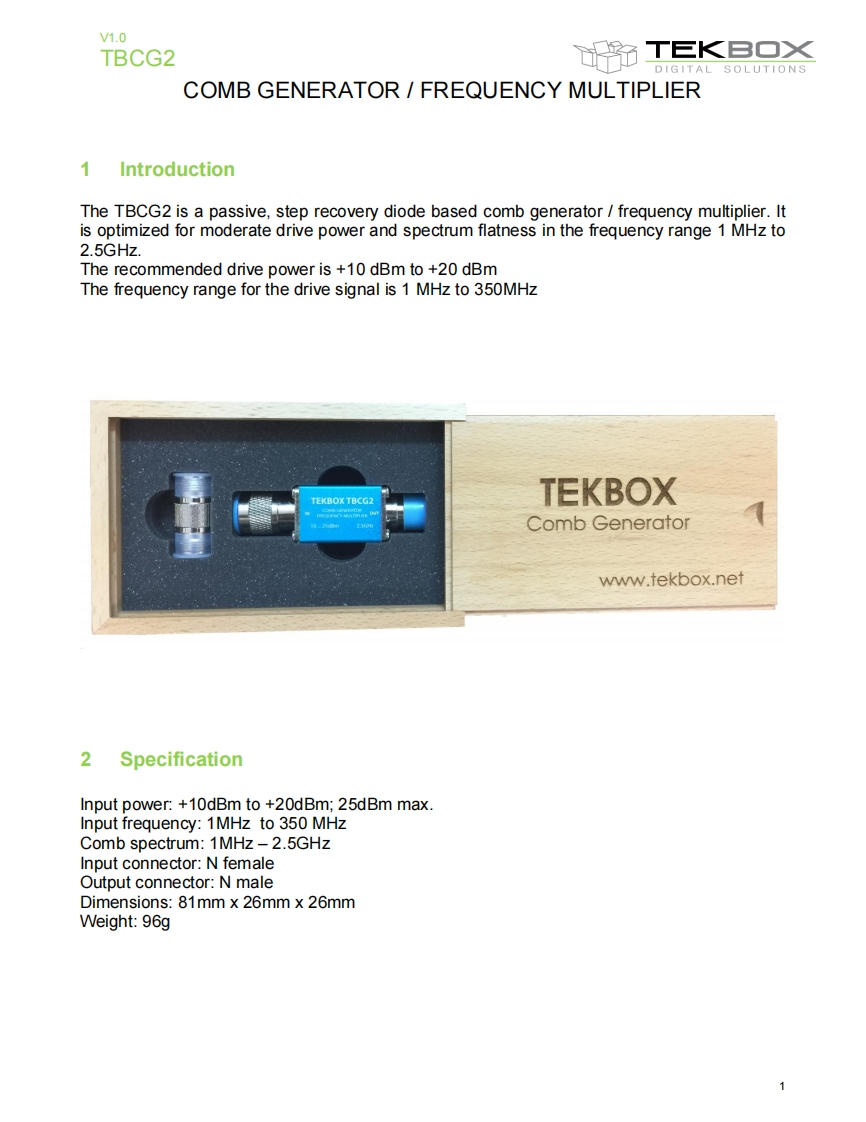

V1.0TBCG2T巨K旦O×DIGITAL SOLUTIONSCOMB GENERATOR FREQUENCY MULTIPLIER1 IntroductionThe TBCG2 is a passive,step recovery diode based comb generator frequency multiplier.Itis optimized for moderate drive power and spectrum flatness in the frequency range 1 MHz to2.5GHz.The recommended drive power is +10 dBm to +20 dBmThe frequency range for the drive signal is 1 MHz to 350MHzTEKBOX TBCG2TEKBOXComb Generatorwww.tekbox.net2 SpecificationInput power:+10dBm to +20dBm;25dBm max.Input frequency:1MHz to 350 MHzComb spectrum:1MHz-2.5GHzInput connector:N femaleOutput connector:N maleDimensions:81mm x 26mm x 26mmWeight:96g1
