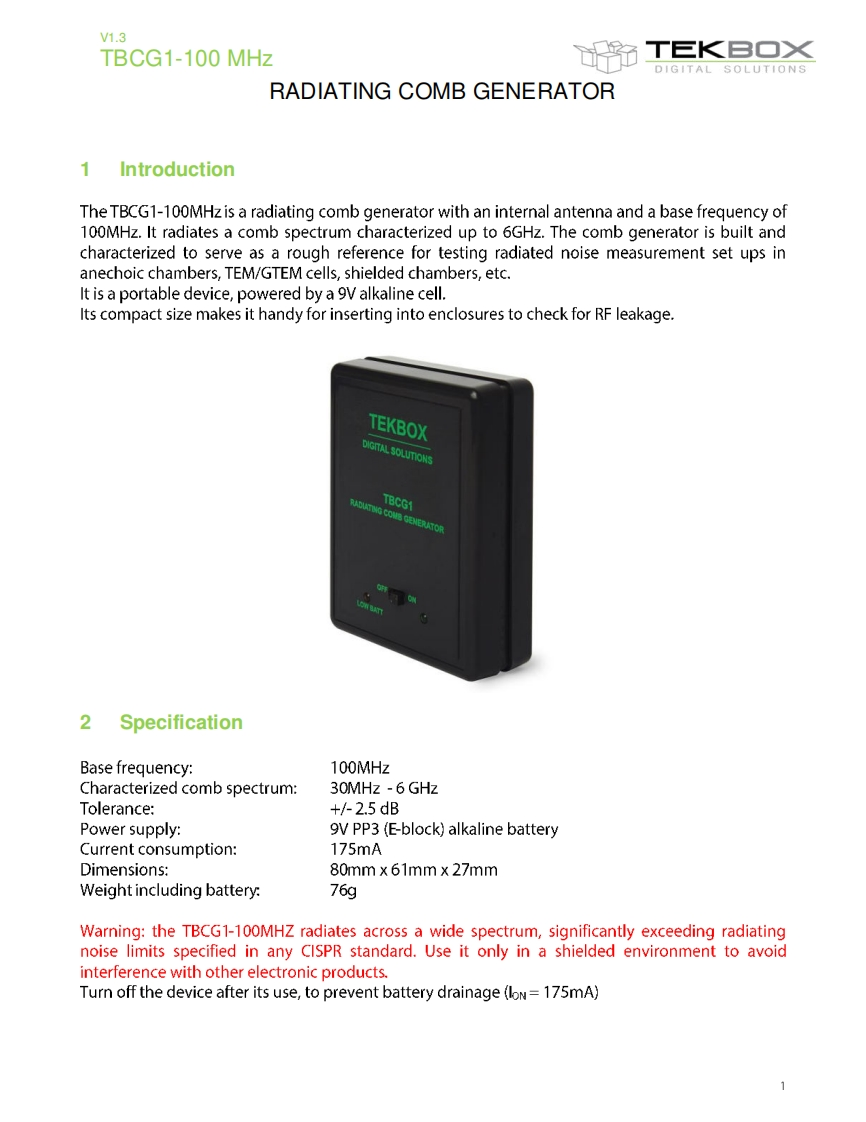

V1.3TBCG1-100 MHz豹T巨K旦O×DIGITAL SOLUTIONSRADIATING COMB GENERATOR1 IntroductionThe TBCG1-100MHz is a radiating comb generator with an internal antenna and a base frequency of100MHz.It radiates a comb spectrum characterized up to 6GHz.The comb generator is built andcharacterized to serve as a rough reference for testing radiated noise measurement set ups inanechoic chambers,TEM/GTEM cells,shielded chambers,etc.It is a portable device,powered by a 9V alkaline cell.Its compact size makes it handy for inserting into enclosures to check for RF leakage.TEKBOXDIGITAL SOLUTIONSTBCG12 SpecificationBase frequency:100MHzCharacterized comb spectrum:30MHz -6 GHzTolerance:+-2.5dBPower supply:9V PP3 (E-block)alkaline batteryCurrent consumption:175mADimensions:80mm x 61mm x 27mmWeight including battery:76gWarning:the TBCG1-100MHZ radiates across a wide spectrum,significantly exceeding radiatingnoise limits specified in any CISPR standard.Use it only in a shielded environment to avoidinterference with other electronic products.Turn off the device after its use,to prevent battery drainage (loN 175mA)1
