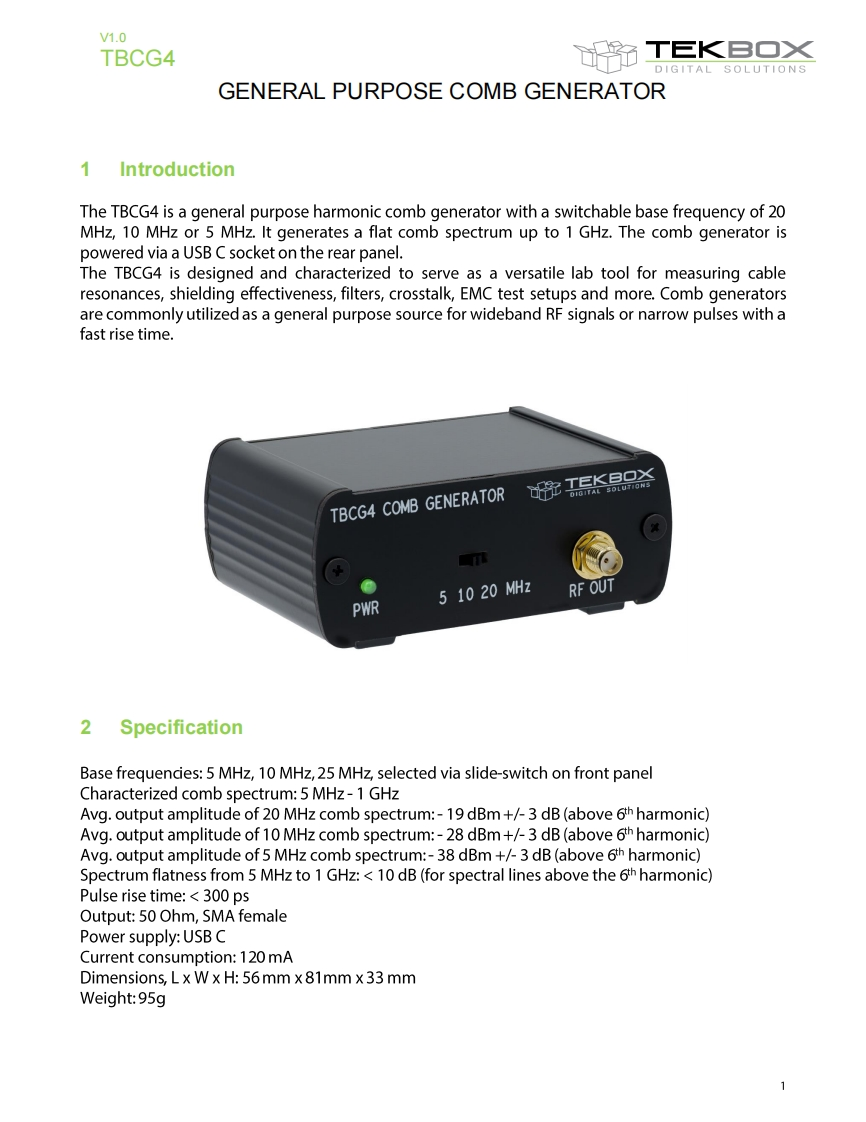

V1.0TBCG4T巨KEO×DIGITAL SOLUTIONSGENERAL PURPOSE COMB GENERATOR1IntroductionThe TBCG4 is a general purpose harmonic comb generator with a switchable base frequency of 20MHz,10 MHz or 5 MHz.It generates a flat comb spectrum up to 1 GHz.The comb generator ispowered via a USB C socket on the rear panel.The TBCG4 is designed and characterized to serve as a versatile lab tool for measuring cableresonances,shielding effectiveness,filters,crosstalk,EMC test setups and more.Comb generatorsare commonly utilized as a general purpose source for wideband RF signals or narrow pulses with afast rise time.TBCG4 COMB GENERATOR形Tka器西51020MHzRF OUTPWR2 SpecificationBase frequencies:5 MHz,10 MHz,25 MHz,selected via slide-switch on front panelCharacterized comb spectrum:5 MHz-1 GHzAvg.output amplitude of 20 MHz comb spectrum:-19 dBm+/-3 dB(above 6th harmonic)Avg.output amplitude of 10 MHz comb spectrum:-28 dBm+/-3 dB(above 6th harmonic)Avg.output amplitude of 5 MHz comb spectrum:-38 dBm +/-3 dB(above 6th harmonic)Spectrum flatness from 5 MHz to 1 GHz:10 dB(for spectral lines above the 6th harmonic)Pulse rise time:300 psOutput:50 Ohm,SMA femalePower supply:USB CCurrent consumption:120 mADimensions,Lx Wx H:56mm x81mm x33 mmWeight:95g1
