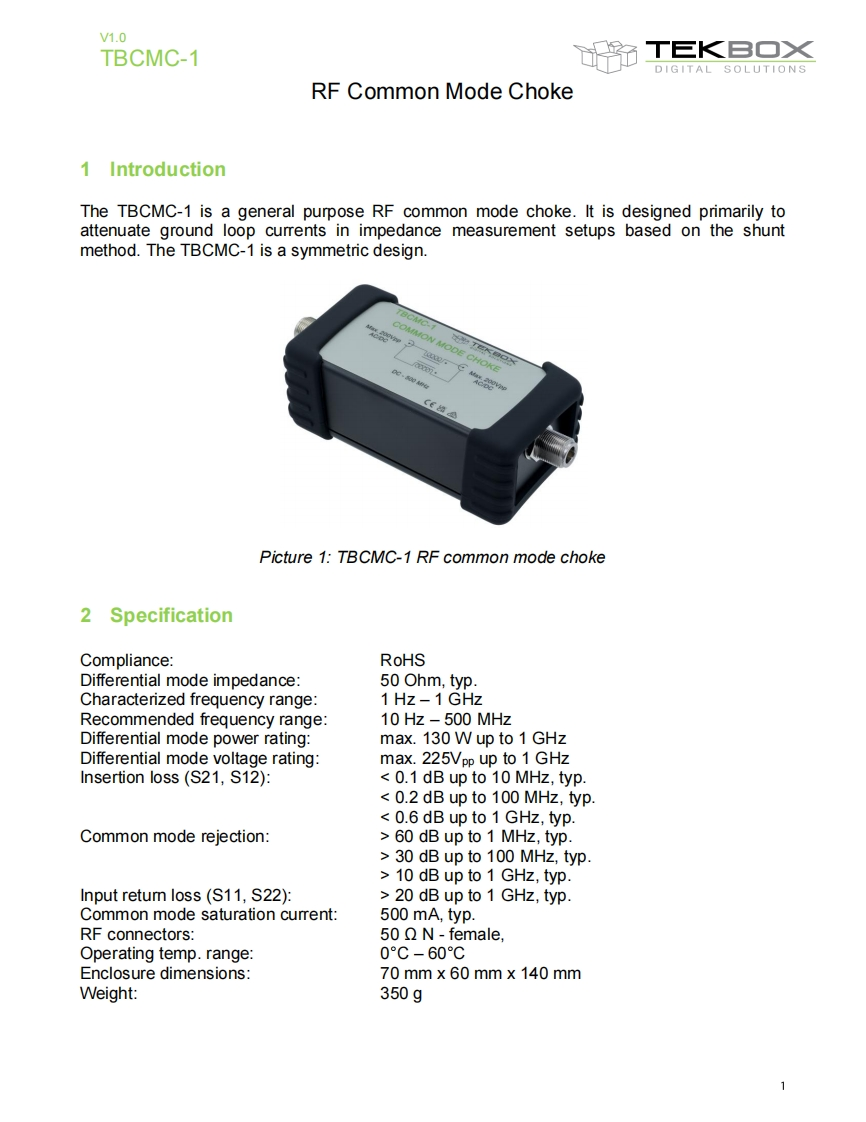

V1.0TBCMC-1豹T巨K旦O×DIGITAL SOLUTIONSRF Common Mode Choke1 IntroductionThe TBCMC-1 is a general purpose RF common mode choke.It is designed primarily toattenuate ground loop currents in impedance measurement setups based on the shuntmethod.The TBCMC-1 is a symmetric design.COMMON MO2r.CHOKEPicture 1:TBCMC-1 RF common mode choke2 SpecificationCompliance:RoHSDifferential mode impedance:50 Ohm,typ.Characterized frequency range:1 Hz-1 GHzRecommended frequency range:10 Hz -500 MHzDifferential mode power rating:max.130 W up to 1 GHzDifferential mode voltage rating:max.225Vpp up to 1 GHzInsertion loss(S21,S12):0.1 dB up to 10 MHz,typ.0.2 dB up to 100 MHz,typ.0.6 dB up to 1 GHz,typ.Common mode rejection:60 dB up to 1 MHz,typ.30 dB up to 100 MHz,typ.10 dB up to 1 GHz,typ.Input retum loss (S11,S22):20 dB up to 1 GHz,typ.Common mode saturation current:500 mA,typ.RF connectors:50 Q N-female,Operating temp.range:0°C-60℃Enclosure dimensions:70mm×60mm×140mmWeight:350g1
