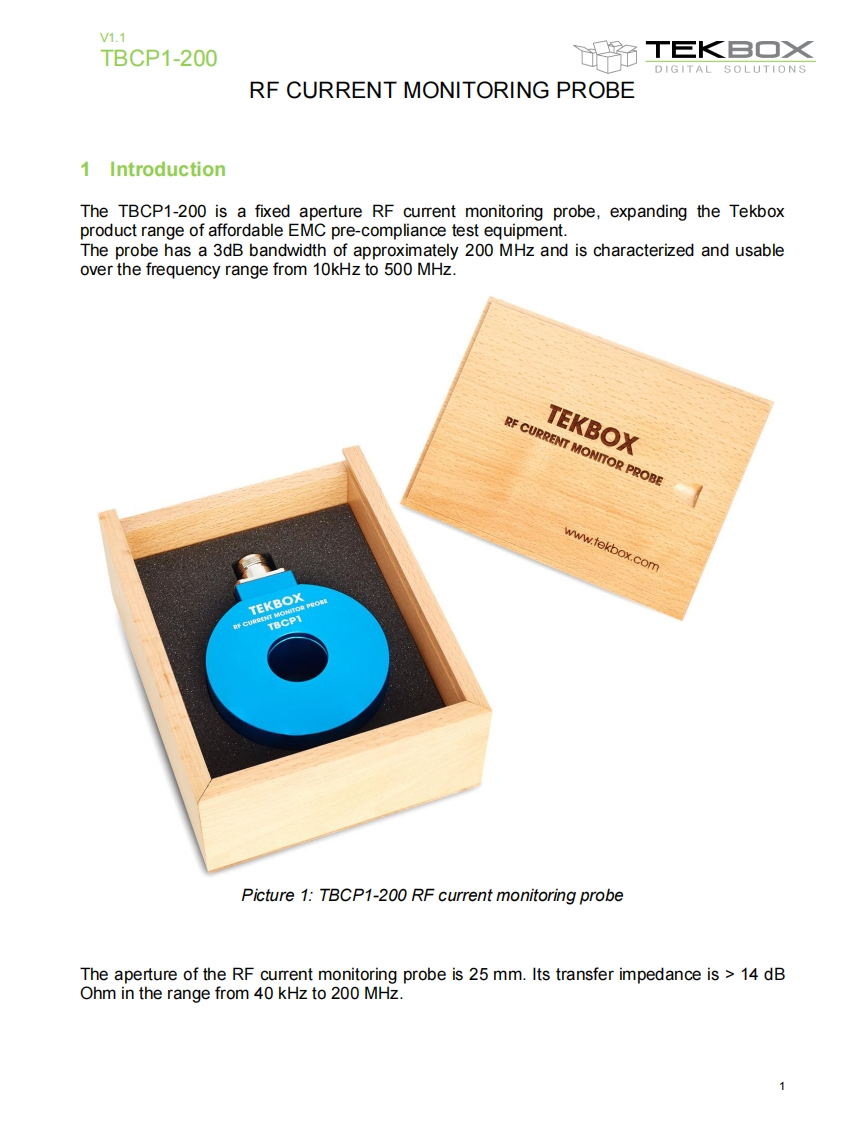

V1.1TBCP1-200腕T巨KB▣×DIGITAL SOLUTIONSRF CURRENT MONITORING PROBE1 IntroductionThe TBCP1-200 is a fixed aperture RF current monitoring probe,expanding the Tekboxproduct range of affordable EMC pre-compliance test equipment.The probe has a 3dB bandwidth of approximately 200 MHz and is characterized and usableover the frequency range from 10kHz to 500 MHz.TEKBOXRF CURRENT MONITOR PROBEwww.tekbox.comTEKBOXTBCP1Picture 1:TBCP1-200 RF current monitoring probeThe aperture of the RF current monitoring probe is 25 mm.Its transfer impedance is >14 dBOhm in the range from 40 kHz to 200 MHz.1
