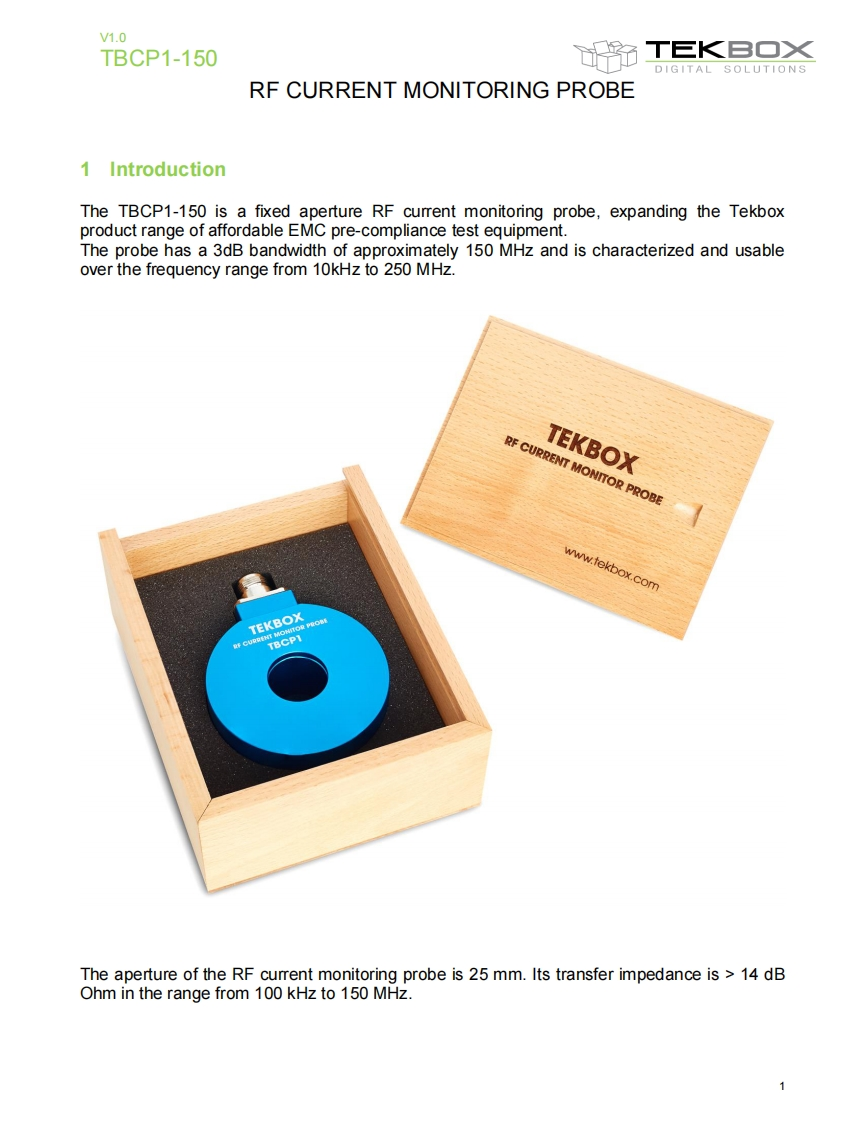

V1.0TBCP1-150腕T巨KB▣×DIGITAL SOLUTIONSRF CURRENT MONITORING PROBE1 IntroductionThe TBCP1-150 is a fixed aperture RF current monitoring probe,expanding the Tekboxproduct range of affordable EMC pre-compliance test equipment.The probe has a 3dB bandwidth of approximately 150 MHz and is characterized and usableover the frequency range from 10kHz to 250 MHz.TEKBOXRF CURRENT MONITOR PROBEwww.tekbox.comTEKBOXTBCP1The aperture of the RF current monitoring probe is 25 mm.Its transfer impedance is >14 dBOhm in the range from 100 kHz to 150 MHz.1
