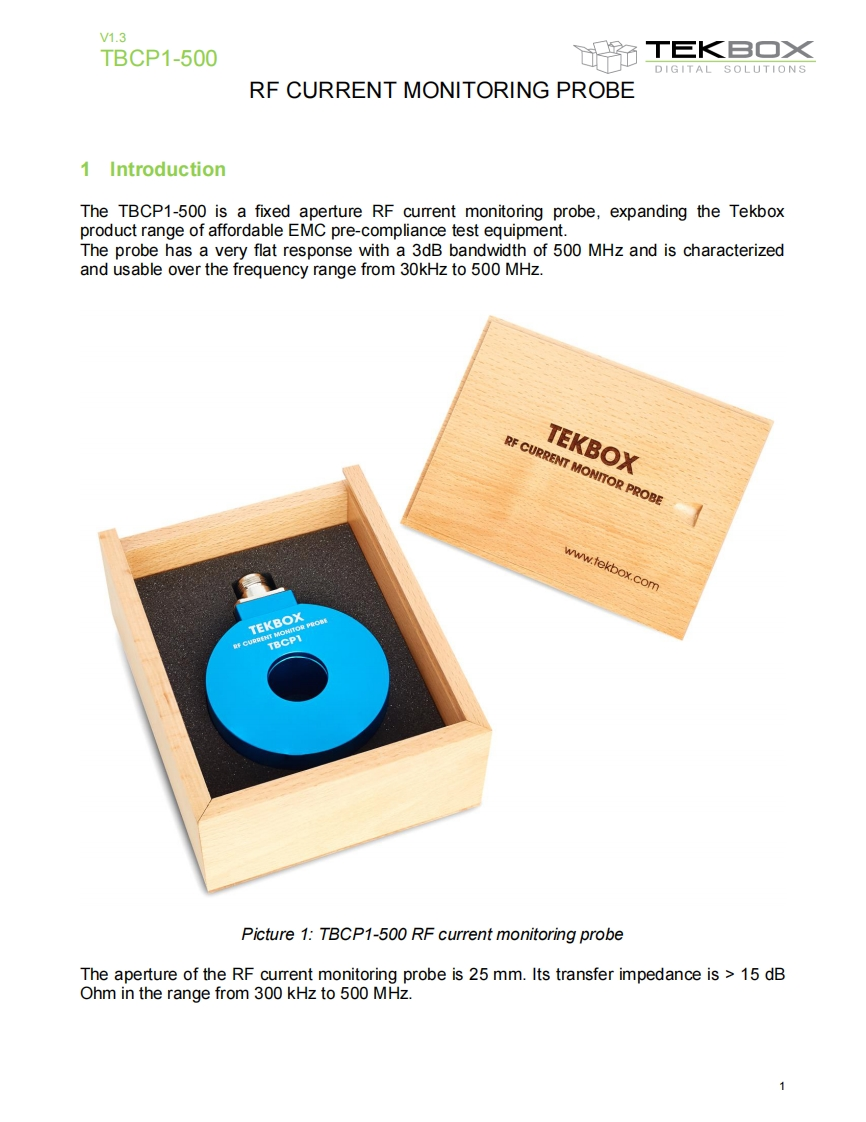

V1.3TBCP1-500腕T巨KB▣×DIGITAL SOLUTIONSRF CURRENT MONITORING PROBE1 IntroductionThe TBCP1-500 is a fixed aperture RF current monitoring probe,expanding the Tekboxproduct range of affordable EMC pre-compliance test equipment.The probe has a very flat response with a 3dB bandwidth of 500 MHz and is characterizedand usable over the frequency range from 30kHz to 500 MHz.TEKBOXRF CURRENT MONITOR PROBEwww.tekbox.comTEKBOXTBCP1Picture 1:TBCP1-500 RF current monitoring probeThe aperture of the RF current monitoring probe is 25 mm.Its transfer impedance is >15 dBOhm in the range from 300 kHz to 500 MHz.1
