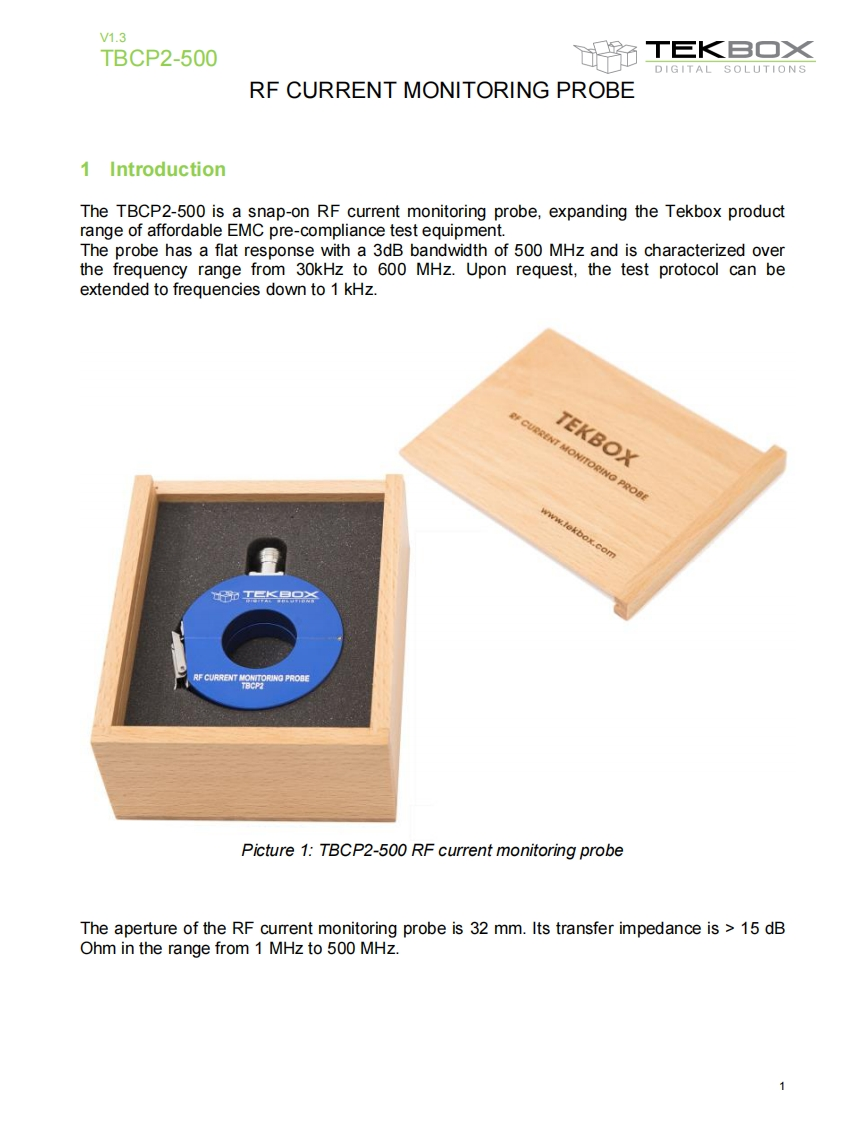

V1.3TBCP2-500腕T巨KB▣×DIGITAL SOLUTIONSRF CURRENT MONITORING PROBE1 IntroductionThe TBCP2-500 is a snap-on RF current monitoring probe,expanding the Tekbox productrange of affordable EMC pre-compliance test equipment.The probe has a flat response with a 3dB bandwidth of 500 MHz and is characterized overthe frequency range from 30kHz to 600 MHz.Upon request,the test protocol can beextended to frequencies down to 1 kHz.TEKBOXBF CURRENT MONITORINO PROBEwww.tokbox.commTk层2益RF CURRENTRN PROBEPicture 1:TBCP2-500 RF current monitoring probeThe aperture of the RF current monitoring probe is 32 mm.Its transfer impedance is 15 dBOhm in the range from 1 MHz to 500 MHz.1
