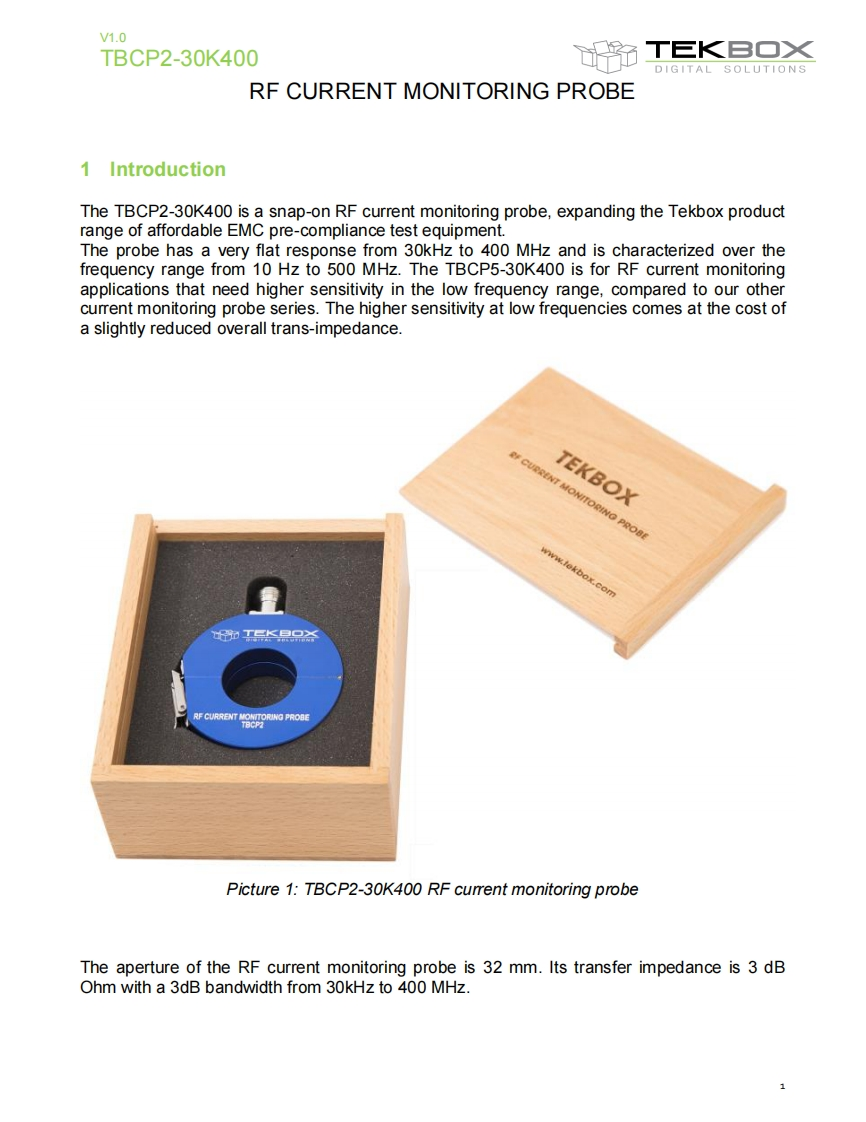

V1.0TBCP2-30K400腕T巨KB▣×DIGITAL SOLUTIONSRF CURRENT MONITORING PROBE1 IntroductionThe TBCP2-30K400 is a snap-on RF current monitoring probe,expanding the Tekbox productrange of affordable EMC pre-compliance test equipment.The probe has a very flat response from 30kHz to 400 MHz and is characterized over thefrequency range from 10 Hz to 500 MHz.The TBCP5-30K400 is for RF current monitoringapplications that need higher sensitivity in the low frequency range,compared to our othercurrent monitoring probe series.The higher sensitivity at low frequencies comes at the cost ofa slightly reduced overall trans-impedance.TEKBOXBF CURRENT MONITORINO PROBEwww.tokbox.com是2益F CURRENTNPROBEPicture 1:TBCP2-30K400 RF current monitoring probeThe aperture of the RF current monitoring probe is 32 mm.Its transfer impedance is 3 dBOhm with a 3dB bandwidth from 30kHz to 400 MHz.1
