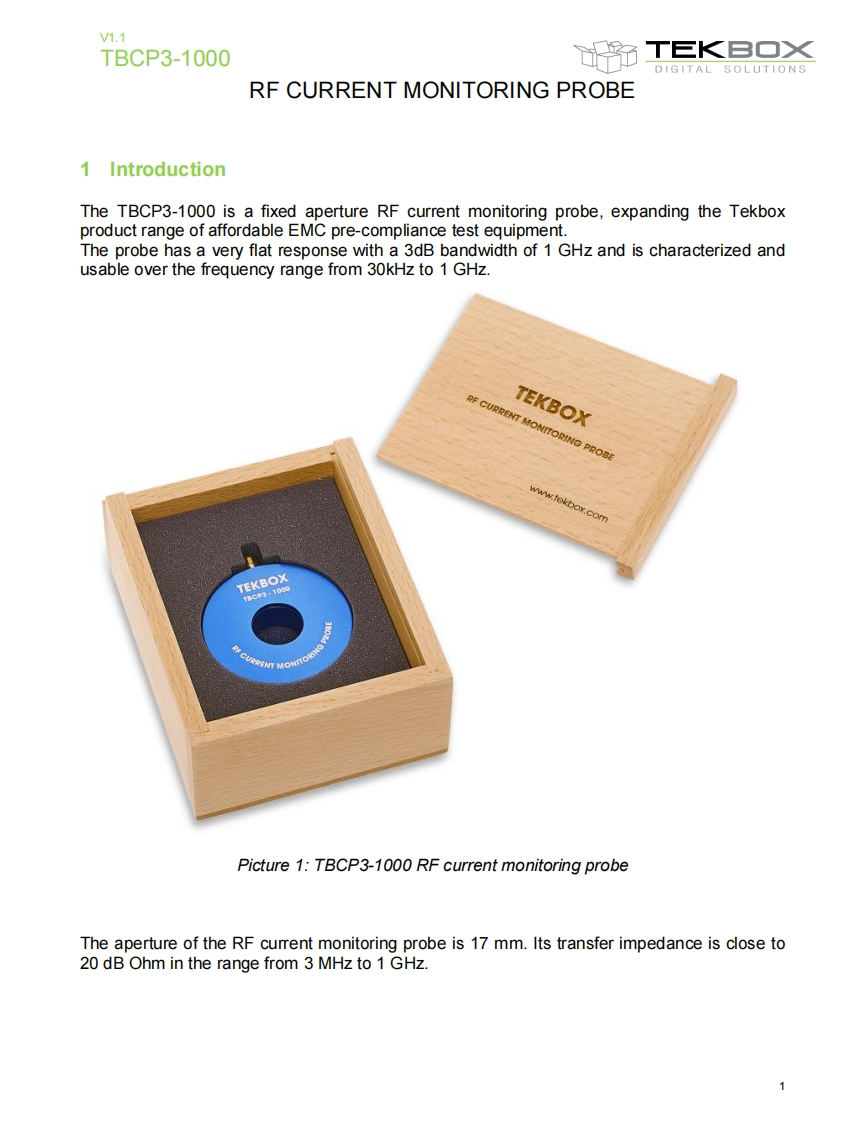

V1.1TBCP3-1000腕T巨KB▣XDIGITAL SOLUTIONSRF CURRENT MONITORING PROBE1 IntroductionThe TBCP3-1000 is a fixed aperture RF current monitoring probe,expanding the Tekboxproduct range of affordable EMC pre-compliance test equipment.The probe has a very flat response with a 3dB bandwidth of 1 GHz and is characterized andusable over the frequency range from 30kHz to 1 GHz.TEKBOXRF CURRENT MONITORING PROBEwww.tekbox.comTEKBOXPicture 1:TBCP3-1000 RF current monitoring probeThe aperture of the RF current monitoring probe is 17 mm.Its transfer impedance is close to20 dB Ohm in the range from 3 MHz to 1 GHz.1
