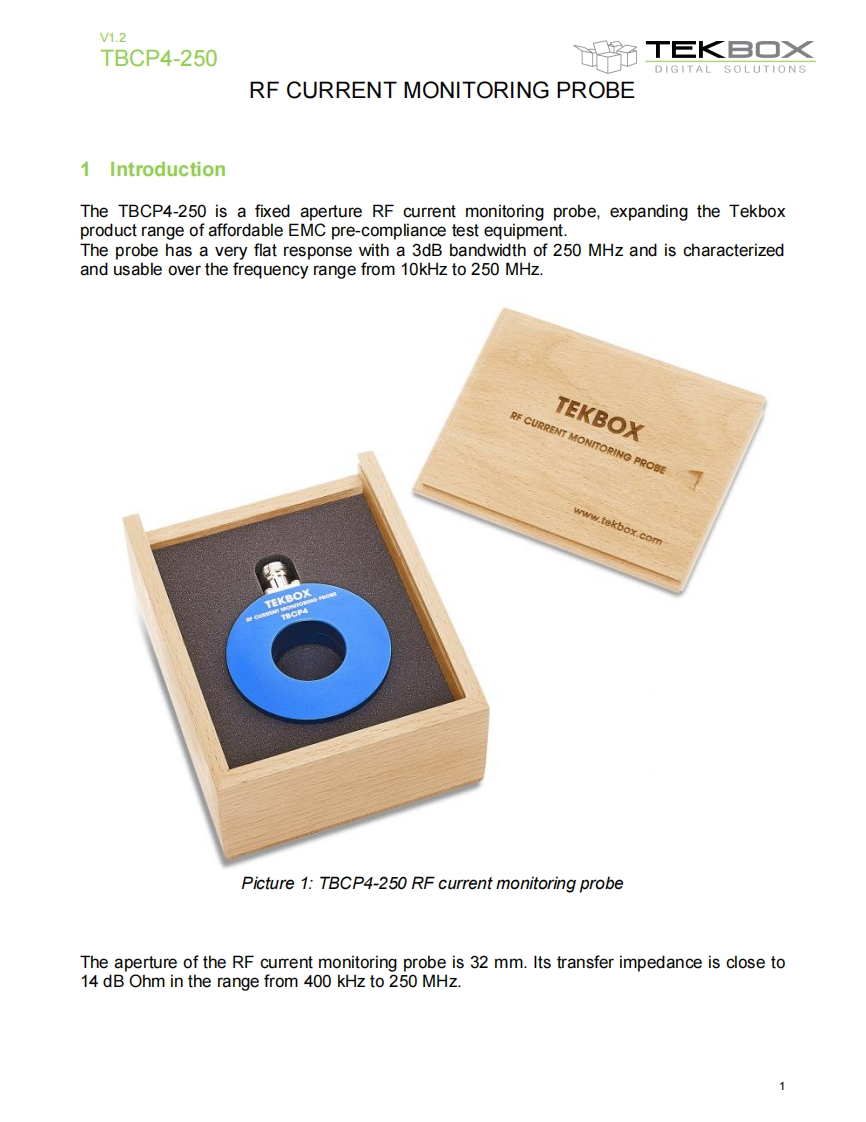

V1.2TBCP4-250腕T巨KB▣×DIGITAL SOLUTIONSRF CURRENT MONITORING PROBE1 IntroductionThe TBCP4-250 is a fixed aperture RF current monitoring probe,expanding the Tekboxproduct range of affordable EMC pre-compliance test equipment.The probe has a very flat response with a 3dB bandwidth of 250 MHz and is characterizedand usable over the frequency range from 10kHz to 250 MHz.TEKBOXRF CURRENT MONITORING PROBEwww.tekbox.comTEKBOX。Picture 1:TBCP4-250 RF current monitoring probeThe aperture of the RF current monitoring probe is 32 mm.Its transfer impedance is close to14 dB Ohm in the range from 400 kHz to 250 MHz.1
