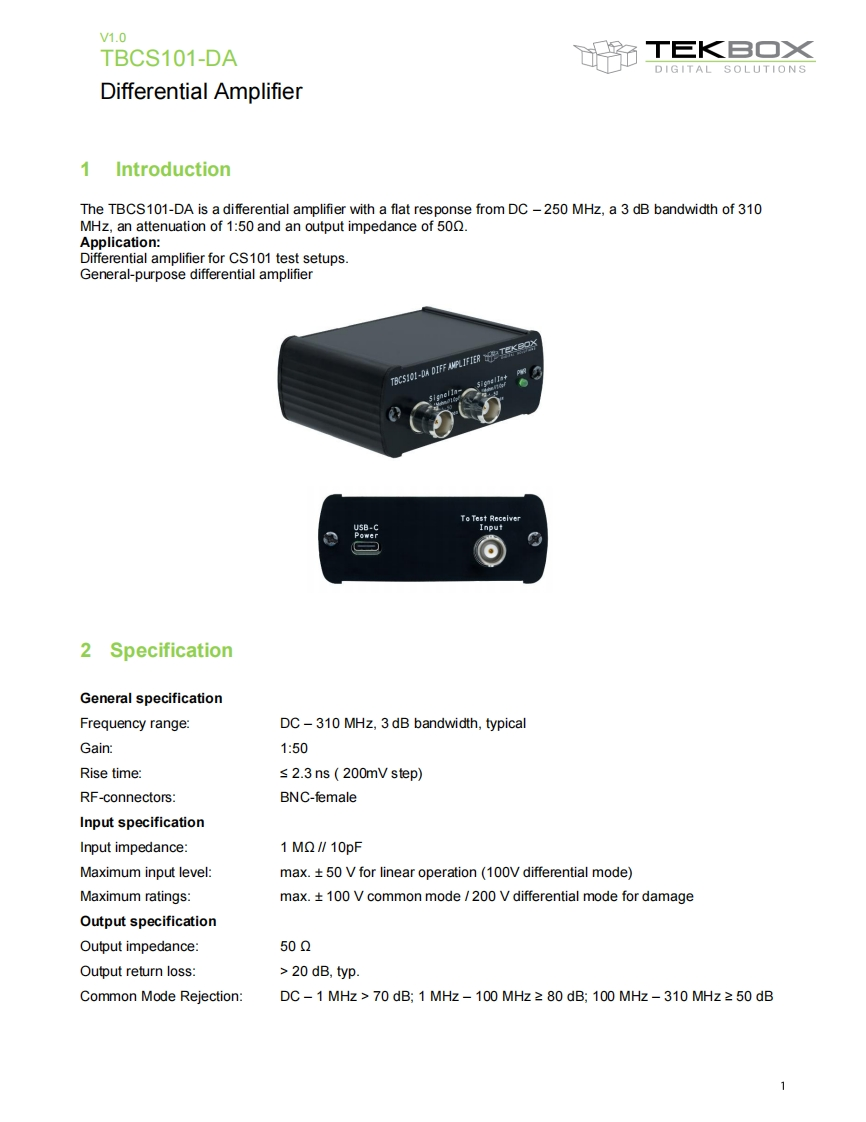

V1.0TBCS101-DAT巨KEO×DIGITAL SOLUTIONSDifferential Amplifier1IntroductionThe TBCS101-DA is a differential amplifier with a flat response from DC-250 MHz,a 3 dB bandwidth of 310MHz,an attenuation of 1:50 and an output impedance of 500.Application:Differential amplifier for CS101 test setups.General-purpose differential amplifierTo Test ReceiverInput2 SpecificationGeneral specificationFrequency range:DC -310 MHz,3 dB bandwidth,typicalGain:1:50Rise time:≤2.3ns(200 mV step)RF-connectors:BNC-femaleInput specificationInput impedance:1M2∥10pFMaximum input level:max.50 V for linear operation (100V differential mode)Maximum ratings:max.100 V common mode /200 V differential mode for damageOutput specificationOutput impedance:502Output return loss:20 dB,typ.Common Mode Rejection:DC -1 MHz 70 dB;1 MHz -100 MHz 2 80 dB;100 MHz -310 MHz 2 50 dB1
