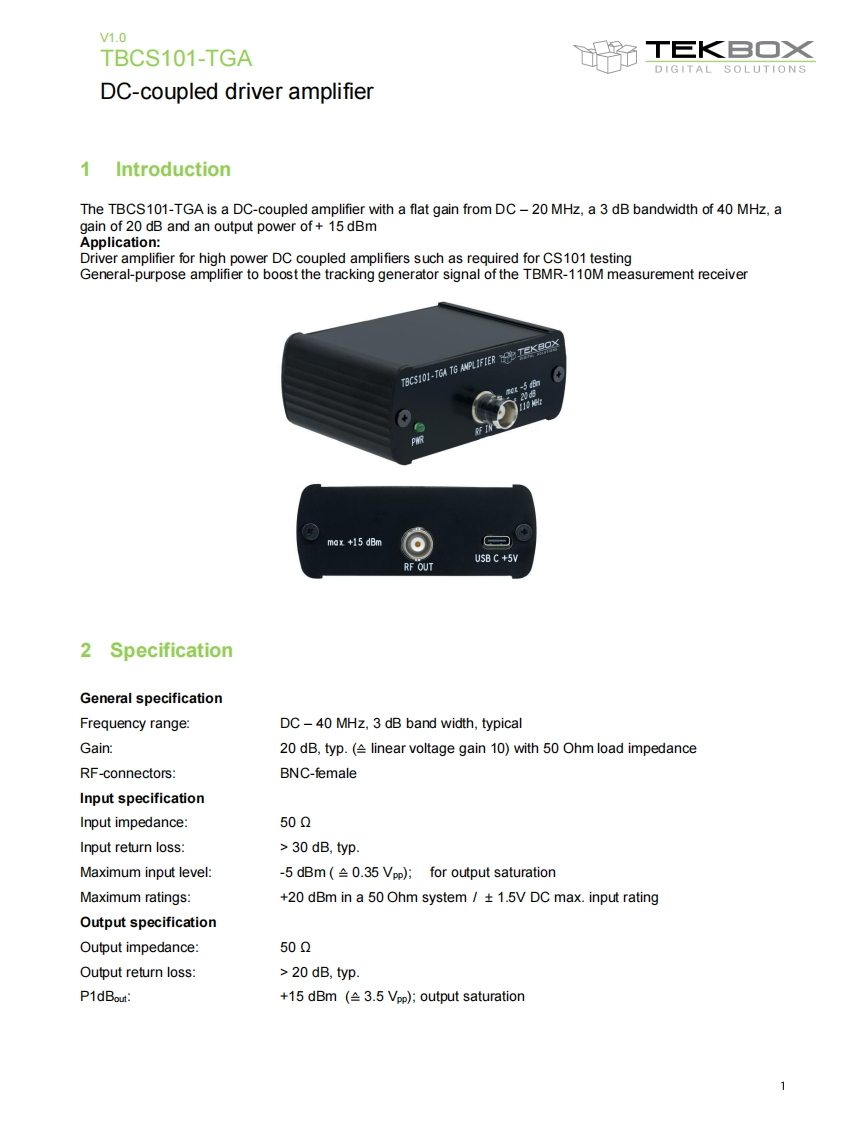

V1.0TBCS101-TGAT巨KEO×DIGITAL SOLUTIONSDC-coupled driver amplifier1IntroductionThe TBCS101-TGA is a DC-coupled amplifier with a flat gain from DC-20 MHz,a 3 dB bandwidth of 40 MHz,again of 20 dB and an output power of+15 dBmApplication:Driver amplifier for high power DC coupled amplifiers such as required for CS101 testingGeneral-purpose amplifier to boost the tracking generator signal of the TBMR-110M measurement receiverTBCS101-TGA TG AMPLIFTERmax +15 dBm3USB C+5VRF OUT2 SpecificationGeneral specificationFrequency range:DC-40 MHz,3 dB band width,typicalGain:20 dB,typ.linear voltage gain 10)with 50 Ohm load impedanceRF-connectors:BNC-femaleInput specificationInput impedance:500Input return loss:30 dB,typ.Maximum input level:-5 dBm (0.35 Vpp);for output saturationMaximum ratings:+20 dBm in a 50 Ohm system 1.5V DC max.input ratingOutput specificationOutput impedance:500Output return loss:20 dB,typ.P1dBout:+15 dBm (3.5 Vpp);output saturation
