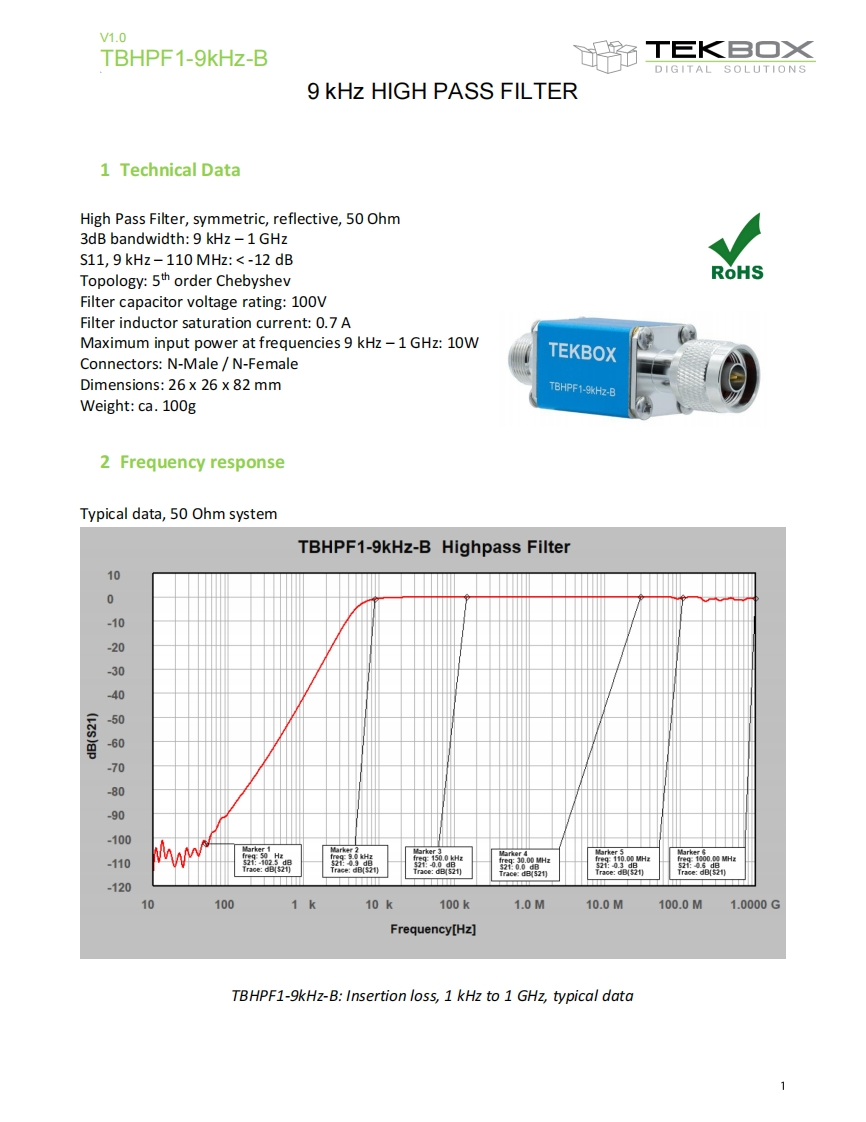

V1.0TBHPF1-9kHz-BT巨K旦O×DIGITAL SOLUTIONS9 kHz HIGH PASS FILTER1 Technical DataHigh Pass Filter,symmetric,reflective,50 Ohm3dB bandwidth:9 kHz-1 GHz$11,9 kHz-110 MHz:<-12 dBTopology:5th order ChebyshevRoHSFilter capacitor voltage rating:100VFilter inductor saturation current:0.7 AMaximum input power at frequencies 9 kHz-1 GHz:10WTEKBOXConnectors:N-Male N-FemaleDimensions:26 x 26 x 82 mmTBHPF1-9KHz-BWeight:ca.100g2 Frequency responseTypical data,50 Ohm systemTBHPF1-9kHz-B Highpass Filter100-10-20-3040(10-50曾-60-70-80-90-100-110-120101001 k10k100k1.0M10.0M100.0M1.0000GFrequency[Hz]TBHPF1-9kHz-B:Insertion loss,1 kHz to 1 GHz,typical data1
