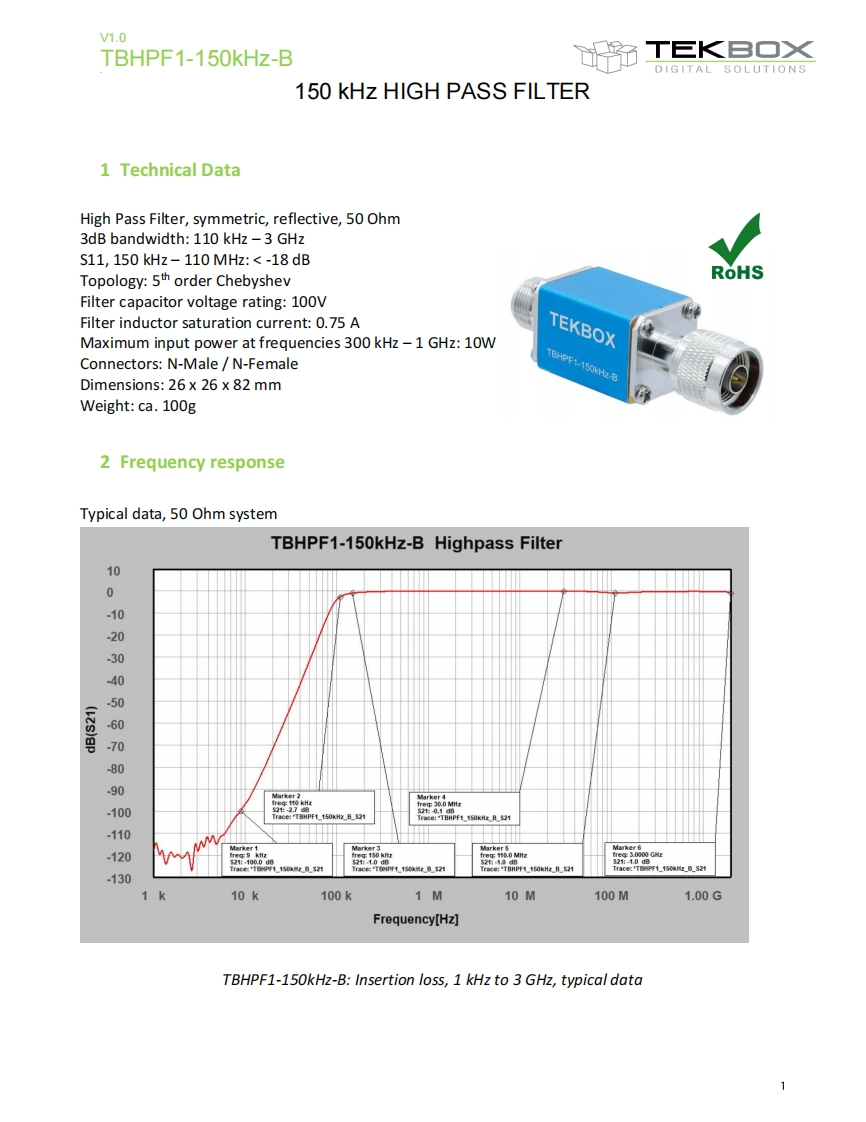

V1.0TBHPF1-150kHz-BT巨K旦O×DIGITAL SOLUTIONS150 kHz HIGH PASS FILTER1 Technical DataHigh Pass Filter,symmetric,reflective,50 Ohm3dB bandwidth:110 kHz-3 GHzS11,150kHz-110MHz:<-18dBTopology:5th order ChebyshevRoHSFilter capacitor voltage rating:100VFilter inductor saturation current:0.75 AMaximum input power at frequencies 300 kHz-1 GHz:10WTEKBOXConnectors:N-Male N-FemaleTBHPF1-150KHZ-BDimensions:26 x 26 x 82 mmWeight:ca.100g2 Frequency responseTypical data,50 Ohm systemTBHPF1-150kHz-B Highpass Filter100-10-20-304050-60-7080-90100-110-120288Trace:"TBPF1_150H_B_S21-130110k100k1M10M100M1.00GFrequency[Hz]TBHPF1-150kHz-B:Insertion loss,1 kHz to 3 GHz,typical data1
