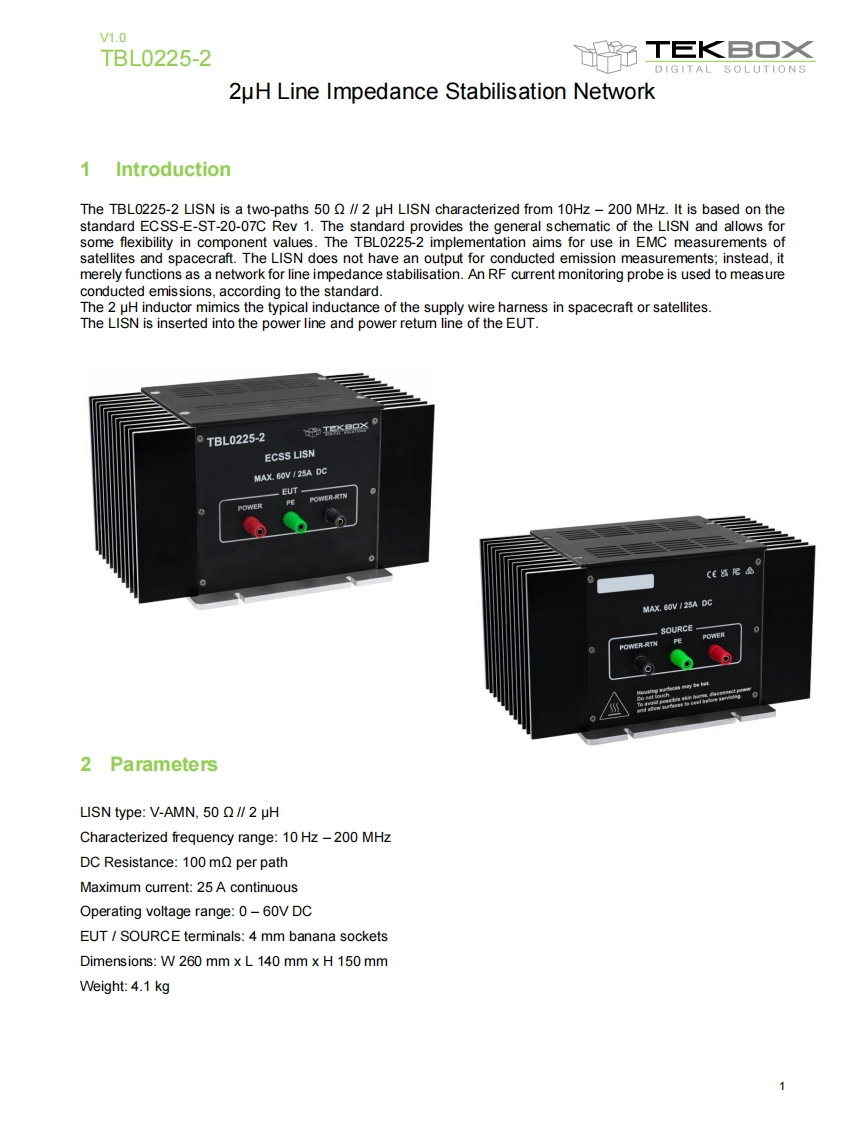

V1.0TBL0225-2T巨KEO×DIGITAL SOLUTIONS2uH Line Impedance Stabilisation Network1IntroductionThe TBL0225-2 LISN is a two-paths 50 Q//2 uH LISN characterized from 10Hz-200 MHz.It is based on thestandard ECSS-E-ST-20-07C Rev 1.The standard provides the general schematic of the LISN and allows forsome flexibility in component values.The TBL0225-2 implementation aims for use in EMC measurements ofsatellites and spacecraft.The LISN does not have an output for conducted emission measurements;instead,itmerely functions as a network for line impedance stabilisation.An RF current monitoring probe is used to measureconducted emissions,according to the standard.The 2 uH inductor mimics the typical inductance of the supply wire harness in spacecraft or satellites.The LISN is inserted into the power line and power retum line of the EUT.0TBL0225-2歌路ECSS LISNMAX.60V/25A DC-EUT-POWERPEOWE月TN(e括E△MAX.60V/25A DC一SOURCEPOWER-RTN2 ParametersLISN type:V-AMN,502∥2μHCharacterized frequency range:10 Hz-200 MHzDC Resistance:100 m per pathMaximum current:25 A continuousOperating voltage range:0-60V DCEUT SOURCE terminals:4 mm banana socketsDimensions:W 260 mm x L 140 mm x H 150 mmWeight:4.1 kg1
