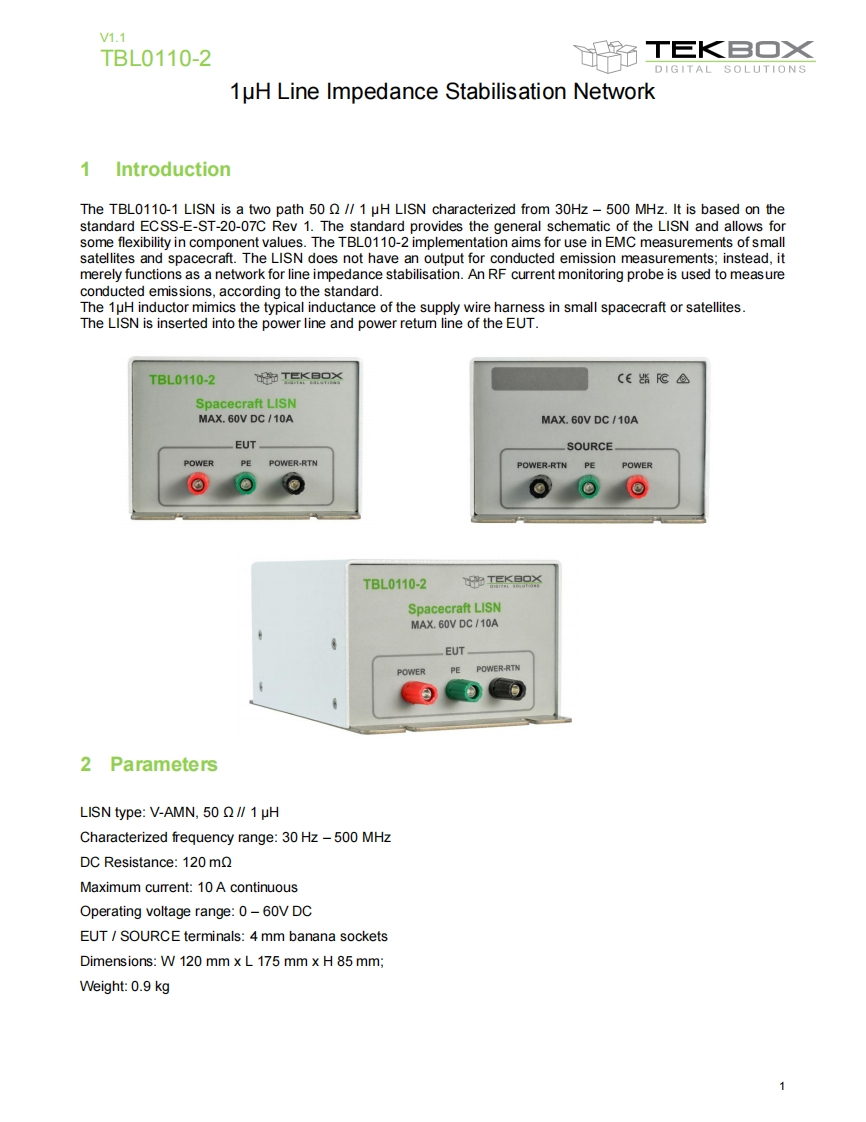

V1.1TBL0110-2T巨K旦O×DIGITAL SOLUTIONS1uH Line Impedance Stabilisation Network1IntroductionThe TBL0110-1 LISN is a two path 50 Q /1 uH LISN characterized from 30Hz -500 MHz.It is based on thestandard ECSS-E-ST-20-07C Rev 1.The standard provides the general schematic of the LISN and allows forsome flexibility in component values.The TBL0110-2 implementation aims for use in EMC measurements of smallsatellites and spacecraft.The LISN does not have an output for conducted emission measurements;instead,itmerely functions as a network for line impedance stabilisation.An RF current monitoring probe is used to measureconducted emissions,according to the standard.The 1uH inductor mimics the typical inductance of the supply wire harness in small spacecraft or satellites.The LISN is inserted into the power line and power retum line of the EUT.TBL0110-2物TEkXCE当爬@Spacecraft LISNMAX.60V DC/10AMAX.60V DC /10AEUT_SOURCEPOWERPEPOWER-RTNPOWER-RTNPEPOWERTBL0110-2的TEKBOXSpacecraft LISNMAX.60V DC /10AEUT-POWERPEPOWER-RTN2 ParametersLISN type:V-AMN,502∥1μHCharacterized frequency range:30 Hz-500 MHzDC Resistance:120 mMaximum current:10 A continuousOperating voltage range:0-60V DCEUT SOURCE terminals:4 mm banana socketsDimensions:W 120 mm x L 175 mm x H 85 mm;Weight:0.9 kg1
