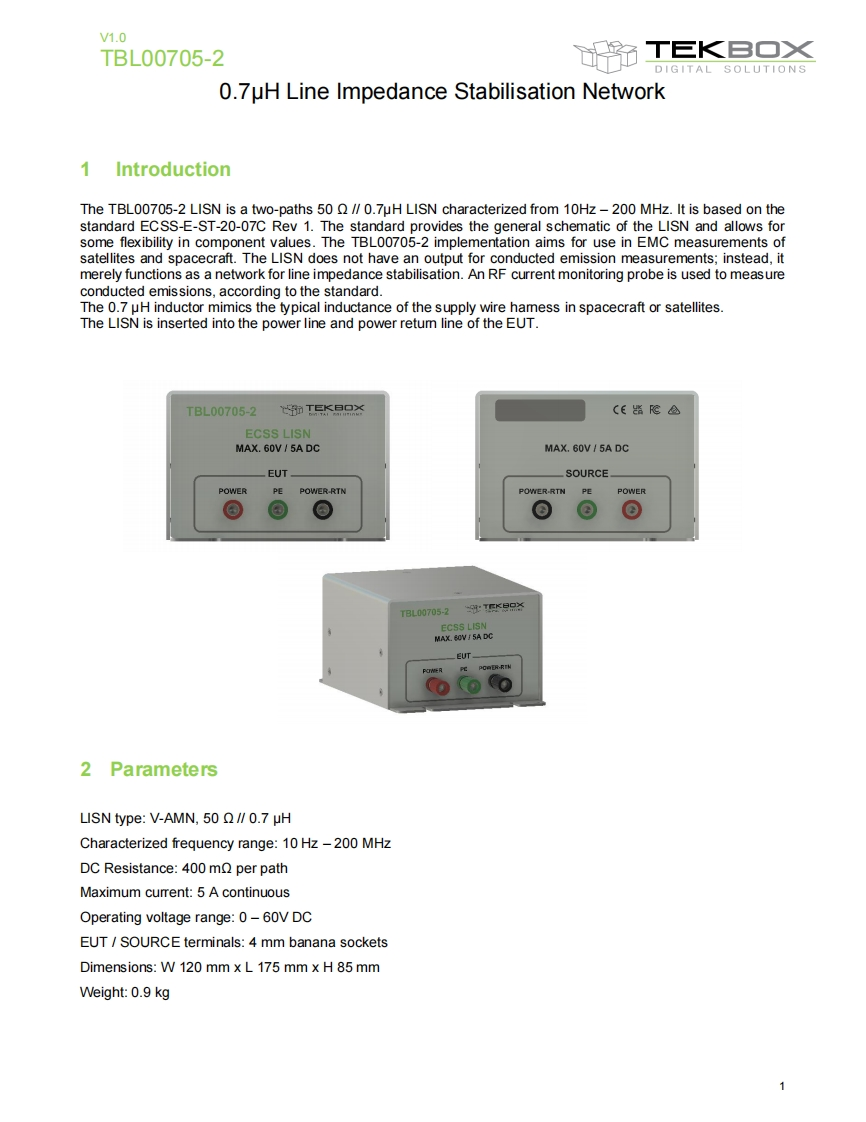

V1.0TBL00705-2畅T巨K旦O×DIGITAL SOLUTIONS0.7uH Line Impedance Stabilisation Network1IntroductionThe TBL00705-2 LISN is a two-paths 50 Q//0.7uH LISN characterized from 10Hz-200 MHz.It is based on thestandard ECSS-E-ST-20-07C Rev 1.The standard provides the general schematic of the LISN and allows forsome flexibility in component values.The TBL00705-2 implementation aims for use in EMC measurements ofsatellites and spacecraft.The LISN does not have an output for conducted emission measurements;instead,itmerely functions as a network for line impedance stabilisation.An RF current monitoring probe is used to measureconducted emissions,according to the standard.The 0.7 uH inductor mimics the typical inductance of the supply wire hamess in spacecraft or satellites.The LISN is inserted into the power line and power retum line of the EUT.TBL00705-2mTEK日口×CE监爬AECSS LISNMAX.60V /5A DCMAX.60V/5A DCEUT-_SOURCEPOWERPEPOWER-RTNPOWER-RTN PEPOWERTBL00705-2TEKB9XECSS LISNMAX.B0V I 5A DCEUT-2 ParametersLISN type:V-AMN,50 Q//0.7 uHCharacterized frequency range:10 Hz -200 MHzDC Resistance:400 m per pathMaximum current:5 A continuousOperating voltage range:0-60V DCEUT SOURCE terminals:4 mm banana socketsDimensions:W 120 mm x L 175 mm x H 85 mmWeight:0.9 kg1
