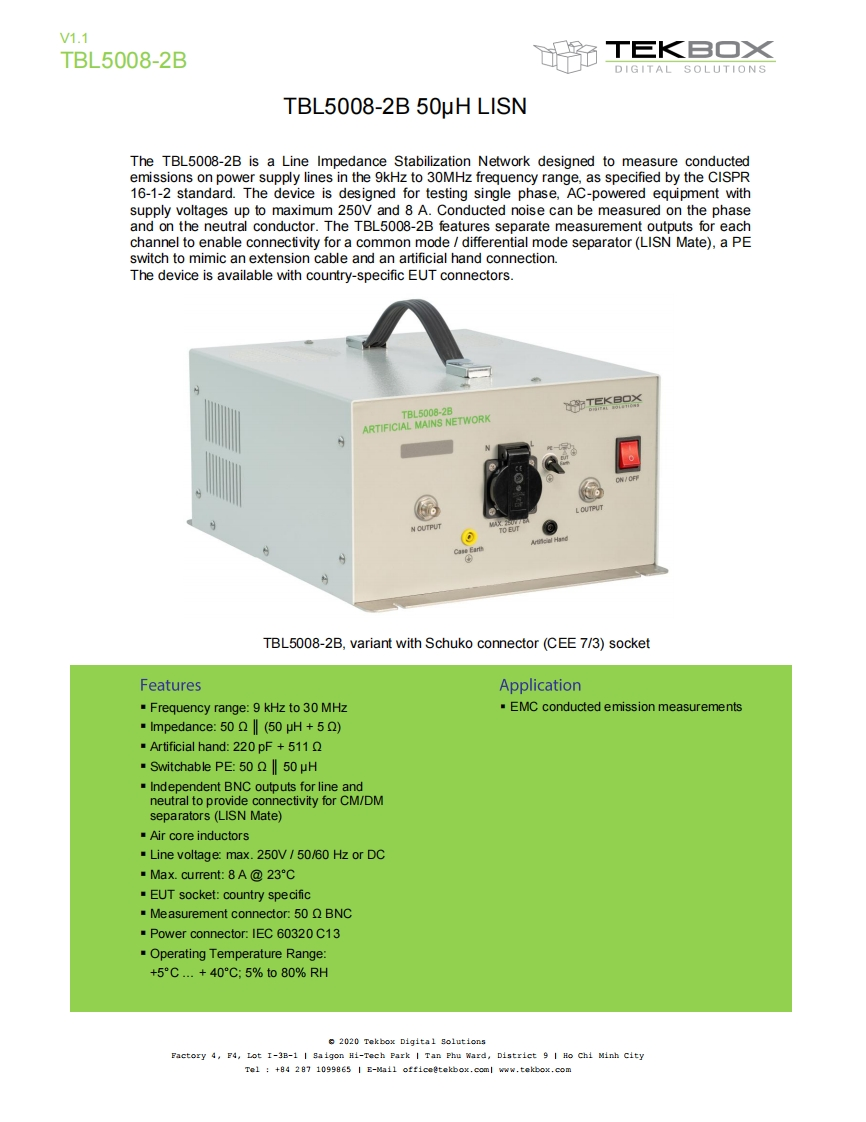

V1.1TBL5008-2BT三KBO×DIGITAL SOLUTIONSTBL5008-2B 50uH LISNThe TBL5008-2B is a Line Impedance Stabilization Network designed to measure conductedemissions on power supply lines in the 9kHz to 30MHz frequency range,as specified by the CISPR16-1-2 standard.The device is designed for testing single phase,AC-powered equipment withsupply voltages up to maximum 250V and 8 A.Conducted noise can be measured on the phaseand on the neutral conductor.The TBL5008-2B features separate measurement outputs for eachchannel to enable connectivity for a common mode differential mode separator(LISN Mate),a PEswitch to mimic an extension cable and an artificial hand connection.The device is available with country-specific EUT connectors.TBL5008-28TEK9O然ARTIFICIAL MAINS NETWORKTBL5008-2B,variant with Schuko connector(CEE 7/3)socketFeaturesApplication.Frequency range:9 kHz to 30 MHz.EMC conducted emission measurements·Impedance:50n‖(50uH+5).Artificial hand:220 pF +511Q·Switchable PE:50n‖50μHIndependent BNC outputs for line andneutral to provide connectivity for CM/DMseparators (LISN Mate)"Air core inductors.Line voltage:max.250V /50/60 Hz or DC·Max.current::8A@23C.EUT socket:country specificMeasurement connector:50 Q BNCPower connector:IEC 60320 C13Operating Temperature Range:+5°C..+40°C:5%to80%RH2020 Tekbox Digital SolutionsFactory 4,F4,Lot I-3B-1 I Saigon Hi-Tech Park I Tan Phu Ward,District 9 I Ho Chi Minh CityTel +84 287 1099865 I E-Mail office@tekbox.coml www.tekbox.com
