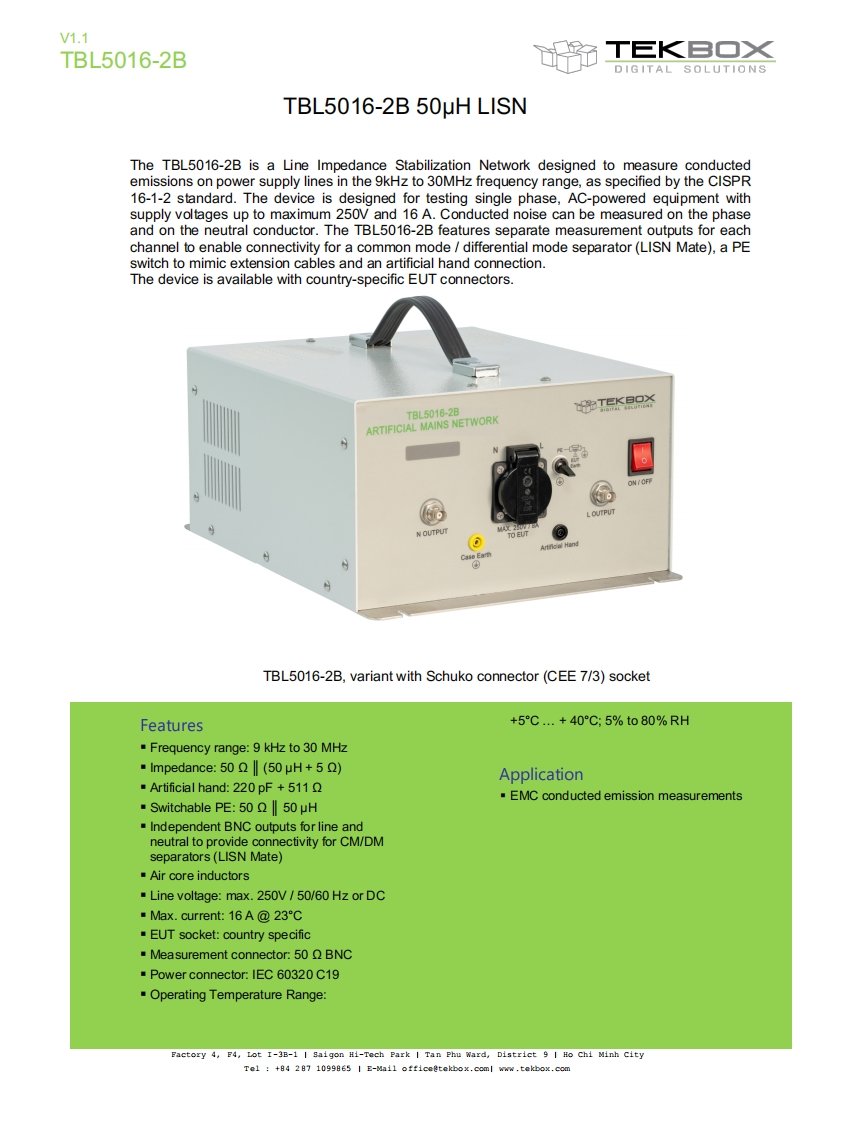

V1.1TBL5016-2BTEKBOXDIGITAL SOLUTIONSTBL5016-2B 50uH LISNThe TBL5016-2B is a Line Impedance Stabilization Network designed to measure conductedemissions on power supply lines in the 9kHz to 30MHz frequency range,as specified by the CISPR16-1-2 standard.The device is designed for testing single phase,AC-powered equipment withsupply voltages up to maximum 250V and 16 A.Conducted noise can be measured on the phaseand on the neutral conductor.The TBL5016-2B features separate measurement outputs for eachchannel to enable connectivity for a common mode differential mode separator(LISN Mate),a PEswitch to mimic extension cables and an artificial hand connection.The device is available with country-specific EUT connectors.TBL5016-2BTEKB9XARTIFICIAL MAINS NETWORKN OUTPU9TBL5016-2B,variant with Schuko connector(CEE 7/3)socketFeatures+5℃..+40°C:5%to80%RH.Frequency range:9 kHz to 30 MHz·Impedance:502‖(50μH+5)Application.Artificial hand:220 pF +511Q.EMC conducted emission measurements·Switchable PE:5050μHIndependent BNC outputs for line andneutral to provide connectivity for CM/DMseparators(LISN Mate)"Air core inductorsLine voltage:max.250V /50/60 Hz or DCMax.current:16A@23CEUT socket:country specific"Measurement connector:50 BNC*Power connector:IEC 60320 C19.Operating Temperature Range:Factory 4,F4,Lot I-3B-1 I Saigon Hi-Tech Park I Tan Phu Ward,District 9 I Ho Chi Minh CityTel +84 287 1099865 I E-Mail office@tekbox.coml www.tekbox.com
