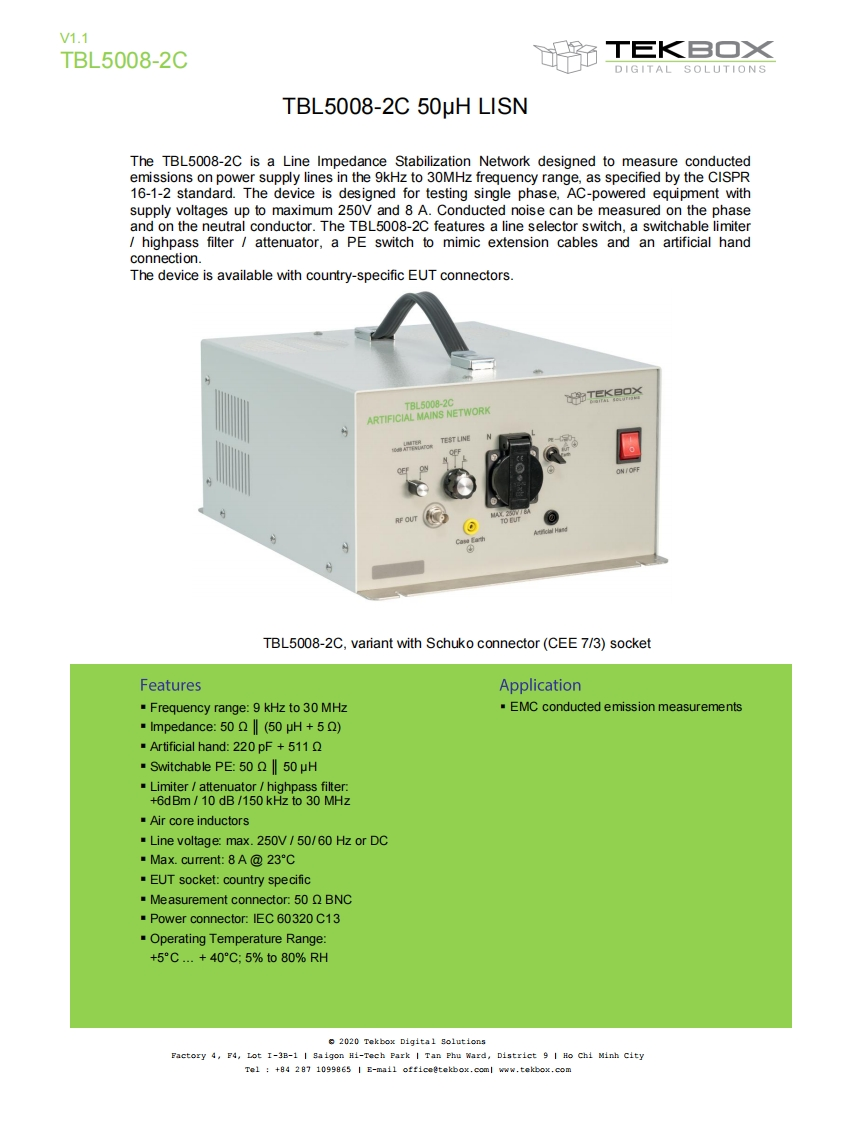

V1.1TBL5008-2CT三KBO×DIGITAL SOLUTIONSTBL5008-2C 50uH LISNThe TBL5008-2C is a Line Impedance Stabilization Network designed to measure conductedemissions on power supply lines in the 9kHz to 30MHz frequency range,as specified by the CISPR16-1-2 standard.The device is designed for testing single phase,AC-powered equipment withsupply voltages up to maximum 250V and 8 A.Conducted noise can be measured on the phaseand on the neutral conductor.The TBL5008-2C features a line selector switch,a switchable limiterhighpass filter attenuator,a PE switch to mimic extension cables and an artificial handconnection.The device is available with country-specific EUT connectors.TBL5008-2CTEK99XARTIFICIAL MAINS NETWORKTEST LINEON /OFFTBL5008-2C,variant with Schuko connector(CEE 7/3)socketFeaturesApplicationFrequency range:9 kHz to 30 MHz.EMC conducted emission measurements·Impedance:50n‖(50uH+5).Artificial hand:220 pF +511Q·Switchable PE:502‖50μHLimiter attenuator highpass filter:+6dBm 10 dB/150 kHz to 30 MHz"Air core inductors"Line voltage:max.250V/50/60 Hz or DC·Max.current:8A@23cEUT socket:country specificMeasurement connector:50 BNCPower connector:IEC 60320 C13Operating Temperature Range:+5C..+40C:5%to80%RH2020 Tekbox Digital SolutionsFactory 4,F4,Lot I-3B-1 I Saigon Hi-Tech Park I Tan Phu Ward,District 9 I Ho Chi Minh CityTel +84 287 1099865 I E-mail office@tekbox.coml www.tekbox.com
