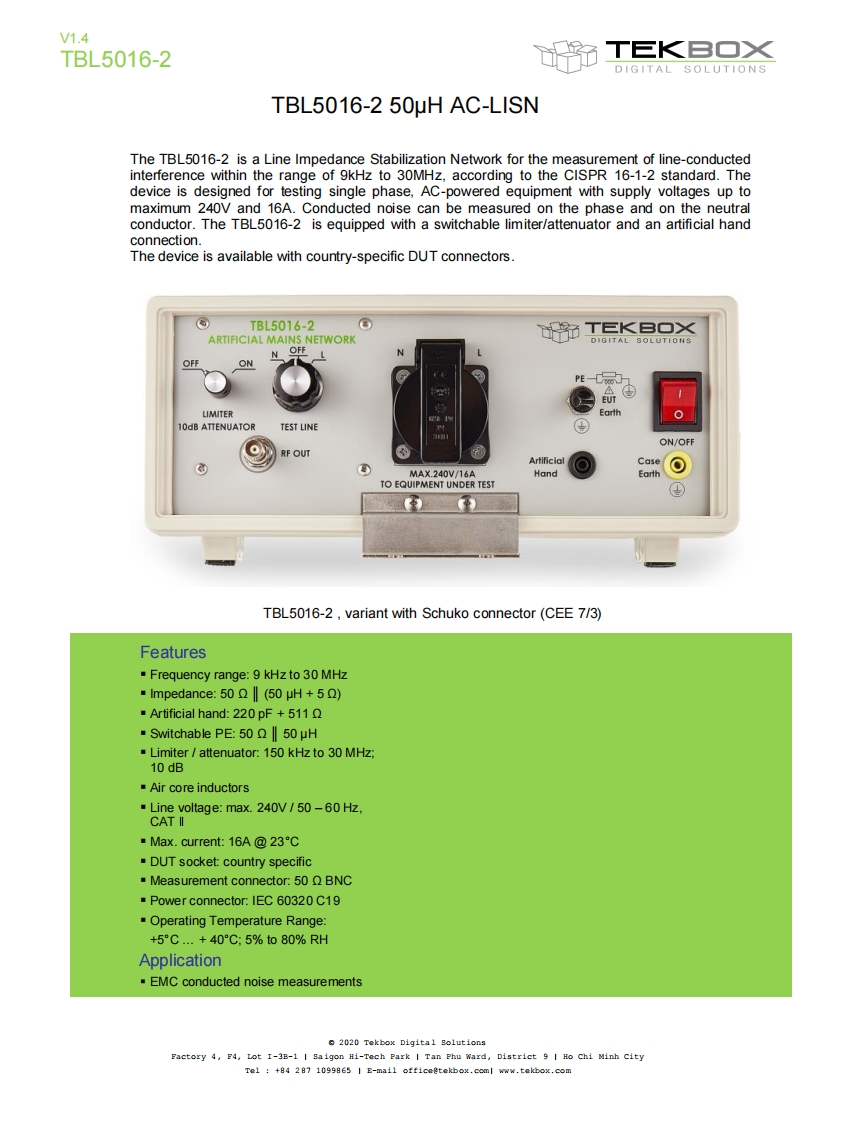

V1.4TBL5016-2布T巨KBOXDIGITAL SOLUTIONSTBL5016-2 50uH AC-LISNThe TBL5016-2 is a Line Impedance Stabilization Network for the measurement of line-conductedinterference within the range of 9kHz to 30MHz,according to the CISPR 16-1-2 standard.Thedevice is designed for testing single phase,AC-powered equipment with supply voltages up tomaximum 240V and 16A.Conducted noise can be measured on the phase and on the neutralconductor.The TBL5016-2 is equipped with a switchable limiter/attenuator and an artificial handconnection.The device is available with country-specific DUT connectors.TBL5016-2ARTIFICIAL MAINS NETWORK饰TkB只N OFFNOFFONPE-LIMITEREarth10dB ATTENUATORTEST LINEON/OFFRF OUTArtificiaCasedMAX.240V/16AHandEarthTO EQUIPMENT UNDER TESTTBL5016-2,variant with Schuko connector(CEE 7/3)FeaturesFrequency range:9 kHz to 30 MHz·mpedance:50‖(50μH+5).Artificial hand:220 pF +511Q·Switchable PE:50‖50μH.Limiter attenuator:150 kHz to 30 MHz;10 dB·Air core inductorsLine voltage:max.240V /50-60 Hz,CAT IMax.current:16A@23C.DUT socket:country specificMeasurement connector:50 Q BNCPower connector:IEC 60320 C19.Operating Temperature Range:+5°C..+40°C,5%to80%RHApplication.EMC conducted noise measurements2020 Tekbox Digital SolutionsFactory 4,F4,Lot I-3B-1 I Saigon Hi-Tech Park I Tan Phu Ward,District9I Ho Chi Minh cityTel +84 287 1099865 I E-mail office@tekbox.coml www.tekbox.com
