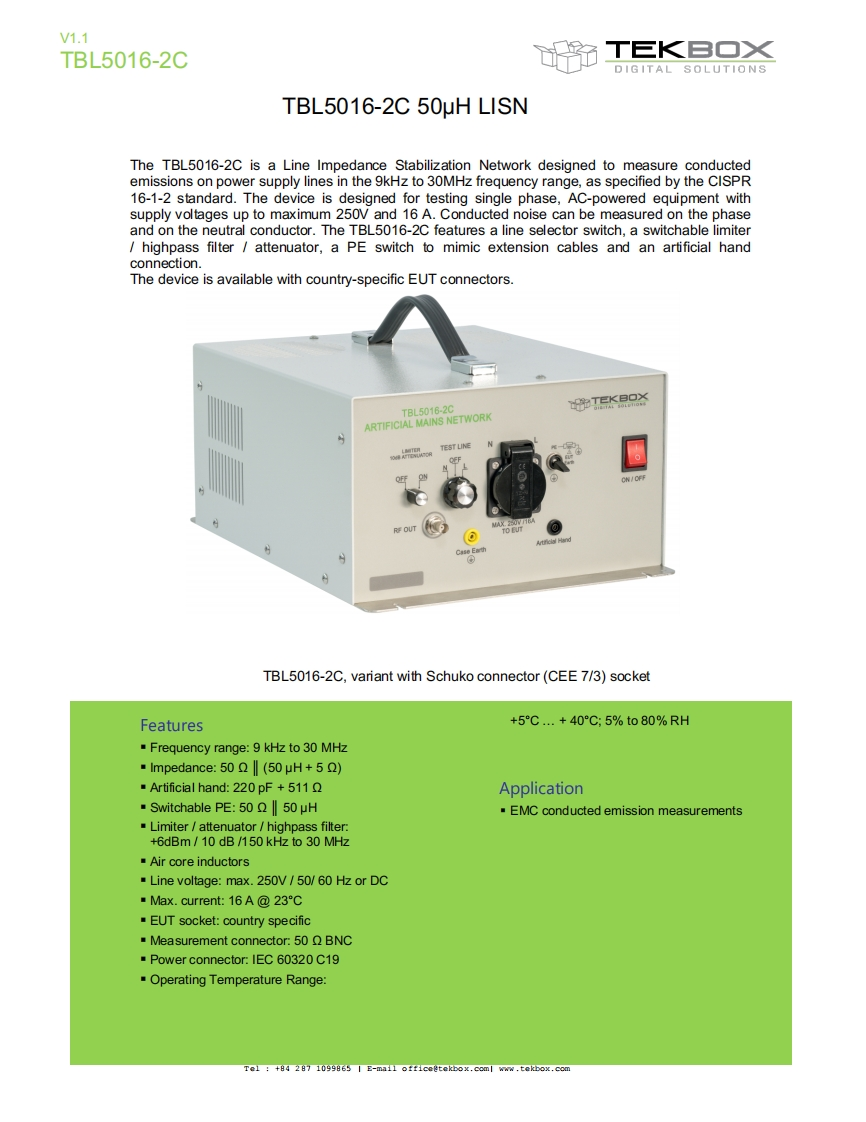

V1.1TBL5016-2C0 TEKBO×DIGITAL SOLUTIONSTBL5016-2C 50uH LISNThe TBL5016-2C is a Line Impedance Stabilization Network designed to measure conductedemissions on power supply lines in the 9kHz to 30MHz frequency range,as specified by the CISPR16-1-2 standard.The device is designed for testing single phase,AC-powered equipment withsupply voltages up to maximum 250V and 16 A.Conducted noise can be measured on the phaseand on the neutral conductor.The TBL5016-2C features a line selector switch,a switchable limiterhighpass filter attenuator,a PE switch to mimic extension cables and an artificial handconnection.The device is available with country-specific EUT connectors.TBL5016-2CTEKBOXARTIFICIAL MAINS NETWORKTEST LNERE OUTMAXD EUTTBL5016-2C,variant with Schuko connector(CEE 7/3)socketFeatures+5℃..+40°C:5%to80%RH.Frequency range:9 kHz to 30 MHz·Impedance:502‖(50μH+5).Artificial hand:220 pF +511QApplication·Switchable PE:50‖50μHEMC conducted emission measurementsLimiter/attenuator/highpass filter:+6dBm/10 dB/150 kHz to 30 MHz■Air core inductorsLine voltage:max.250V /50/60 Hz or DCMax.current:16A@23C.EUT socket:country specific"Measurement connector:50 BNC"Power connector:IEC 60320 C19.Operating Temperature Range:Tel +84 287 1099865 I E-mail officeetekbox.coml www tekbox.com
