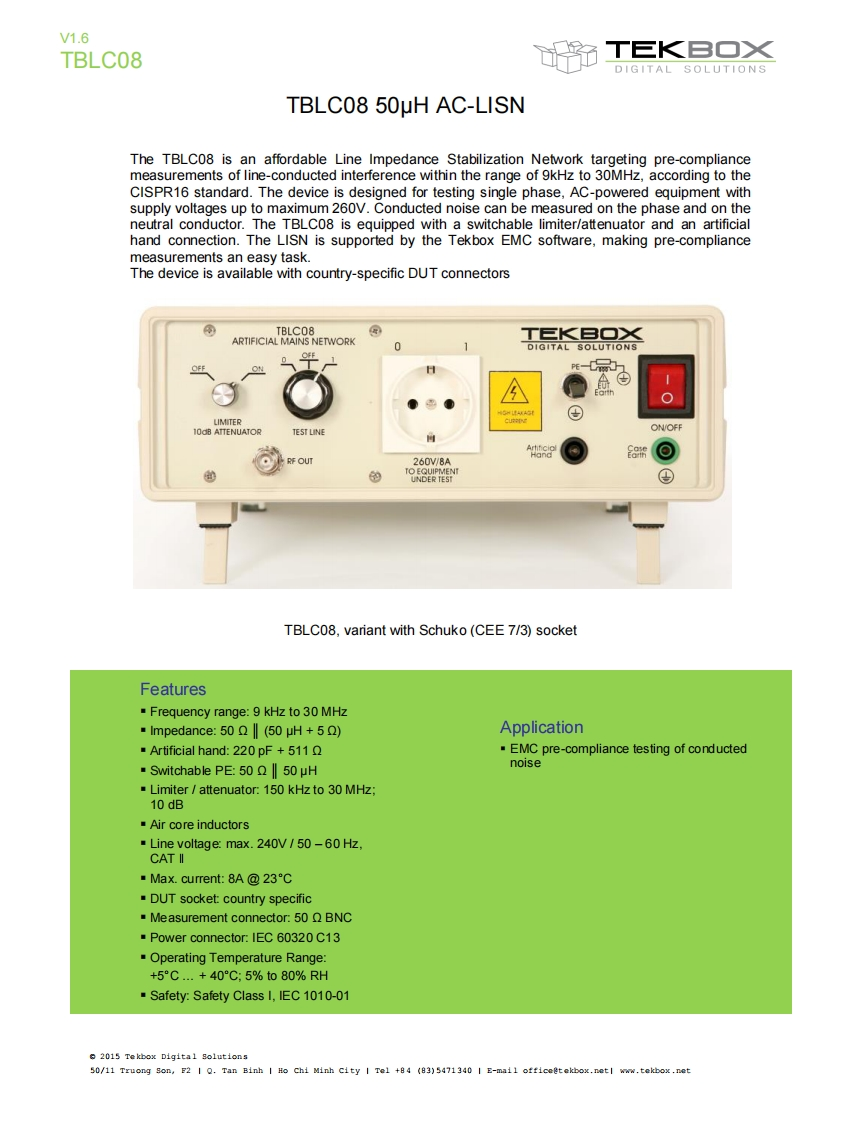

V1.6TBLC08TEKBOXDIGITAL SOLUTIONSTBLC08 50uH AC-LISNThe TBLC08 is an affordable Line Impedance Stabilization Network targeting pre-compliancemeasurements of line-conducted interference within the range of 9kHz to 30MHz,according to theCISPR16 standard.The device is designed for testing single phase,AC-powered equipment withsupply voltages up to maximum 260V.Conducted noise can be measured on the phase and on theneutral conductor.The TBLC08 is equipped with a switchable limiter/attenuator and an artificialhand connection.The LISN is supported by the Tekbox EMC software,making pre-compliancemeasurements an easy task.The device is available with country-specific DUT connectorsTBLC08ARTIFICIAL MAINS NETWORKT三KB▣XDIGITAL SOLUTIONSLIMITER10dB AITENUATORTEST L山NEON/OFF⊙RF OUT260V/8ATBLC08,variant with Schuko(CEE 7/3)socketFeaturesFrequency range:9 kHz to 30 MHz·Impedance:50n‖(50μH+5)ApplicationArtificial hand:220 pF +511Q"EMC pre-compliance testing of conducted·Switchable PE:50‖50μHnoiseLimiter attenuator:150 kHz to 30 MHz:10 dB"Air core inductorsLine voltage:max.240V /50-60 Hz.CAT II·Max.current::8A@23C.DUT socket:country specificMeasurement connector:50 Q BNCPower connector:IEC 60320 C13.Operating Temperature Range:+5°C..+40°C,5%to80%RH.Safety:Safety Class I,IEC 1010-012015 Tekbox Digital Solutions50/11 Truong Son,F2 I Q.Tan Binh I Ho Chi Minh city I Tel +84 (83)5471340 I E-mail office@tekbox.netI www.tekbox.net
