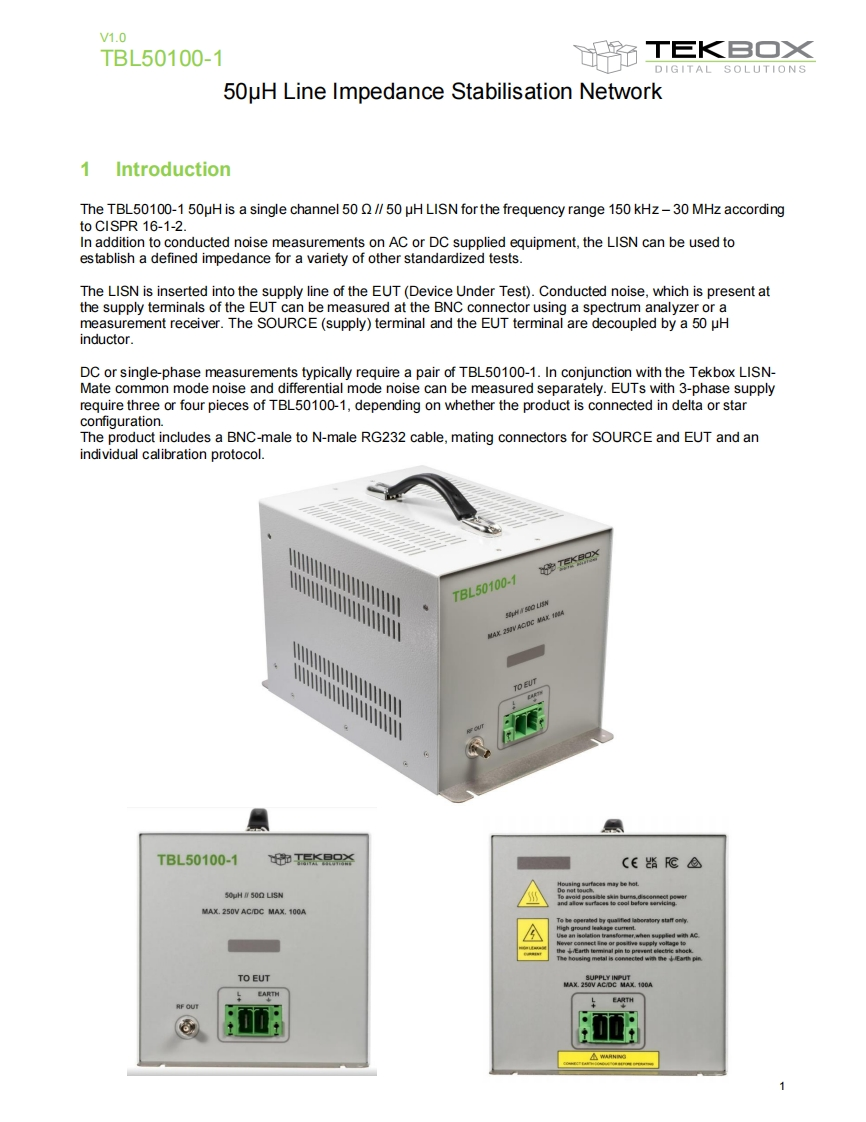

V1.0TBL50100-1畅T巨K旦口×DIGITAL SOLUTIONS50uH Line Impedance Stabilisation Network1 IntroductionThe TBL50100-1 50uH is a single channel 50 Q//50 uH LISN for the frequency range 150 kHz-30 MHz accordingto CISPR 16-1-2.In addition to conducted noise measurements on AC or DC supplied equipment,the LISN can be used toestablish a defined impedance for a variety of other standardized tests.The LISN is inserted into the supply line of the EUT(Device Under Test).Conducted noise,which is present atthe supply teminals of the EUT can be measured at the BNC connector using a spectrum analyzer or ameasurement receiver.The SOURCE(supply)terminal and the EUT terminal are decoupled by a 50 uHinductor.DC or single-phase measurements typically require a pair of TBL50100-1.In conjunction with the Tekbox LISN-Mate common mode noise and differential mode noise can be measured separately.EUTs with 3-phase supplyrequire three or four pieces of TBL50100-1,depending on whether the product is connected in delta or starconfiguration.The product includes a BNC-male to N-male RG232 cable,mating connectors for SOURCE and EUT and anindividual calibration protocol.水aa必TBL50100-1LISNMAX 2SIV ACDC MAX***tWWWWWWWWWWWTBL50100-1的k2(E监e@S0uH 50Q LISNMAX.250V AC/DC MAX.100ATO EUTMAX VACOCMA1RF OUT
