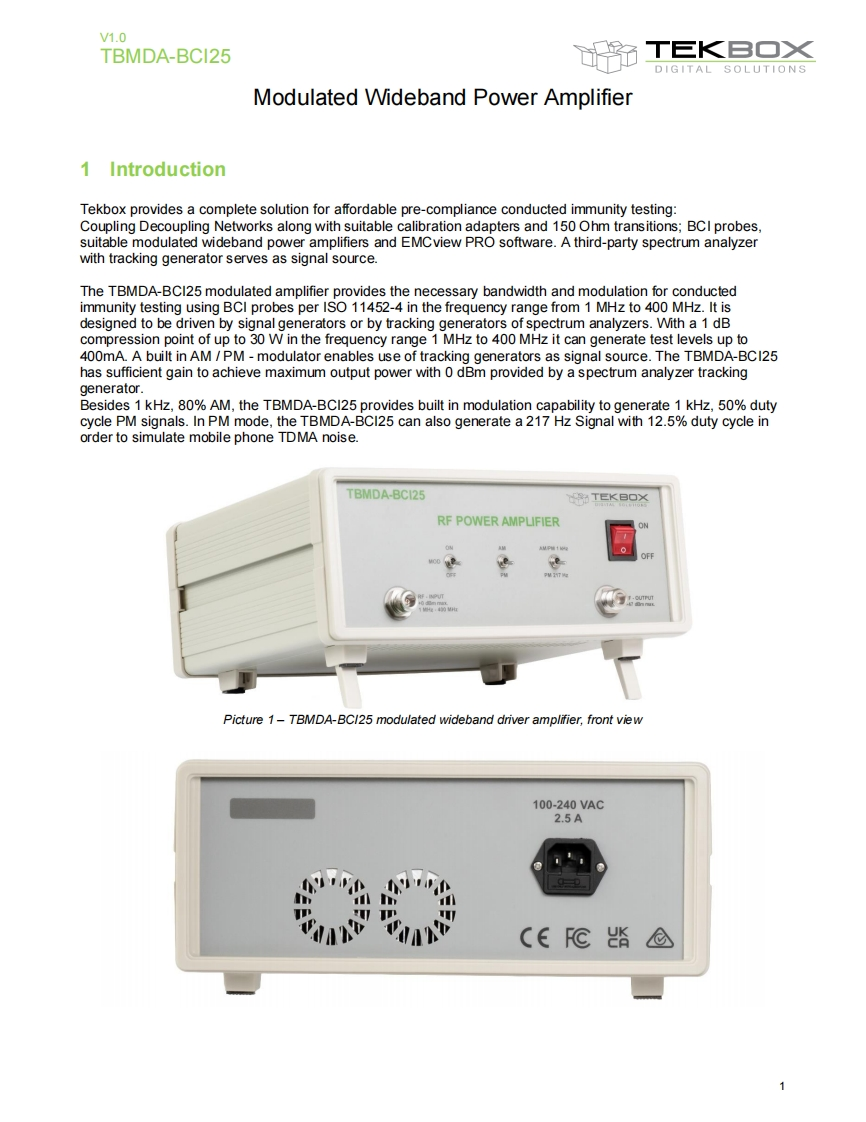

V1.0TBMDA-BC125阳T巨KEO×DIGITAL SOLUTIONSModulated Wideband Power Amplifier1 IntroductionTekbox provides a complete solution for affordable pre-compliance conducted immunity testing:Coupling Decoupling Networks along with suitable calibration adapters and 150 Ohm transitions;BCI probes.suitable modulated wideband power amplifiers and EMCview PRO software.A third-party spectrum analyzerwith tracking generator serves as signal source.The TBMDA-BCI25 modulated amplifier provides the necessary bandwidth and modulation for conductedimmunity testing using BCI probes per ISO 11452-4 in the frequency range from 1 MHz to 400 MHz.It isdesigned to be driven by signal generators or by tracking generators of spectrum analyzers.With a 1 dBcompression point of up to 30 W in the frequency range 1 MHz to 400 MHz it can generate test levels up to400mA.A built in AM /PM-modulator enables use of tracking generators as signal source.The TBMDA-BCI25has sufficient gain to achieve maximum output power with 0 dBm provided by a spectrum analyzer trackinggenerator.Besides 1 kHz,80%AM,the TBMDA-BCI25 provides built in modulation capability to generate 1 kHz,50%dutycycle PM signals.In PM mode,the TBMDA-BCI25 can also generate a 217 Hz Signal with 12.5%duty cycle inorder to simulate mobile phone TDMA noise.TBMDA-BC125阳TEK日O×RF POWER AMPLIFIERONOFF0M17Picture 1-TBMDA-BCI25 modulated wideband driver amplifier,front view100-240VAC2.5AmiATCE FC1
