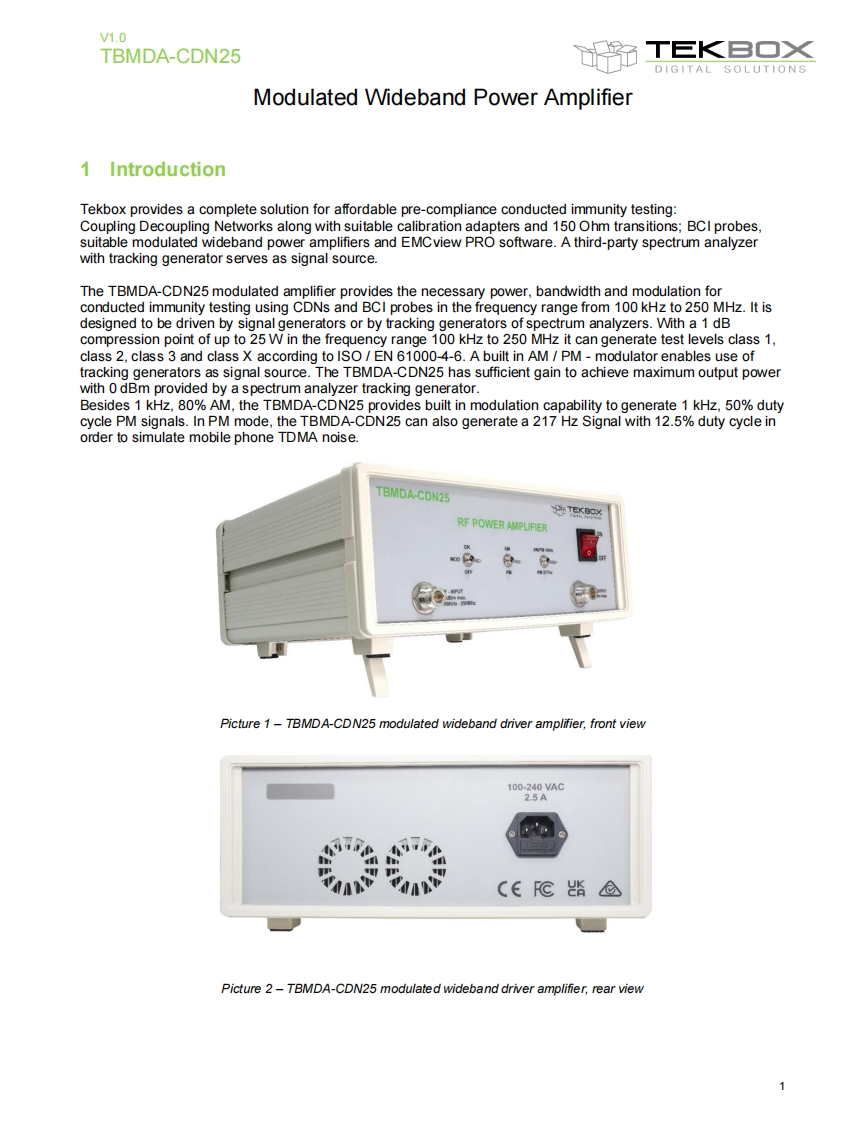

V1.0TBMDA-CDN25布T巨K旦口×DIGITAL SOLUTIONSModulated Wideband Power Amplifier1 IntroductionTekbox provides a complete solution for affordable pre-compliance conducted immunity testing:Coupling Decoupling Networks along with suitable calibration adapters and 150 Ohm transitions;BCI probes,suitable modulated wideband power amplifiers and EMCview PRO software.A third-party spectrum analyzerwith tracking generator serves as signal source.The TBMDA-CDN25 modulated amplifier provides the necessary power,bandwidth and modulation forconducted immunity testing using CDNs and BCI probes in the frequency range from 100 kHz to 250 MHz.It isdesigned to be driven by signal generators or by tracking generators of spectrum analyzers.With a 1 dBcompression point of up to 25 W in the frequency range 100 kHz to 250 MHz it can generate test levels class 1,class 2,class 3 and class X according to ISO EN 61000-4-6.A built in AM PM-modulator enables use oftracking generators as signal source.The TBMDA-CDN25 has sufficient gain to achieve maximum output powerwith 0 dBm provided by a spectrum analyzer tracking generator.Besides 1 kHz,80%AM,the TBMDA-CDN25 provides built in modulation capability to generate 1 kHz,50%dutycycle PM signals.In PM mode,the TBMDA-CDN25 can also generate a 217 Hz Signal with 12.5%duty cycle inorder to simulate mobile phone TDMA noise.TBMDA-CDN25动TgKXRF POWER AMPUFIERPicture 1-TBMDA-CDN25 modulated wideband driver amplifier,front view100-240VAC2.5Ann0AAWaCEe监@Picture 2-TBMDA-CDN25 modulated wideband driver amplifier,rear view1
